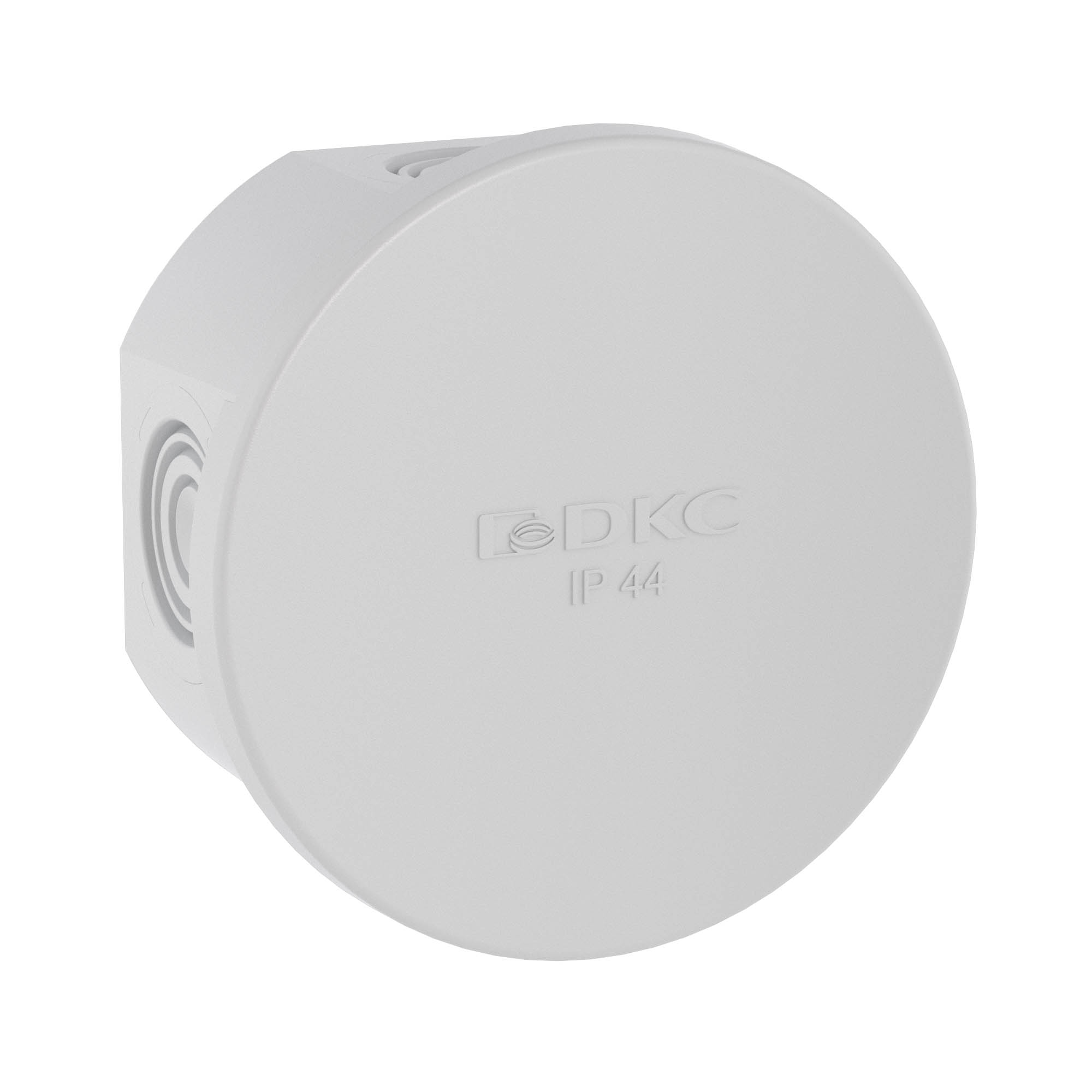

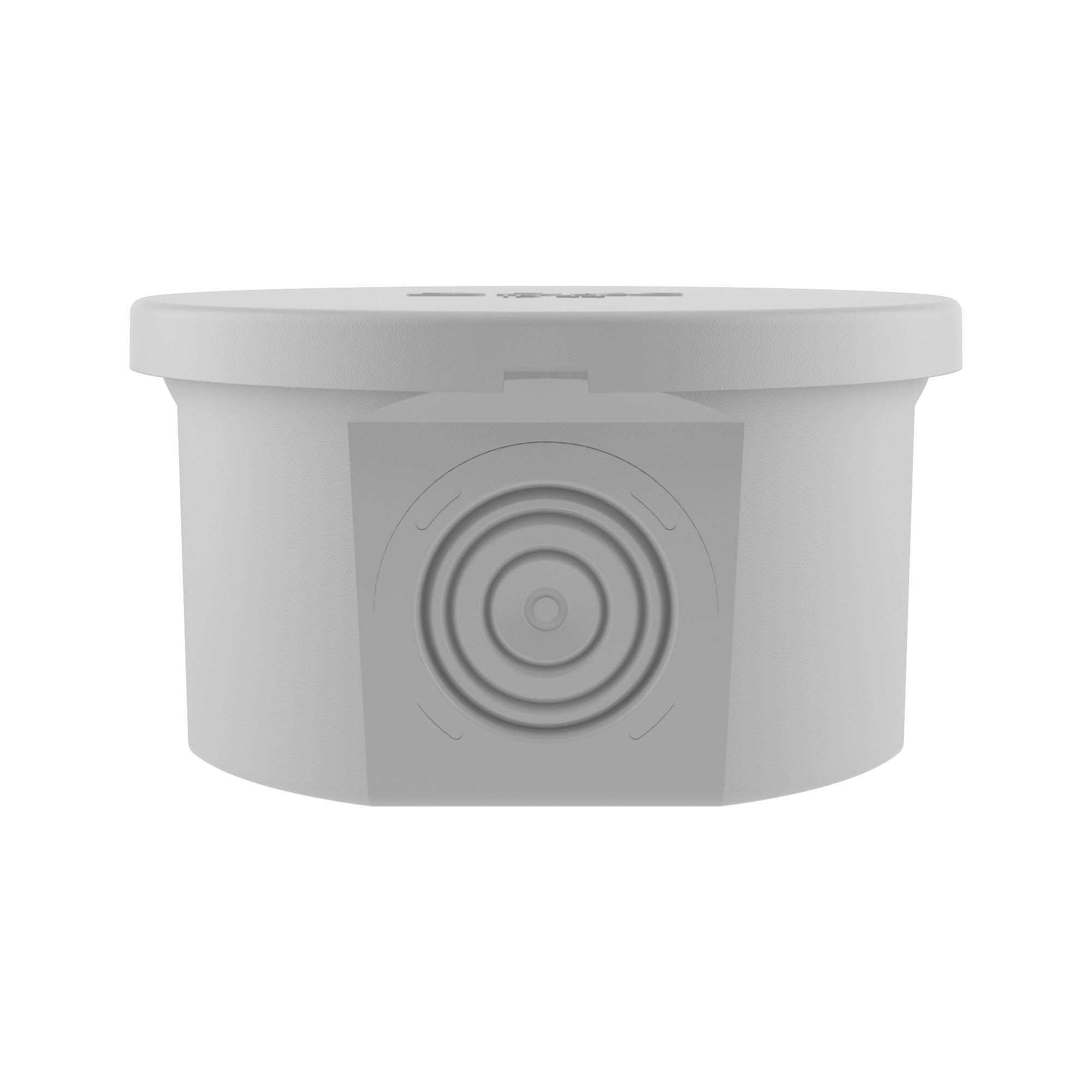

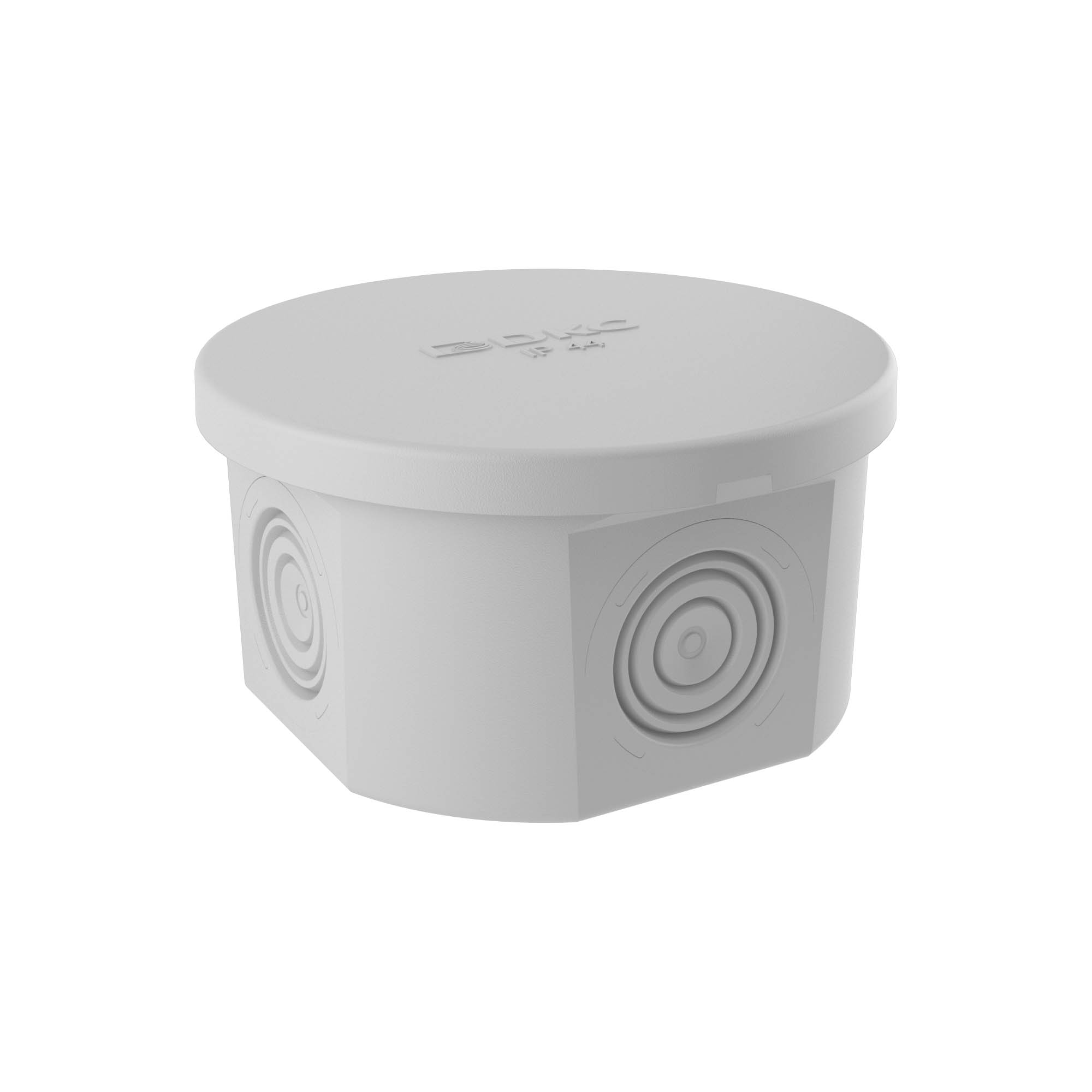

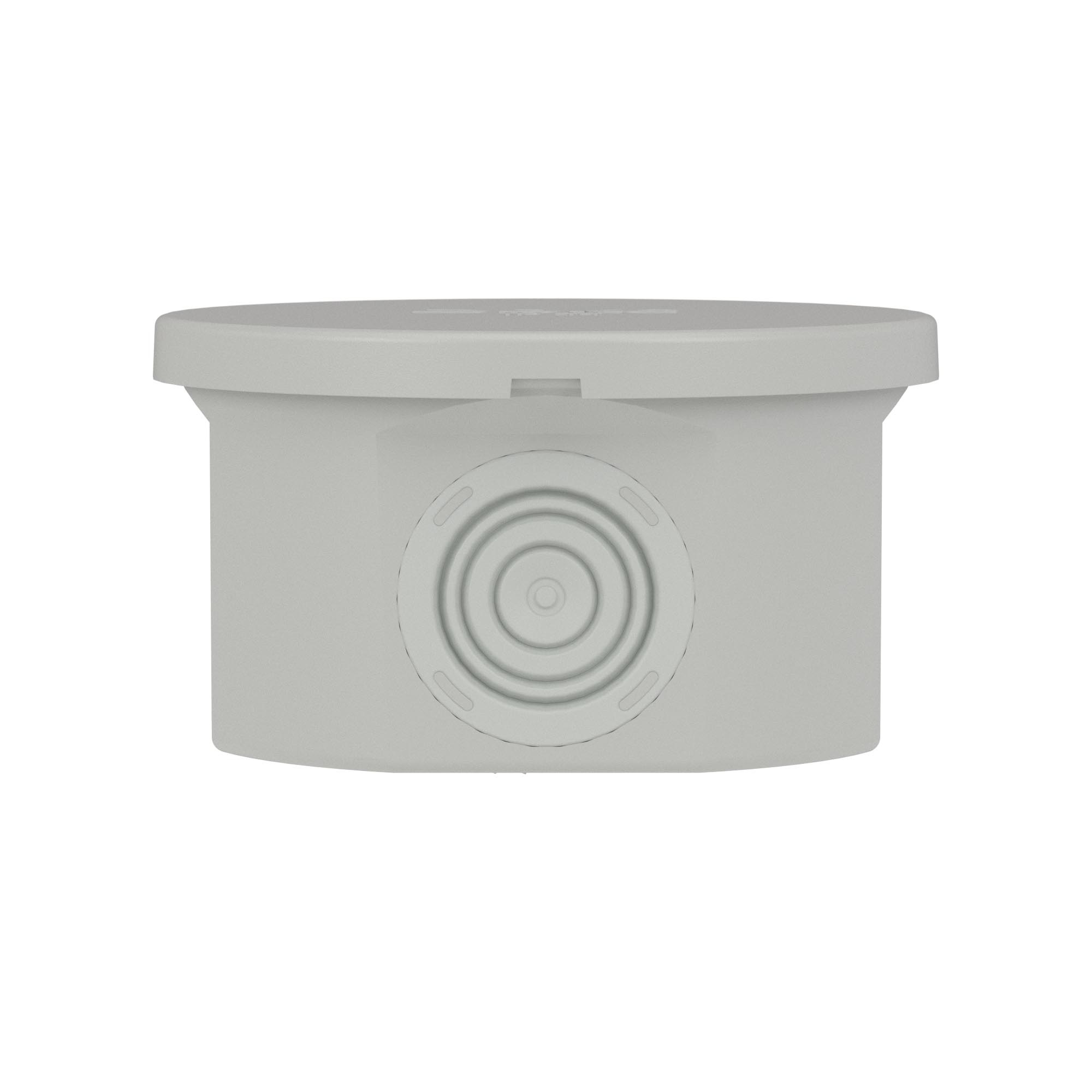

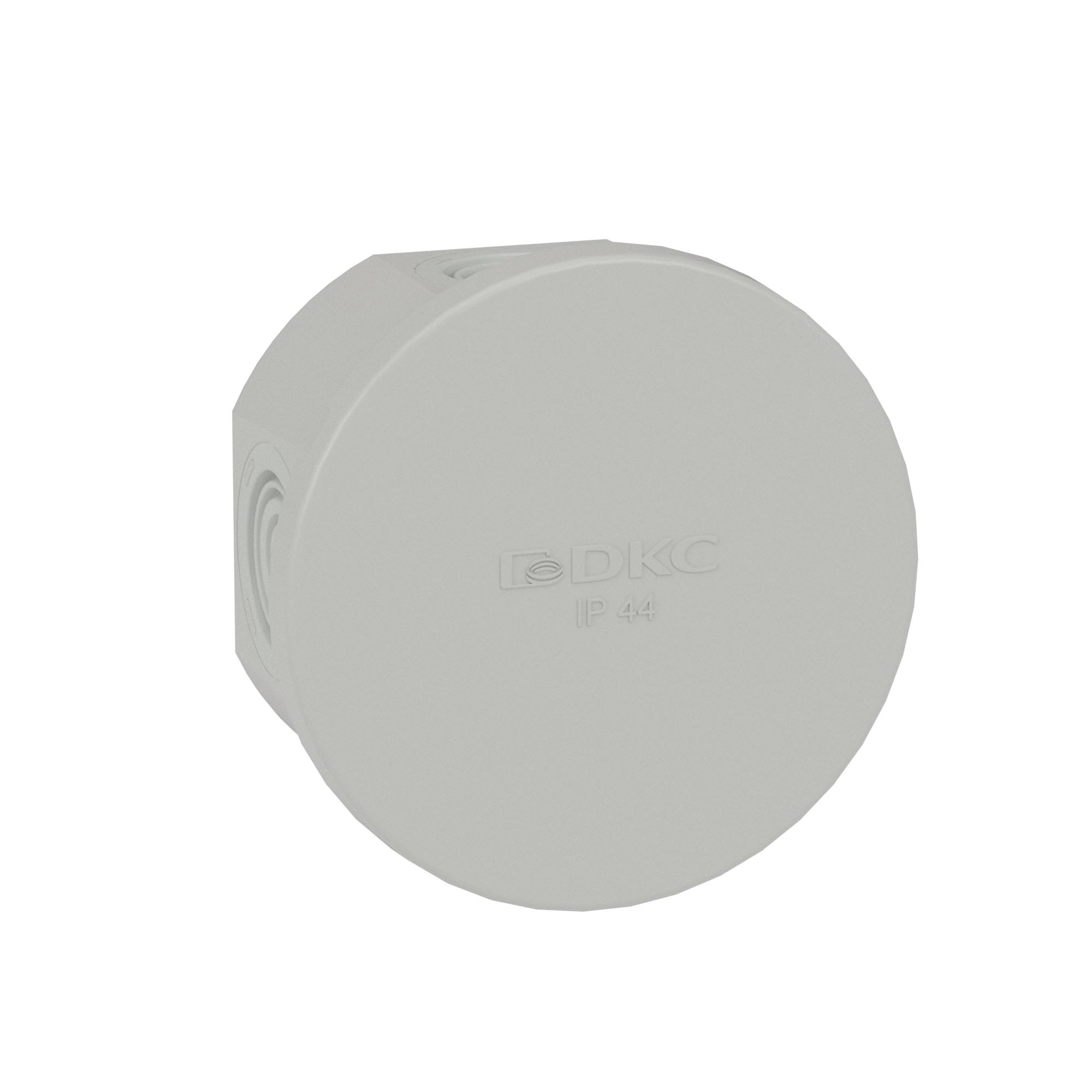

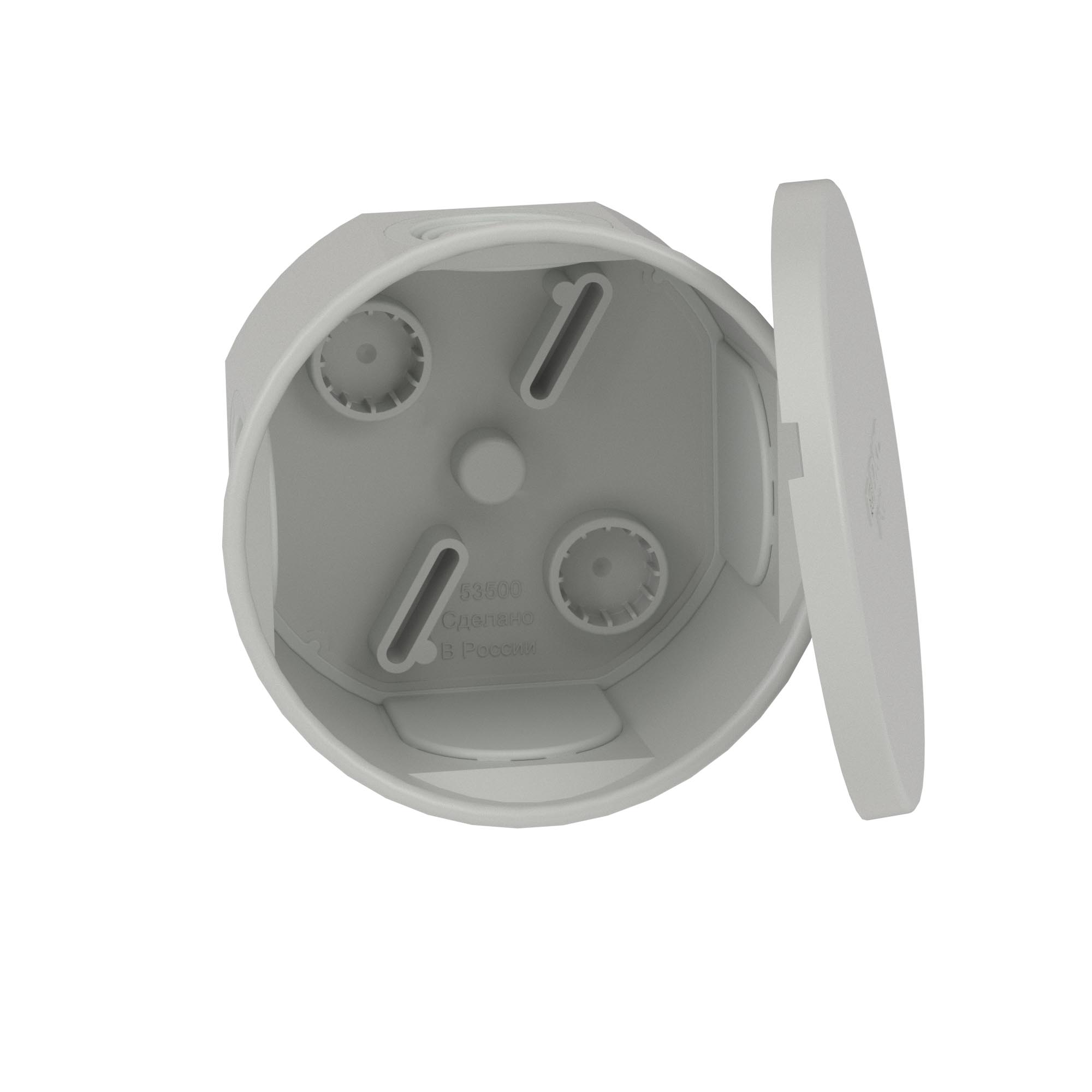

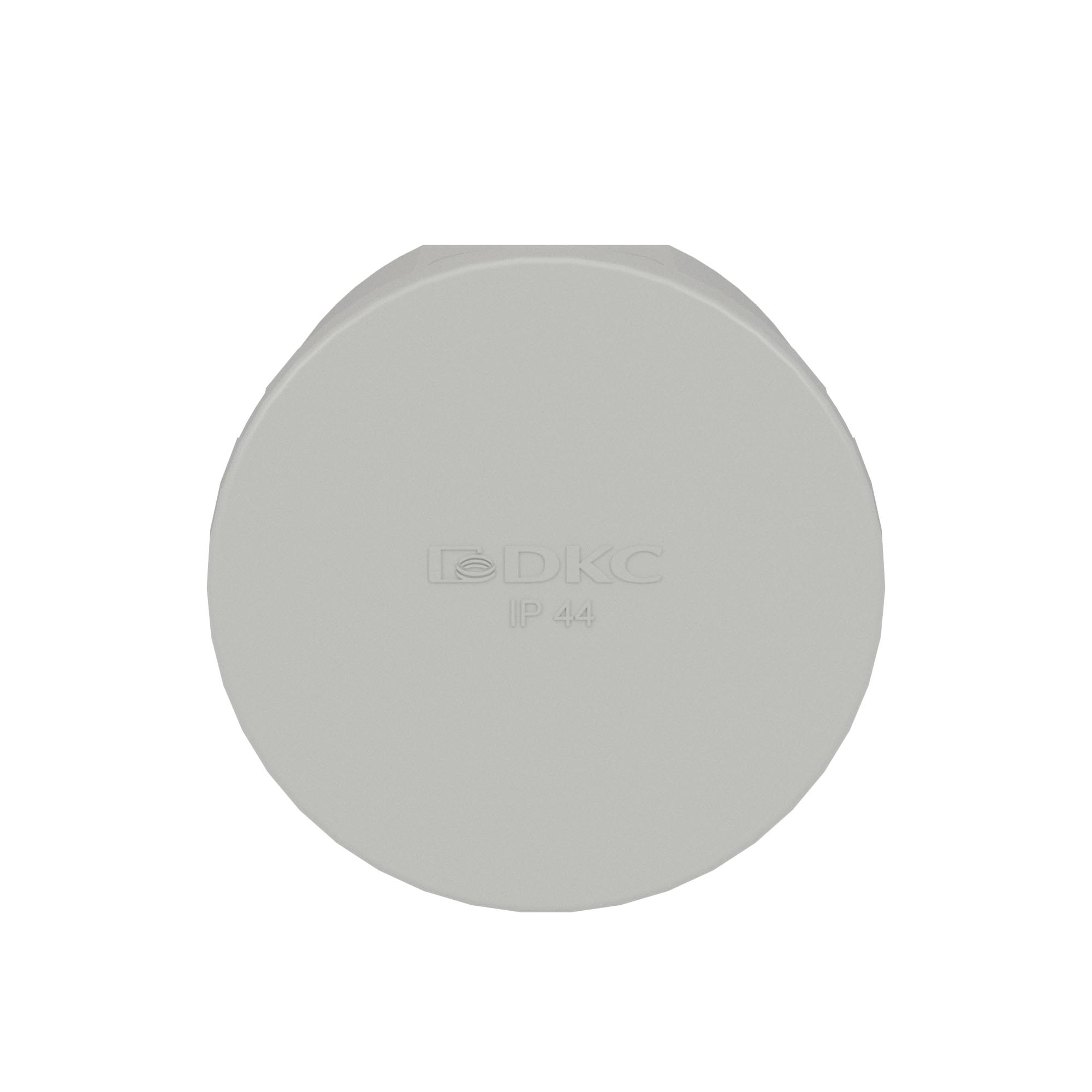

Junction box with 4 cable inputs Ø 20 mm, IP44, Ø 65х35 mm (retail packaging)

Code: 53500R
Colour Grey
Width, mm 65
Depth, mm 40
Surface protection Untreated
Diameter, mm 66
Length, mm 65
Sealable No
Circuit integrity None
Material Plastic
Operating temperature, °C -25...60
Number of inlets 4
Explosion-tested version No
Cover attachment Snapped on
With screening No
Degree of protection (IP) IP44
Inlet from the rear No
For Ex-zone gas None
Tackable No
For Ex-Zone dust None
Shape Round
For tubediameter 20 mm
Type of housing feed-through Seal membrane
Cover Not transparent
Equipped with None
Color gray
-5°С ... +60°С -5°С ... +60°С
Ingress Protection rating, IP IP44
от -25°С до +60°С from -25°С to +60°С
Product type Junction box with cable inputs
ТУ 2248-012-47022248-2009 Technical specifications 3464-028-47022248-2011
3 года 3 years
