| Mounting method | Surface mounted (plaster) |
| Colour | Grey |
| Width, mm | 292 |
| Halogen free | Yes |
| Depth, mm | 88.8 |
| Surface protection | Other |
| Extension possible | No |
| With transparent cover | No |
| With cover lid | Yes |
| Number of connection clamps | 6 |
| Length, mm | 292 |
| Sealable | Yes |
| Type of inlet | Cable |
| Circuit integrity | None |
| Operational temperature, °C | -60...40 |
| Material | Aluminium |
| Number of inlets | 4 |
| Explosion-tested version | Yes |
| Impact strength | Other |
| Cover attachment | Screwed |
| Max. conductor cross section, mm² | 25 |
| Degree of protection (IP) | IP68 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Degree of protection (NEMA) | Other |
| Nominal cross-section of terminals | 2,5 mm2 |
| Terminal type | Screw |
| Quantity | 2 pc. x MVK.2,5(grey) +2 pc. хMVK.2,5(i) (blue) + 2 pc MVK.2,5T(yellow-green) |
| Type of a cable gland for | Armored cable |
| Series | КА |
| Installation side: A | 1 pc. x outer D: 15-25 mm / inner d: 11,8-18 mm |
| Installation side: B | 1 pc. x outer D: 15-25 mm / inner d: 11,8-18 mm |
| Installation side: C | 1 pc. x outer D: 15-25 mm / inner d: 11,8-18 mm |
| Installation side: D | 1 pc. x outer D: 15-25 mm / inner d: 11,8-18 mm |
| Material | Aluminium alloy |

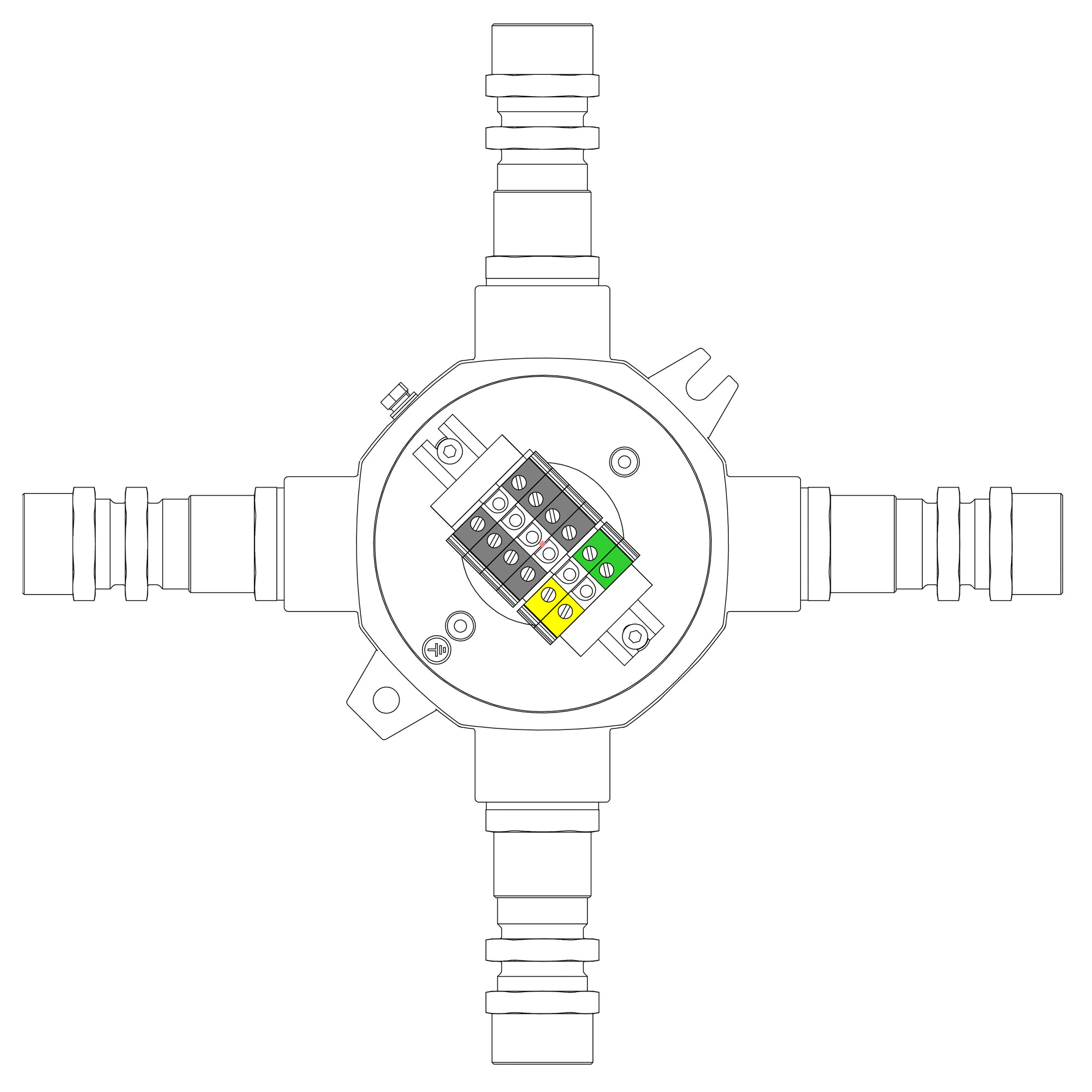

| Product type | Explosion-proof box |
| Electrical equipment group | IIC hydrogen |
| Ex | d; tb |
