No name
Code: LBD23000108
No name
Code: LBD23000108
| Nominal cross-section of terminals | 2,5 mm2 |
| Terminal type | Screw |
| Quantity | 2 pc. x MVK.2,5(grey) +2 pc. хMVK.2,5(i) (blue) + 2 pc MVK.2,5T(yellow-green) |
| Type of a cable gland for | Armored and Unarmored cable in a flexible conduit COSMEC |
| Series | КАEPM |
| Installation side: A | 1 pc. x inner d: 11,8-18 mm |
| Installation side: B | 1 pc. x inner d: 11,8-18 mm |
| Installation side: C | 1 pc. x inner d: 11,8-18 mm |
| Installation side: D | 1 pc. x inner d: 11,8-18 mm |
| Material | Aluminium alloy |

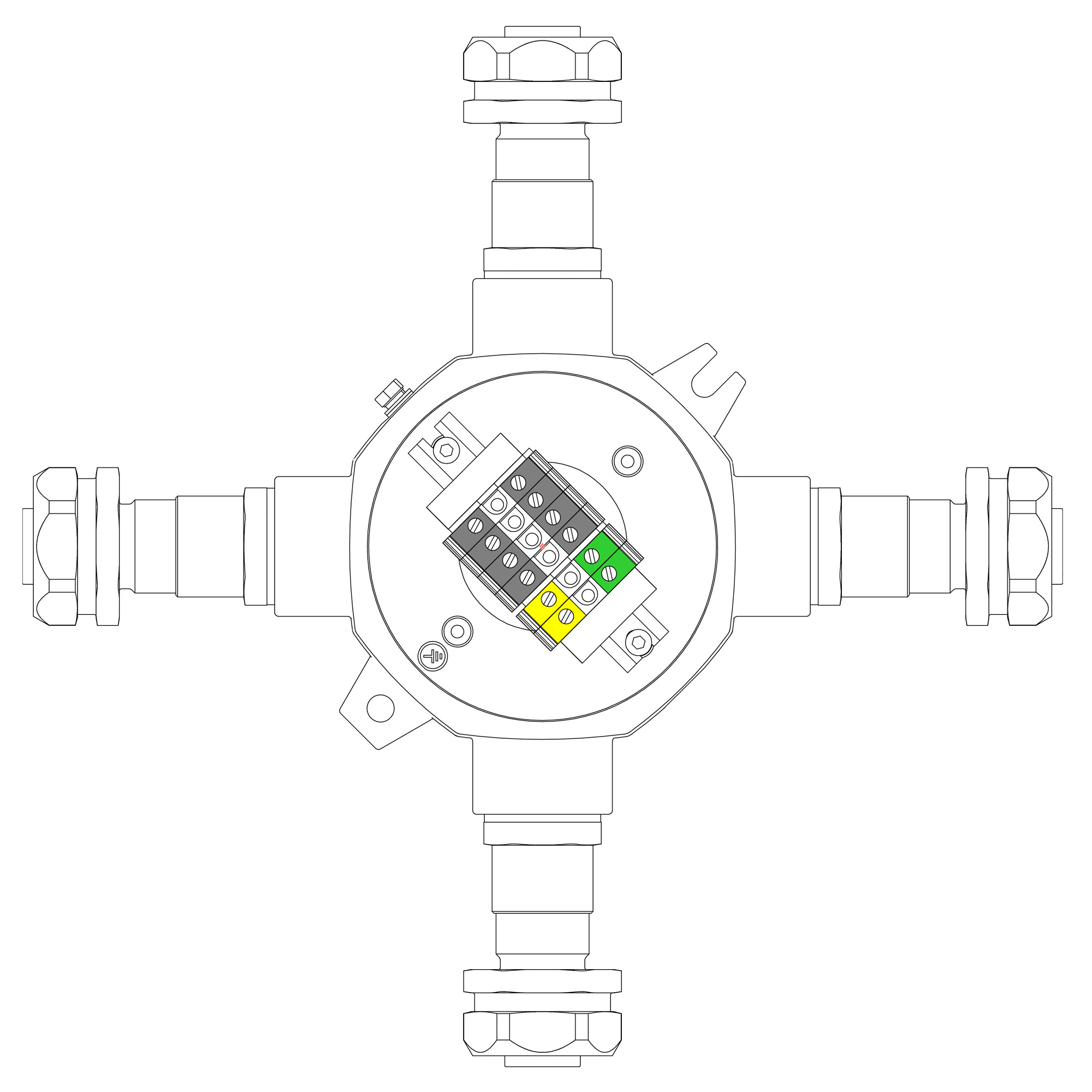

| Product type | Explosion-proof box |
| Electrical equipment group | IIC hydrogen |
| Ex | d; tb |
