| Mounting method | Surface mounted (plaster) |
| Material | Plastic |
| Explosion-tested version | Yes |
| Impact strength | IK07 |
| Cover attachment | Screwed |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Nominal cross-section of terminals | 2,5 mm2 |
| Terminal type | Screw |
| Quantity | 12xCBC.2 |
| Type of a cable gland for: | Armored cable |
| Series | KA |
| Installation side: A | 1 pc. outer D: 21-31 mm / inner x d: 17,8-25 mm |
| Installation side: B | 1 pc. outer D: 15-25 mm / inner x d: 11,8-18 mm |
| Installation side: C | 1 pc. outer D: 15-25 mm / inner x d: 11,8-18 mm |
| Installation side: D | 1 pc. outer D: 15-25 mm / inner x d: 11,8-18 mm |
| Material | PVC |

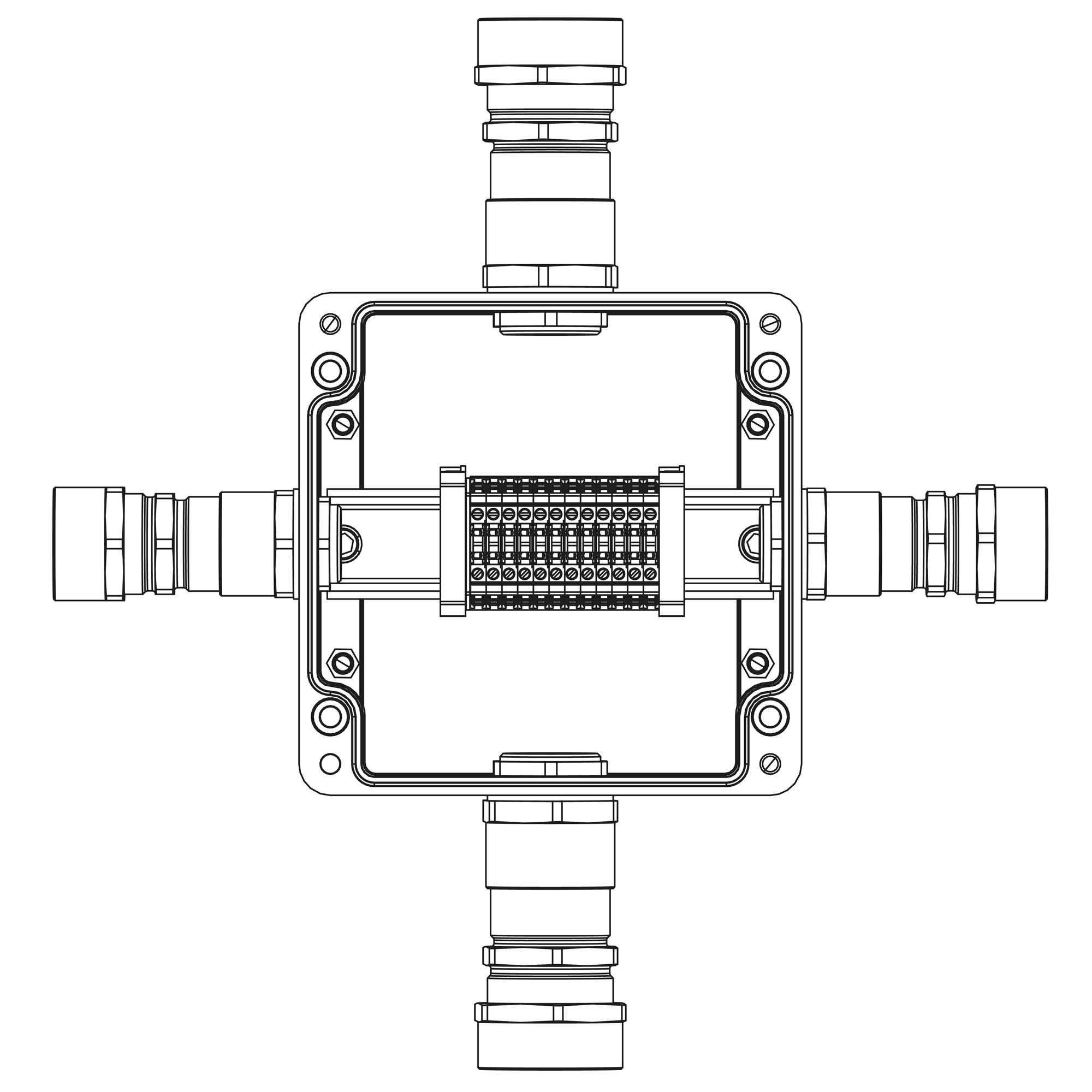

| Product type | Explosion-proof box |
| Electrical equipment group | IIC hydrogen |
| Ex | e;t |
| Geometric dimensions | 160x160x90 mm |
