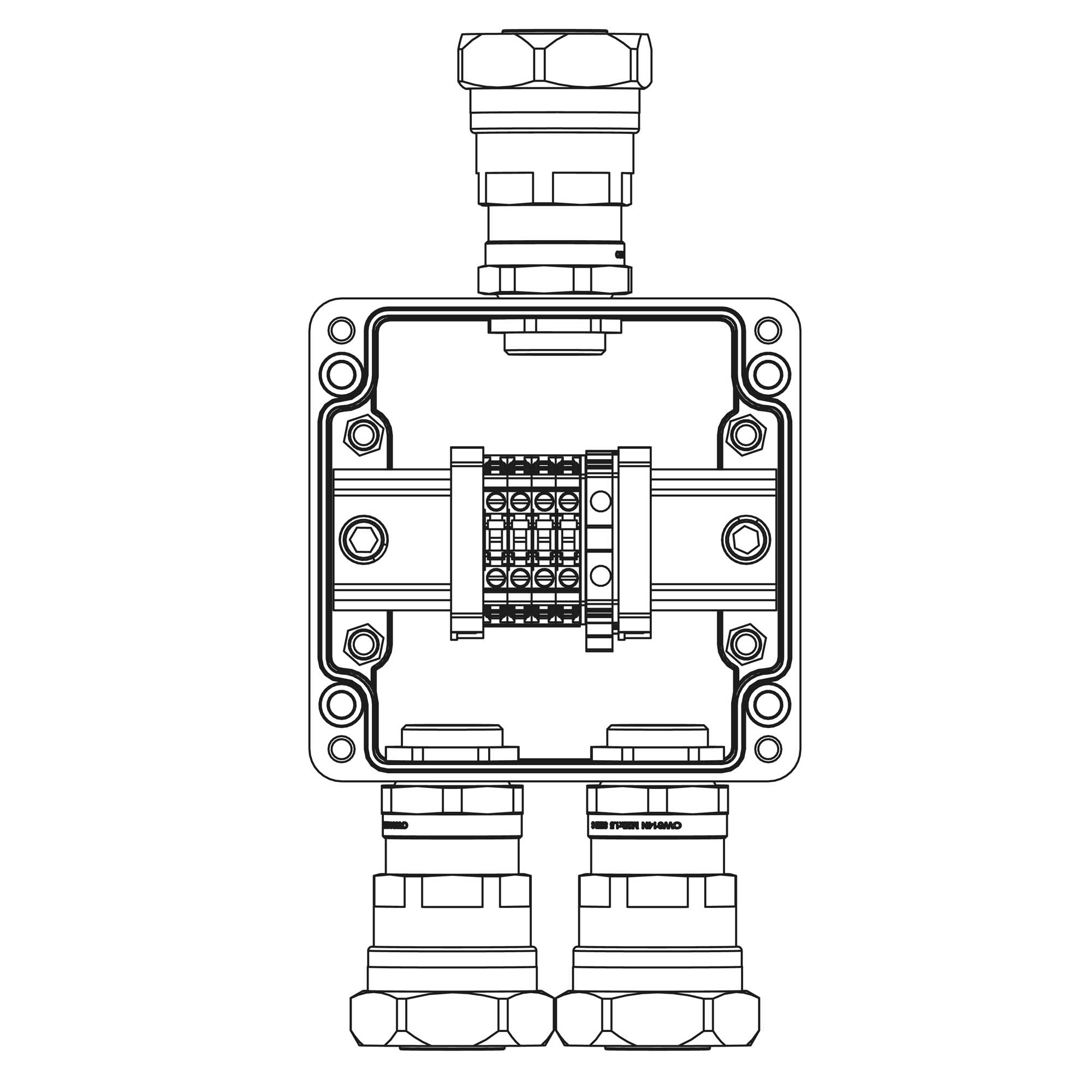

GRP terminal box 120x120x90мм 1Ex e IIC T5 Gb / Ex tb IIIB T95°C Db / IP66 Temperature Classes Т5 40°C Grounding rings Quantity of clamp terminal blocks: CBC.4 4 pcs. Amperage А TEO.4 1 pcs. Amperage А Cable glands side A: ANP explosion-proof cable gl

Code: 1231.031.20.04U
GRP terminal box 120x120x90мм 1Ex e IIC T5 Gb / Ex tb IIIB T95°C Db / IP66 Temperature Classes Т5 40°C Grounding rings Quantity of clamp terminal blocks: CBC.4 4 pcs. Amperage А TEO.4 1 pcs. Amperage А Cable glands side A: ANP explosion-proof cable gl
GRP terminal box 120x120x90мм 1Ex e IIC T5 Gb / Ex tb IIIB T95°C Db / IP66 Temperature Classes Т5 40°C Grounding rings Quantity of clamp terminal blocks: CBC.4 4 pcs. Amperage А TEO.4 1 pcs. Amperage А Cable glands side A: ANP explosion-proof cable gl
Code: 1231.031.20.04U
Removed from the product range
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Certificates
  • Promo
  • Viewed items
Explosion-tested version Yes
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Impact strength IK07
Mounting method Surface mounted (plaster)
Material Plastic
Cover attachment Screwed
Colour Black
Width, mm 120
Depth, mm 90
Length, mm 120
Number of inlets 3
Nominal cross-section of terminals 4 mm2
Terminal type Screw
Quantity 4 шт. x CBC.4 (gray) - 1 шт. x TEO.4 (yellow-green)
Type of a cable gland for: Unarmored cable in a flexible conduit COSMEC
Series ANP
Nominal diameter of the flexible conduit, mm DN20 - cable diameter up to 15 mm
Installation side: A 2 pcs. x outer D: 10,5-18 mm
Material PVC
Product type Explosion-proof box
Electrical equipment group IIC hydrogen
Ex e;t
Geometric dimensions 120x120x90 mm
Installation side: C 1 pc. x outer D: 10,5-18 mm
