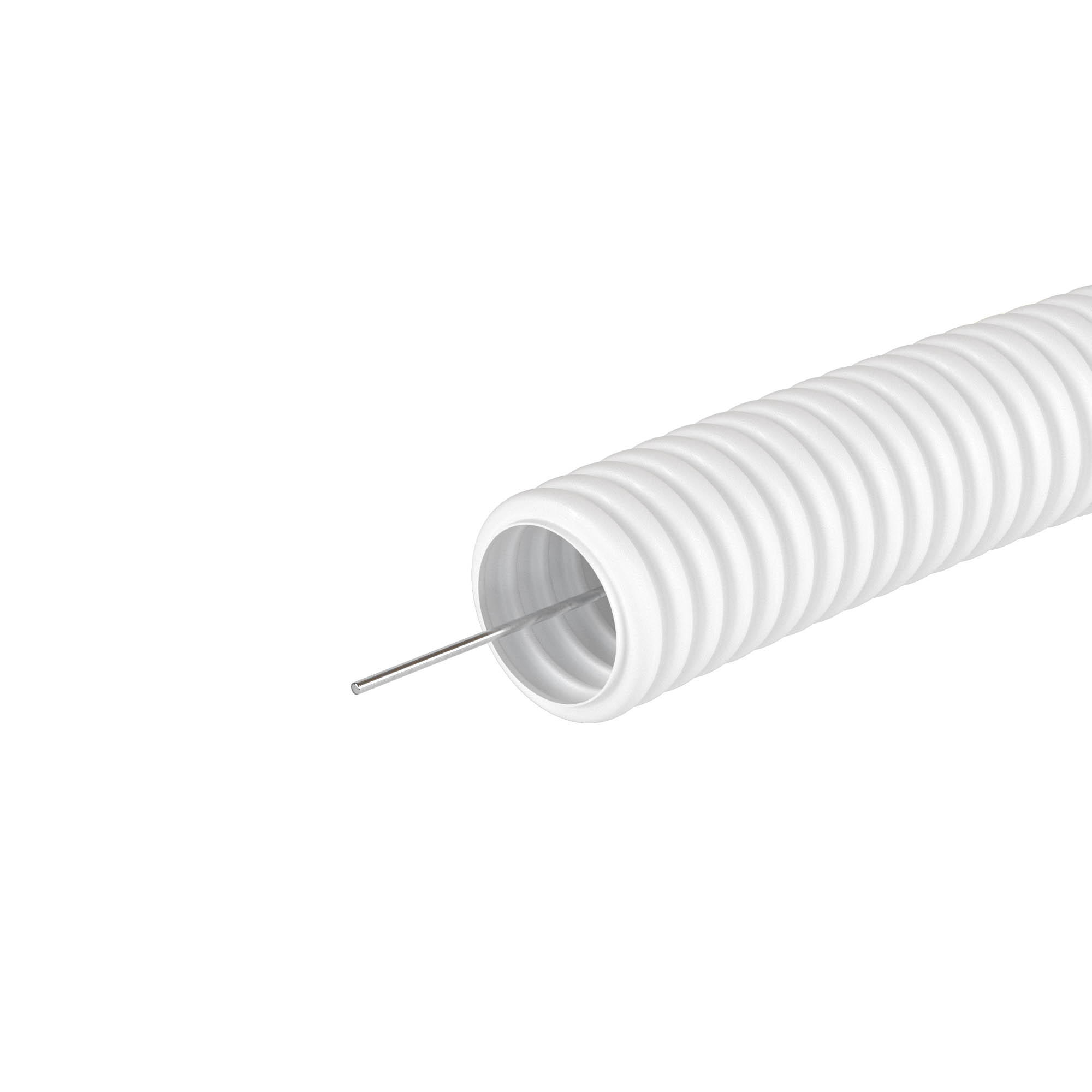

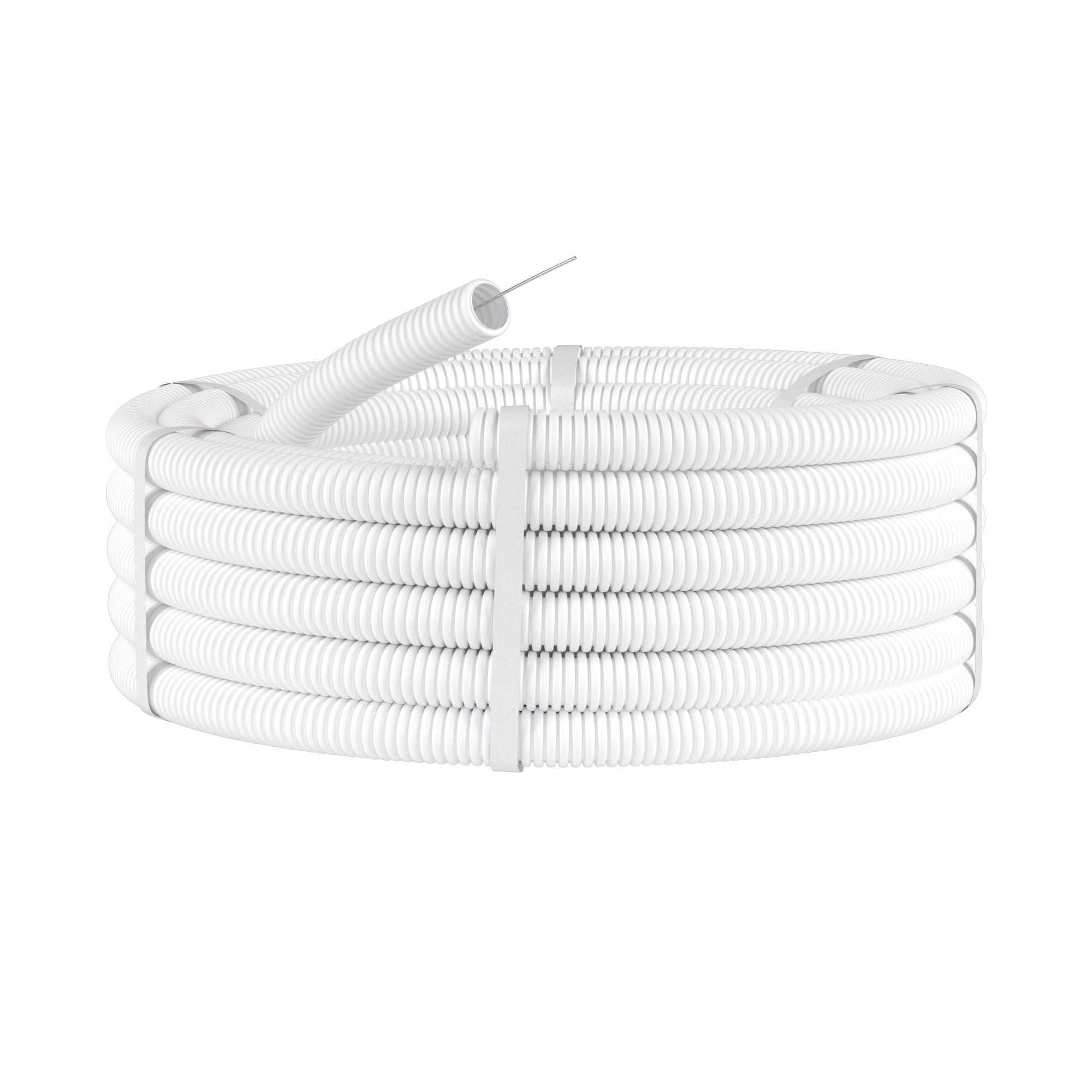

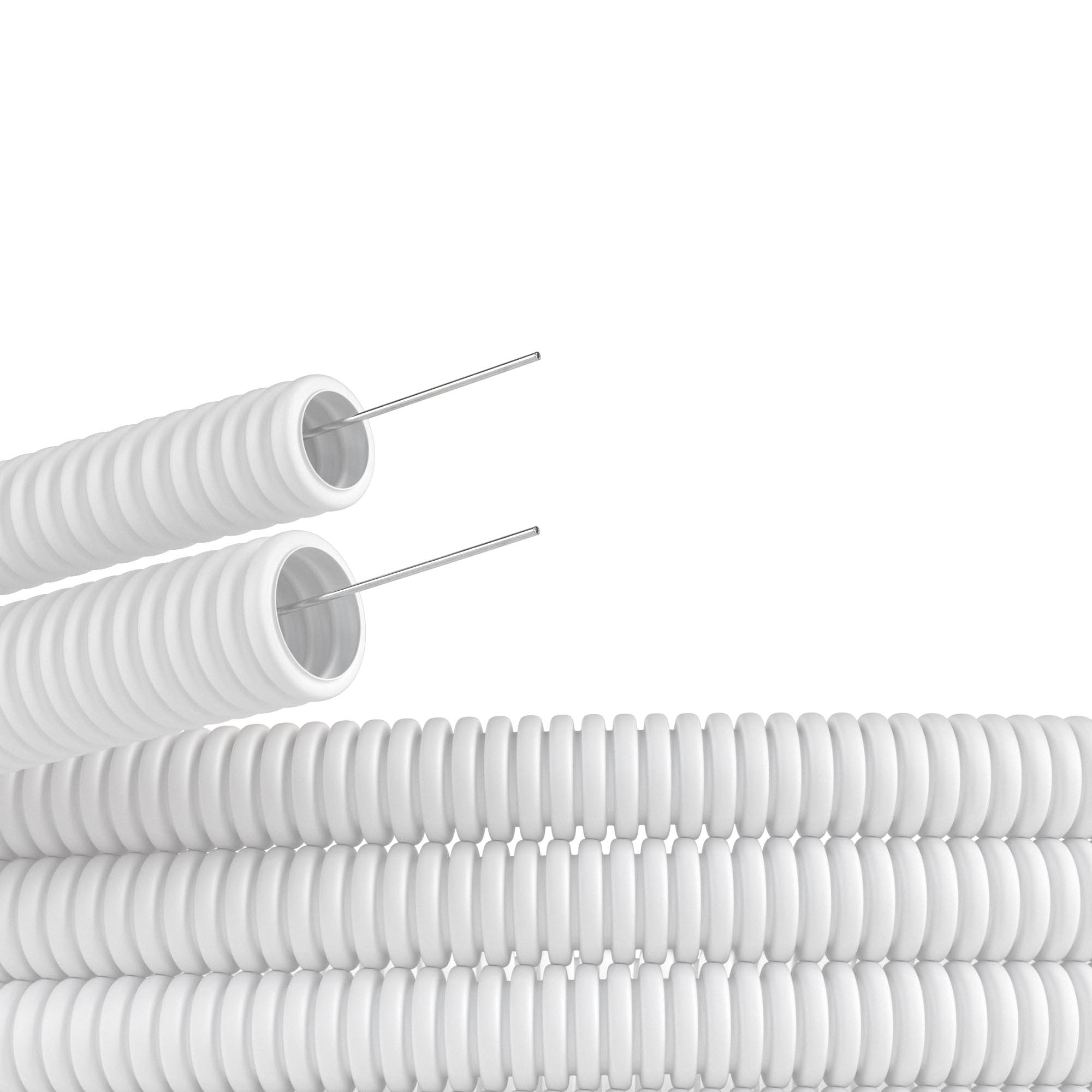

Tube PO flexible corrugated halogen-free, Ø 50 mm, with pull, 15 m, white color

Code: 81850

Tube PO flexible corrugated halogen-free, Ø 50 mm, with pull, 15 m, white color

Code: 81850
Colour White

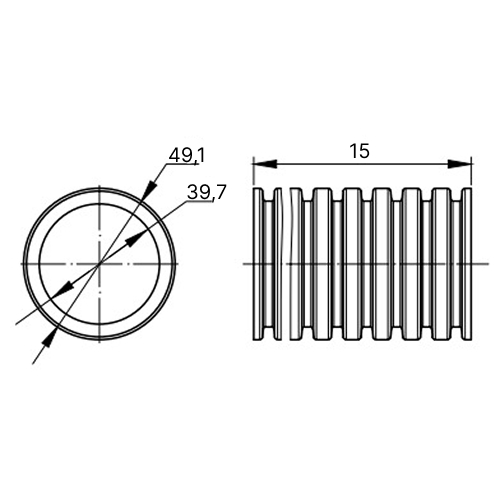

Outer diameter, mm 49.1
UV resistant No
Halogen free Yes
Inner diameter, mm 39.7
Compressive strength, N 125
Operational temperature, °C -15...90
Fire resistance according to UL94 V0
Bending radius, static, mm 100
Flame accelerating No
Tensile strength, N 200
Nominal diameter, mm 50
Nominal size in inch 2 inch
Degree of protection (IP) IP55
Bending strength Flexible
Sheathing material Not sheathed
With draw wire Yes
-5°С ... +60°С -15°С ... +90°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -15°С to +90°С
Shock resistance, J 0,5 at -15°С
Cord for wires No
ТУ 2248-012-47022248-2009 Technical specifications 3491-052-47022248-2016
3 года 2 years
15 лет 15 years
Length 15000 mm
8 диаметров мм 2 diameters mm
Product type Tube PO flexible corrugated
