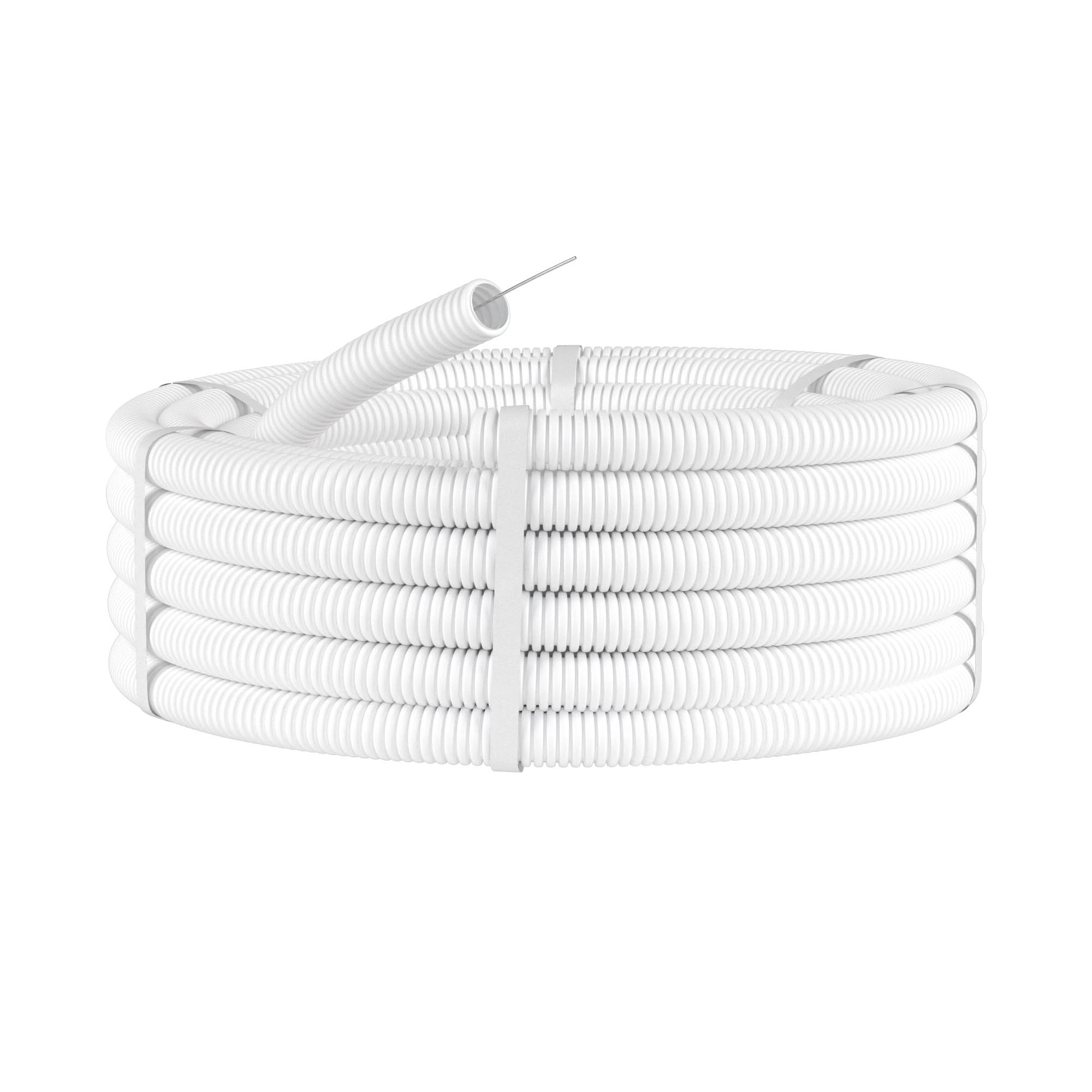

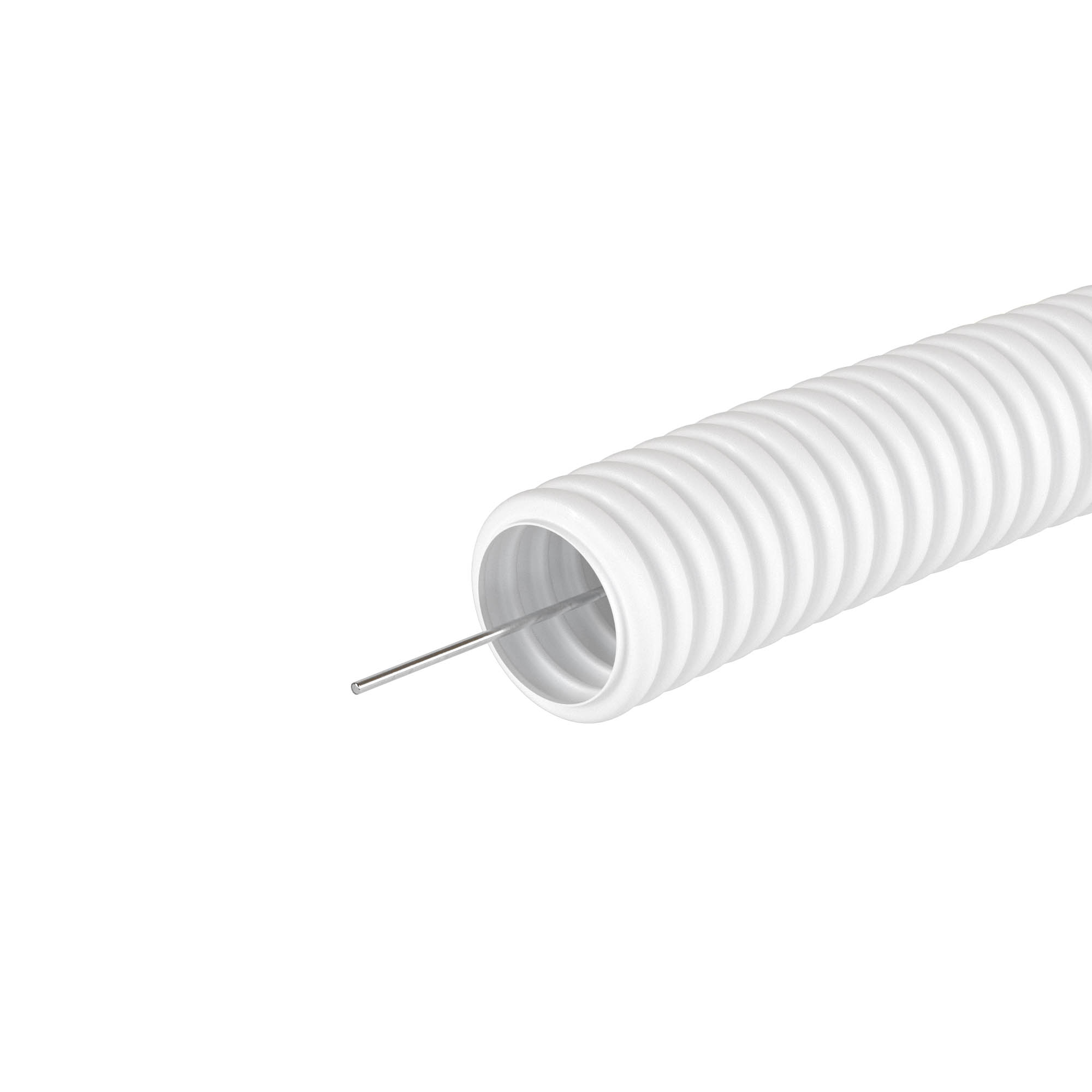

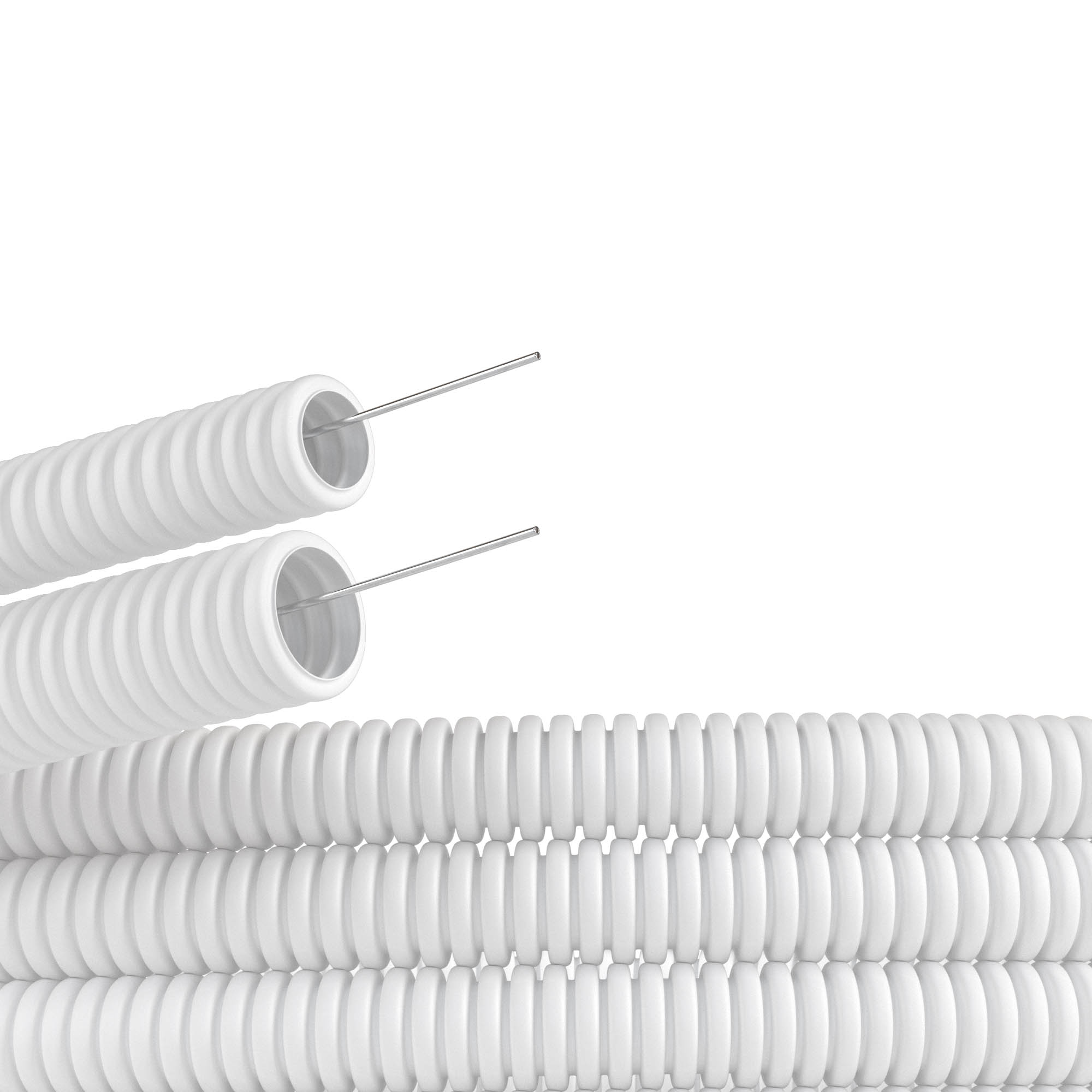

Tube PO flexible corrugated halogen-free, Ø 16 mm, with pull, 100 m, white color
Code:
81816
Code:
81816
| Colour | White |

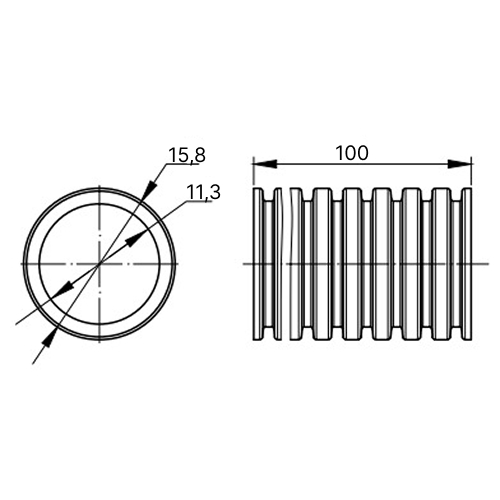

| Outer diameter, mm | 15.8 |
| UV resistant | No |
| Halogen free | Yes |
| Inner diameter, mm | 11.3 |
| Compressive strength, N | 125 |
| Operational temperature, °C | -15...90 |
| Fire resistance according to UL94 | V0 |
| Bending radius, static, mm | 32 |
| Flame accelerating | No |
| Tensile strength, N | 200 |
| Nominal diameter, mm | 16 |
| Nominal size in inch | 5/8 inch |
| Degree of protection (IP) | IP55 |
| Bending strength | Flexible |
| Sheathing material | Not sheathed |
| With draw wire | Yes |
| -5°С ... +60°С | -15°С ... +90°С |
| Ingress Protection rating, IP | IP55 |
| от -25°С до +60°С | from -15°С to +90°С |
| Shock resistance, J | 0,5 at -15°С |
| Cord for wires | No |
| ТУ 2248-012-47022248-2009 | Technical specifications 3491-052-47022248-2016 |
| 3 года | 2 years |
| 15 лет | 15 years |
| Length | 100 m |
| 8 диаметров мм | 2 diameters mm |
| Product type | Tube PO flexible corrugated |
