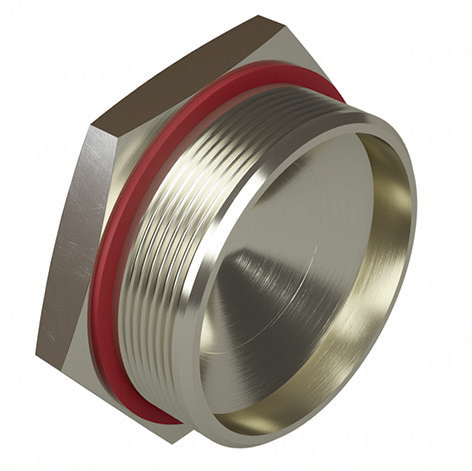

Explosion-proof plug Ex d e, NPT 2 1/2". Stainless steel AISI316L. IP66/67
Code:
EXD6050-N212X
Code:
EXD6050-N212X
| Surface protection | Nickel-plated |
| Glass-fibre reinforced | No |
| Thread type | Metric |
| Colour | Light grey |
| Halogen free | Yes |
| Shock resistant | Yes |
| Material quality | Brass |
| Material | Metal |
| Explosion-tested version | Yes |
| For Ex-zone gas | 1, 2 |
| Nominal thread size inch/gas pipe thread | 2 1/2 inch |
| For Ex-Zone dust | 21, 22 |
| Material | AISI 316L |
| External thread | 2 1/2" NPT |
| Marking | Ex db IIC Gb U / Ex e IIC Gb U / Ex tb IIIC Db U |
| Temperature range | From -65 to +130 °С |
| Product type | Plug |
