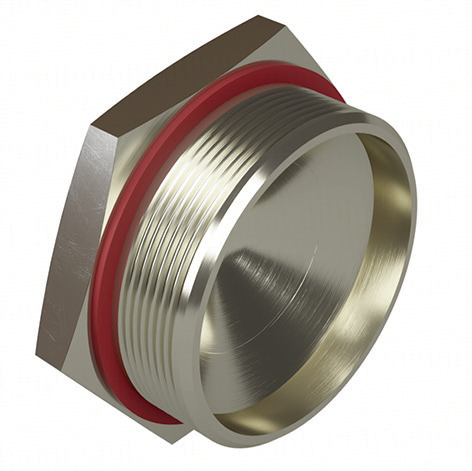

Explosion-proof plug Ex d e, M25x1,5. Nickel-plated brass. IP66/67
Code:
EXD6050-M25SB
Code:
EXD6050-M25SB
| Glass-fibre reinforced | No |
| Colour | Light grey |
| Halogen free | Yes |
| Shock resistant | Yes |
| Surface protection | Nickel-plated |
| Material quality | Brass |
| Thread type | Metric |
| Material | Metal |
| Explosion-tested version | Yes |
| Nominal thread size metric/PG | 25 |
| Pitch thread, mm | 1.5 |
| Nominal thread size inch/gas pipe thread | Other |
| Material | Nickel plated brass |
| External thread | M25х1,5 Metric |
| Marking | Ex db IIC Gb U / Ex e IIC Gb U / Ex tb IIIC Db U |
| Temperature range | From -65 to +130 °С |
| Product type | Plug |
