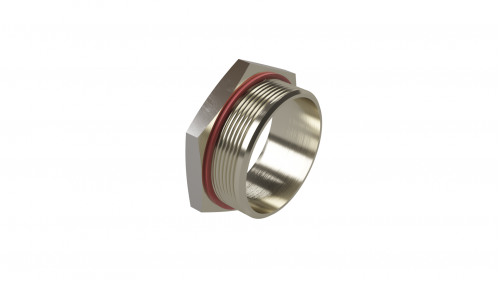

Explosion-proof adaptor Ex e, M32x1,5. Nickel-plated brass. IP66/67
Code:
EX6052-32A
Code:
EX6052-32A
Material | Metal |
Degree of protection (IP) | IP66 |
For Ex-zone gas | 1, 2 |
Explosion-tested version | Yes |
Colour | Light grey |
Model | Straight |
Halogen free | Yes |
Surface protection | Nickel-plated |
Material quality | Brass |
Thread type | Metric |
For Ex-Zone dust | None |
Shock resistant | Yes |
Type of sealing | Sealing ring |
Pitch thread, mm | 1.5 |
Flat cable coupling | No |
Nominal thread size metric/PG | 32 |
Suitable for cable diameter, mm | 35...35 |
Material | Nickel plated brass |
Product type | Сable line cut protection |
External thread | M32х1,5 Metric |
Marking | Ex e IIC Gb U/ Ex tb IIIC Db U |
Inside diameter of the through hole | 28 mm |
Temperature range | from - 45 to +85 °С |
