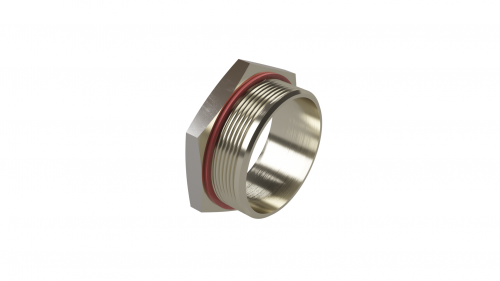

Explosion-proof adaptor Ex e, M25x1,5. Nickel-plated brass. IP66/67

Code: EX6052-25
Code: EX6052-25
  • To ask a question
Material Metal
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
Colour Light grey
Model Straight
Halogen free Yes
Surface protection Nickel-plated
Material quality Brass
Thread type Metric
For Ex-Zone dust None
Shock resistant Yes
Type of sealing Sealing ring
Pitch thread, mm 1.5
Flat cable coupling No
Nominal thread size metric/PG 25
Suitable for cable diameter, mm 27...27
Material Nickel plated brass
Product type Сable line cut protection
External thread M25х1,5 Metric
Marking Ex e IIC Gb U/ Ex tb IIIC Db U
Inside diameter of the through hole 21 mm
Temperature range from - 45 to +85 °С
