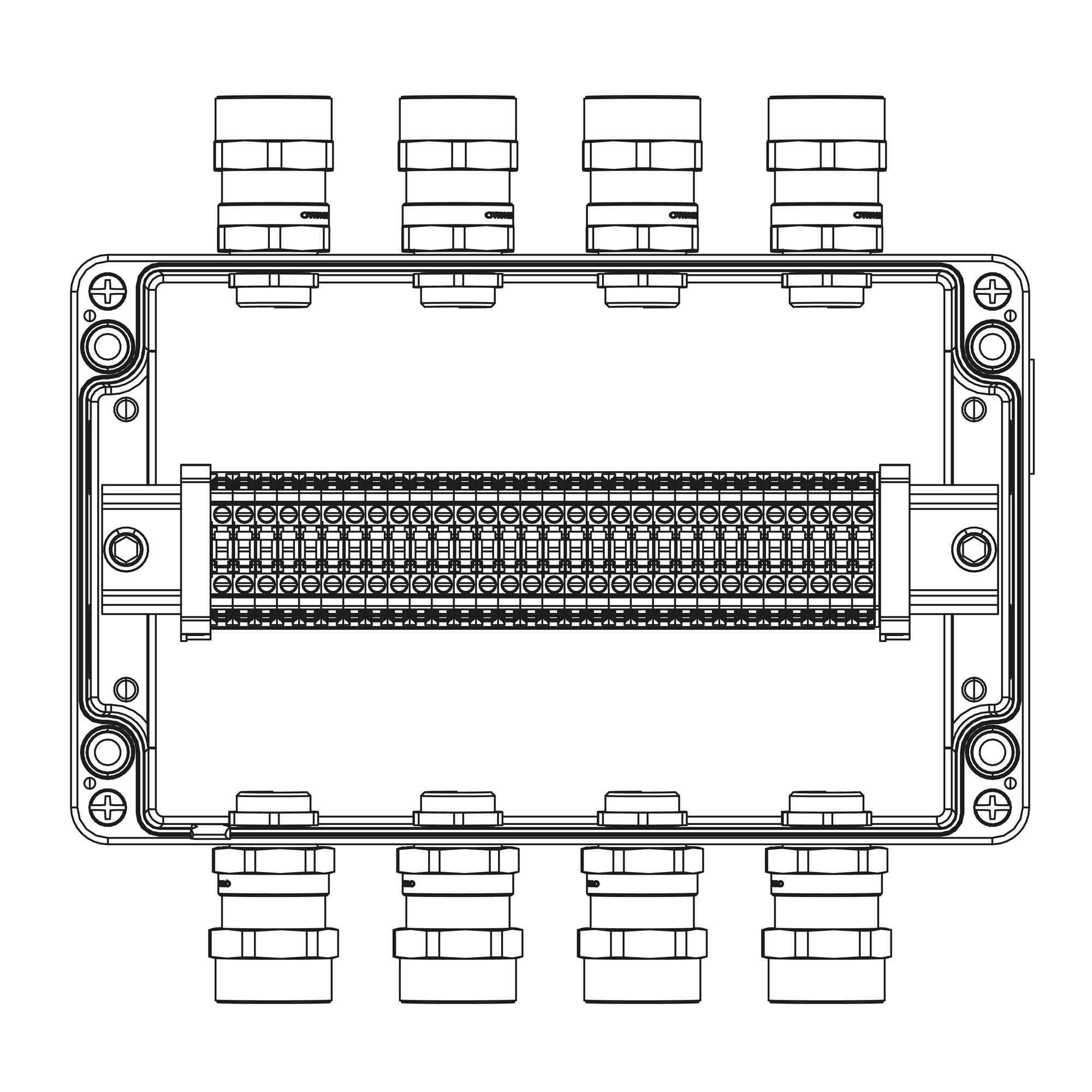

Aluminum terminal box 260x160x90мм 1Ex e IIC Т5 Gb / Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Quantity of clamp terminal blocks: CBC.4 30 pcs. Amperage А Cable glands side A: ANS explosion-proof cable gland for unarmoured cable, single se

Code: 1201.181.20.00X
Aluminum terminal box 260x160x90мм 1Ex e IIC Т5 Gb / Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Quantity of clamp terminal blocks: CBC.4 30 pcs. Amperage А Cable glands side A: ANS explosion-proof cable gland for unarmoured cable, single se
Aluminum terminal box 260x160x90мм 1Ex e IIC Т5 Gb / Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Quantity of clamp terminal blocks: CBC.4 30 pcs. Amperage А Cable glands side A: ANS explosion-proof cable gland for unarmoured cable, single se
Code: 1201.181.20.00X
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Certificates
  • Promo
  • Viewed items
Explosion-tested version Yes
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Impact strength IK07
Mounting method Surface mounted (plaster)
Material Aluminium
Cover attachment Screwed
Colour Grey
Width, mm 260
Depth, mm 90
Length, mm 160
Number of inlets 12
Nominal cross-section of terminals 4 mm2
Terminal type Screw
Quantity 30 шт. x CBC.4 (gray)
Type of a cable gland for: unarmored cable
Series ANS
Installation side: A 4 pcs. x outer D: 5,5-13 mm
Material Aluminium alloy
Product type Explosion-proof box
Electrical equipment group IIC hydrogen
Ex e;t
Geometric dimensions 260x160x90 mm
Installation side: C 4 pcs. x outer D: 5,5-13 mm
