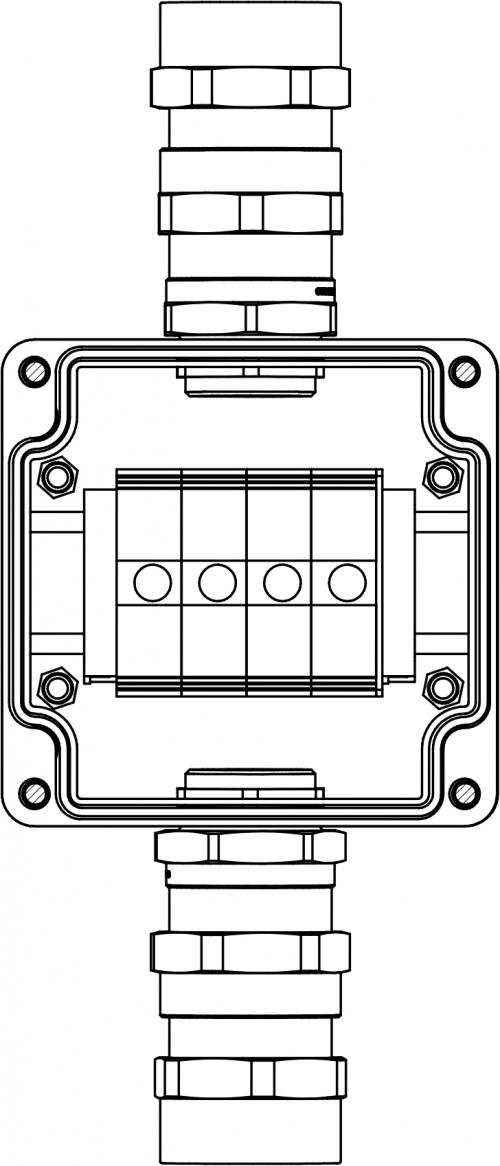

Aluminum terminal box 120x120x90мм1Ex e IIC Т5 Gb / Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Quantity of clamp terminal blocks:CBC.35 4 pcs. Amperage А Cable glands side A:ADS explosion-proof cable gland for armoured cable, double sealing M32
Code: 1201.121.20.018
Aluminum terminal box 120x120x90мм1Ex e IIC Т5 Gb / Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Quantity of clamp terminal blocks:CBC.35 4 pcs. Amperage А Cable glands side A:ADS explosion-proof cable gland for armoured cable, double sealing M32
Code: 1201.121.20.018
Removed from the product range
| Explosion-tested version | Yes |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Impact strength | IK07 |
| Mounting method | Surface mounted (plaster) |
| Material | Aluminium |
| Cover attachment | Screwed |
| Material | Aluminium alloy |
| Geometric dimensions, mm | 120x120x90 |
| Ex | e;t |
| Electrical equipment group | IIC hydrogen |
| Terminal type | Screw |
| Nominal cross-section of terminals mm2 | 35 |
| Type of a cable gland for: | Armoured cable, double seal |
| Product type | Explosion-proof box |
