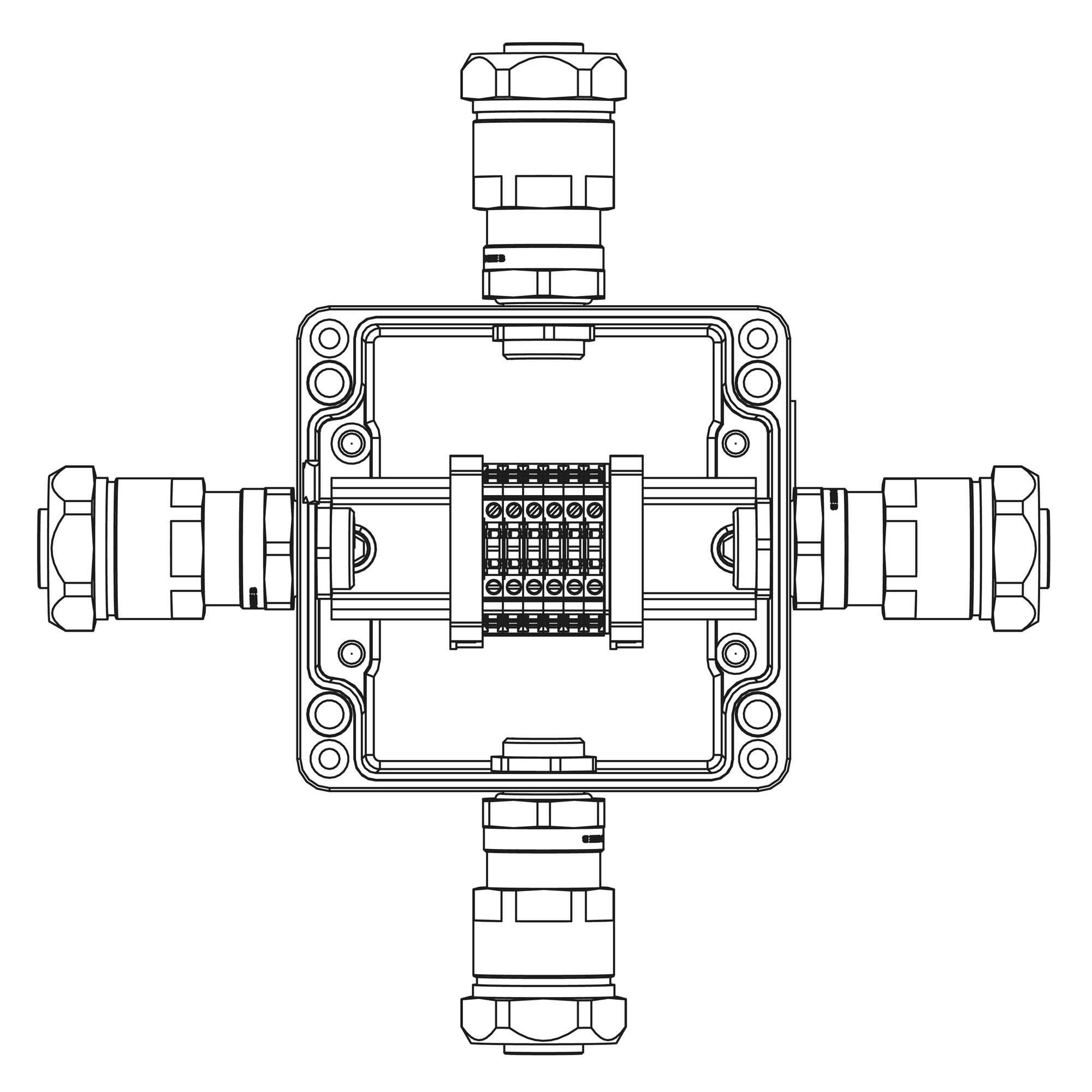

Aluminum terminal box 120x120x90мм1Ex e IIC Т5 Gb / Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Quantity of clamp terminal blocks:CBC.2 6 pcs. Amperage А Cable glands side A:ANP explosion-proof cable gland for unarmoured cable into flexible tube

Code: 1201.121.20.012

Aluminum terminal box 120x120x90мм1Ex e IIC Т5 Gb / Ex tb IIIB T95°C Db IP66 Temperature Classes Т5 40°C Quantity of clamp terminal blocks:CBC.2 6 pcs. Amperage А Cable glands side A:ANP explosion-proof cable gland for unarmoured cable into flexible tube

Code: 1201.121.20.012
Explosion-tested version Yes
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Impact strength IK07
Mounting method Surface mounted (plaster)
Material Aluminium
Cover attachment Screwed
Nominal cross-section of terminals 2,5 mm2
Terminal type Screw
Quantity 6 шт. x CBC.2 (gray)
Type of a cable gland for: Unarmored cable in a flexible conduit COSMEC
Series ANP
Nominal diameter of the flexible conduit, mm DN20 - cable diameter up to 15 mm
Installation side: A 1 pc. x outer D: 8-13 mm
Installation side: B 1 pc. x outer D: 8-13 mm
Installation side: C 1 pc. x outer D: 8-13 mm
Installation side: D 1 pc. x outer D: 8-13 mm
Material Aluminium alloy
Product type Explosion-proof box
Electrical equipment group IIC hydrogen
Ex e;t
Geometric dimensions 120x120x90 mm
