| Material quality | Brass |
| Material | Metal |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 20, 21, 22 |
| Colour | Light grey |
| Model | Straight |
| Surface protection | Nickel-plated |
| Type of sealing | Sealing ring |
| Thread type | Metric |
| Pitch thread, mm | 2 |
| Flat cable coupling | No |
| Suitable for cable diameter, mm | 75...75 |
| Nominal thread size metric/PG | 75 |
| Type of a cable gland for: | Armoured cable with a thread on the female surface |
| Threading | M75х1,5 Metric |
| Diameter of cable | From 65 to 75 mm |
| Marking | 1Ex db IIC Gb , 1Ex e IIC Gb , 2Ex nR IIC Gc , Ex ta IIIC Da , РВ Ex db I Mb , PП Ex e I Mc |
| Temperature range | From - 60 to +200 ° C |
| Connecting thread Type | М90х2 |
| Material | Nickel plated brass |

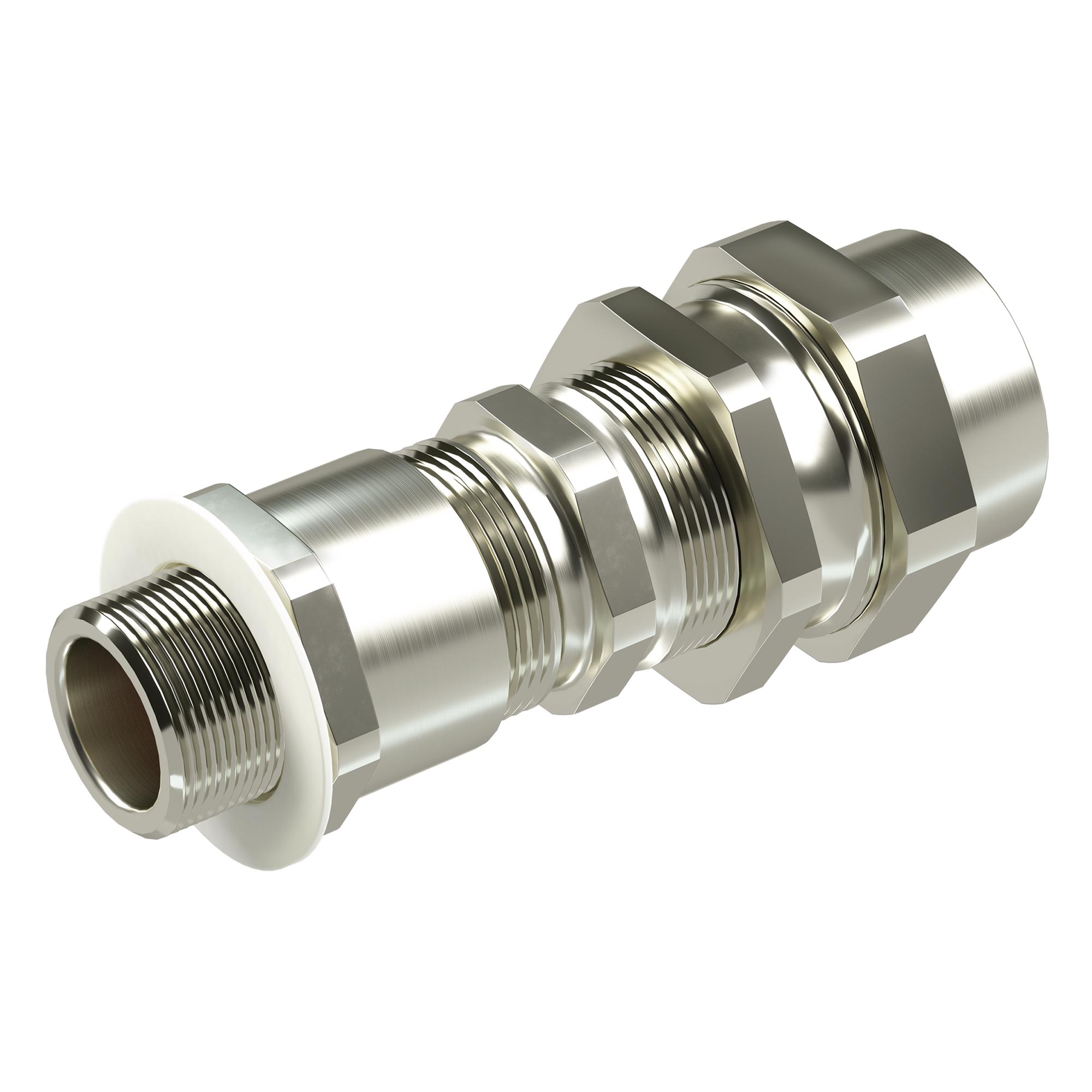

| Product type | Cable input for tubes |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.33.13.120 |
| Commodity Nomenclature of Foreign Economic Activity | 7412200000 |
