| Width, mm | 550 |
| Height, mm | 350 |
| Depth, mm | 200 |
| Material | Stainless steel |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Model | Box with lid, fastening the lid to the lock and hinges |
| Material | Stainless steel AISI 304 |
| Marking | Ex e IIC Gb U / Ex tb IIIC Db U |
| Length | 550 mm |
| Weight | 9,64 kg |
| Temperature range | From -60 to + 60 °C |

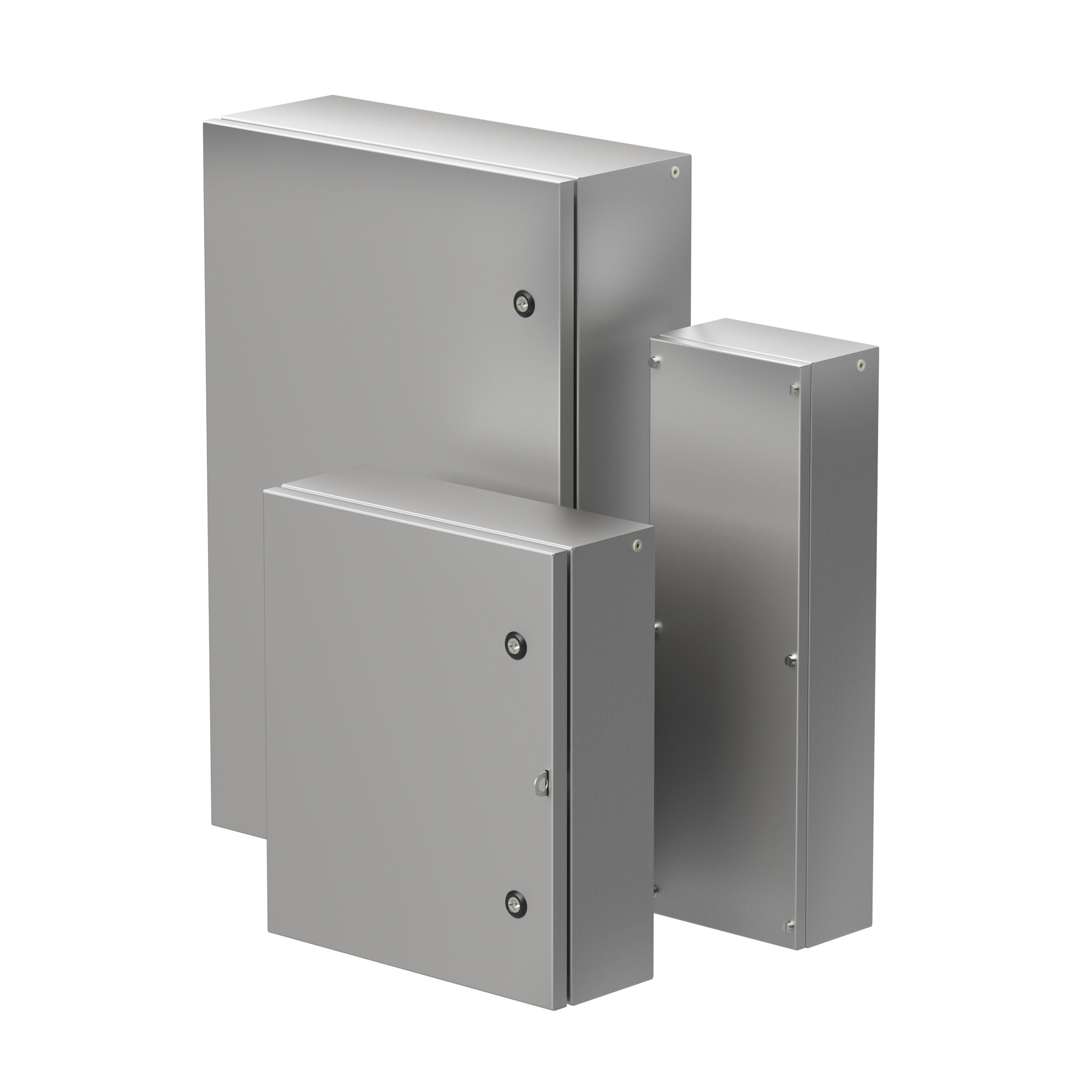

| Product type | Ex box |
| Type of protection | Ex e, tb |
| Width | 350 mm |
| Height | 200 mm |
