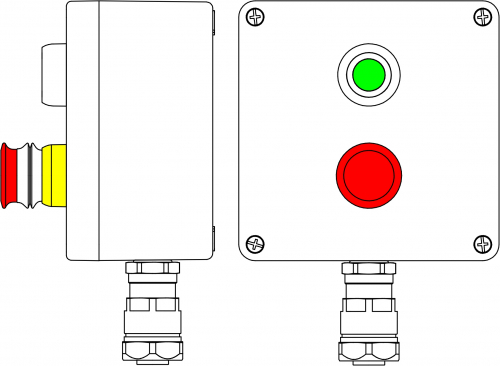

GRP terminal post 160x160x90мм 1Ex d e IIC T5 Gb X IP66 Ex tb IIIB T95C Db X Temperature Classes Т5 40°C Grounding rings Quantity of control elements: Contact block 1NC/1NO + Danger button P3E Red 1 pcs. Contact block 1NC/1NO + Button P1 Green 1 pcs. Quan
Code:
2231.051.19.00M
Code:
2231.051.19.00M
| Ex-class | IIC |
| Number of command positions | 2 |
| Suitable for emergency stop | Yes |
| Material housing | Metal |
| Number of push buttons | 3 |
| Number of mushroom-shaped push-buttons | 1 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Element controls 1 | Push-button |
| Type 1 element | 1 pc. x P1 green 1NC+1NO |
| Element controls 2 | Push-button |
| Type 2 element | 1 pc. x emergency P3E 1NC+1NO |
| Type of a cable gland for: | Unarmored cable in a flexible conduit COSMEC |
| Nominal diameter of the flexible conduit, mm | DN20 - cable diameter up to 15 mm |
| Installation side: C | 1 pc. x outer D: 8-13 mm |
| Material | PVC |
| Ex | d e, tb |
| Electrical equipment group | IIC hydrogen |
| Geometric dimensions | 160x160x90 mm |
| Number of controls | 2 pcs. |
