Nominal voltage, V | 230 |
Mounting method | Flush mounted (plaster) |
Method of operation | Rocker/button |
Colour | Black |
Illumination | Possible to install an additional LED backlight |
Rated current, A | 16 |
Material quality | Thermoplastic |
Material | Plastic |
Type of fastening | Screw mounting |
Number of rockers | 1 |
Surface finishing | Matt |

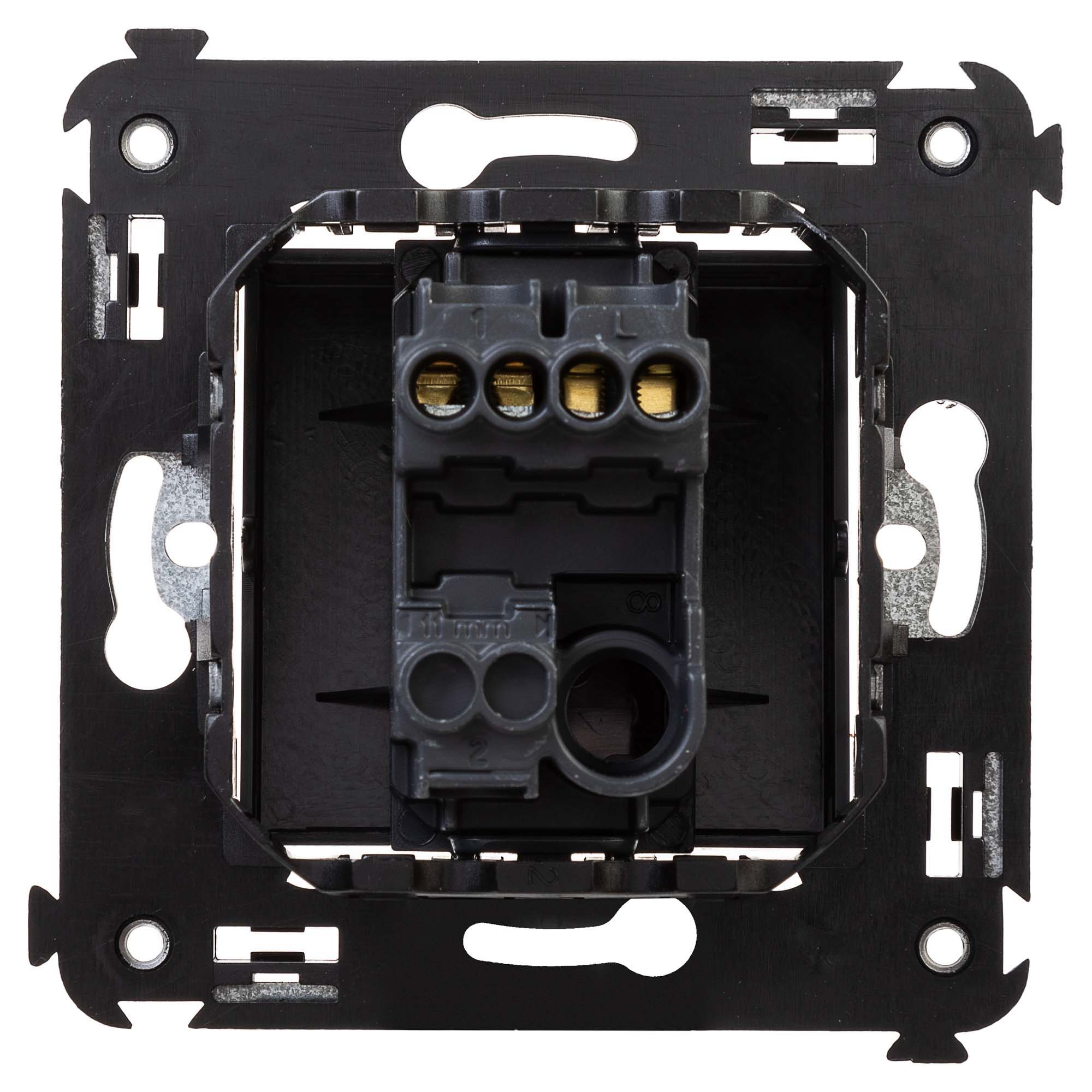

Connection type | Screwed terminal |
Number of modules (module system) | 2 |
Surface protection | Decor |
Assembly arrangement | Basic element with central cover plate |
Modular version | No |
Wiring system | Off switch 2x1-pole |
Push button switch | No |
Suitable for degree of protection (IP) | IP20 |

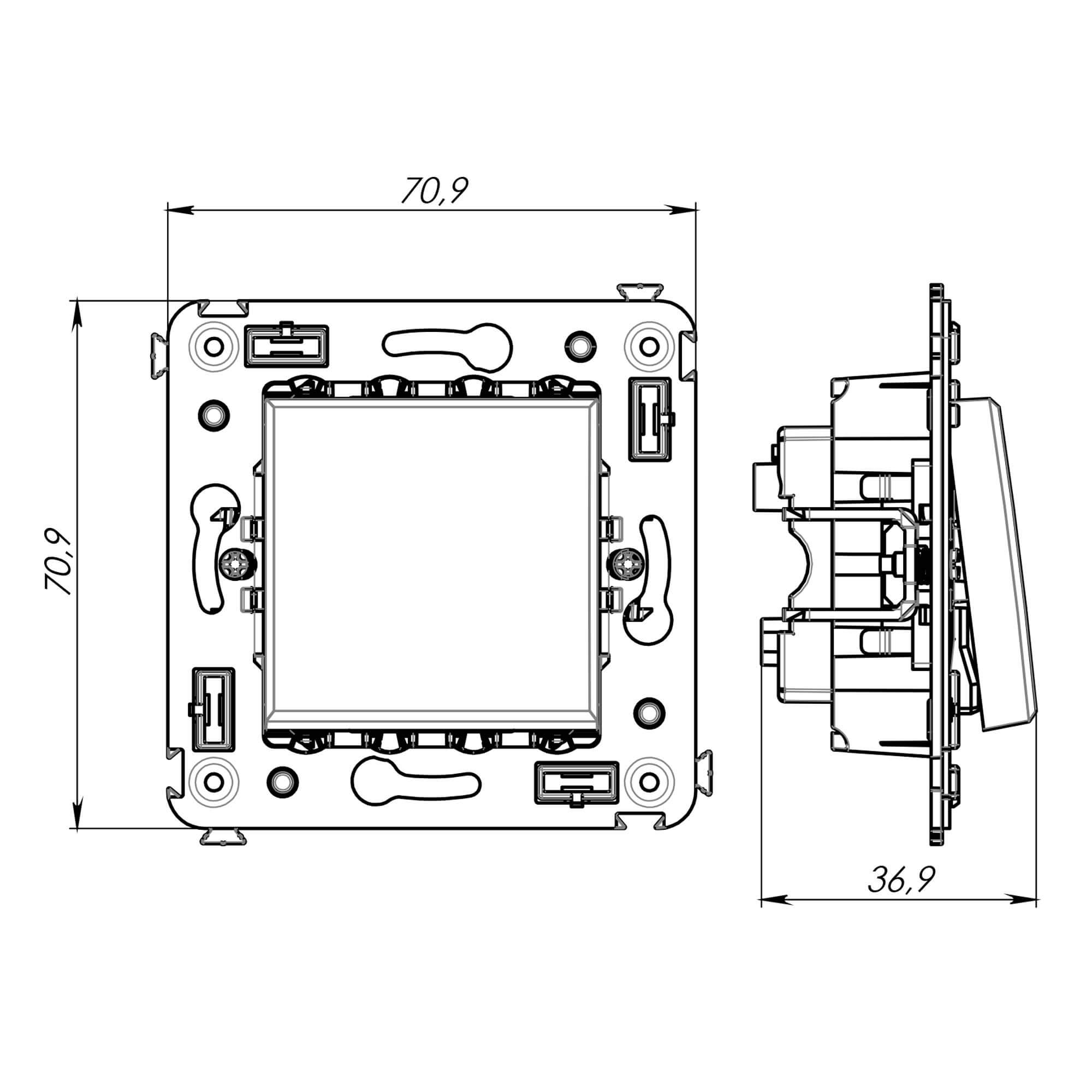

Width of device, mm | 70.9 |
Height of device, mm | 70.9 |
Depth of device, mm | 36.9 |
Label space/information surface | No |
Color | black matte |
Number of modules | 2 |
Material | PVC |
Product type | Switch |
Type of installation | concealed installation |
