Flush mounting schuko socket Avanti, 2P+E, screw terminals, 2 mod.,black square
Code:
4402003
Code:
4402003
| Nominal current, A | 16 |
| Nominal voltage, V | 230 |
| Mounting method | Flush mounted (plaster) |
| Number of units | 1 |
| Material quality | Thermoplastic |
| Surface finishing | Glossy |
| Connection type | Screwed terminal |
| Colour | Black |

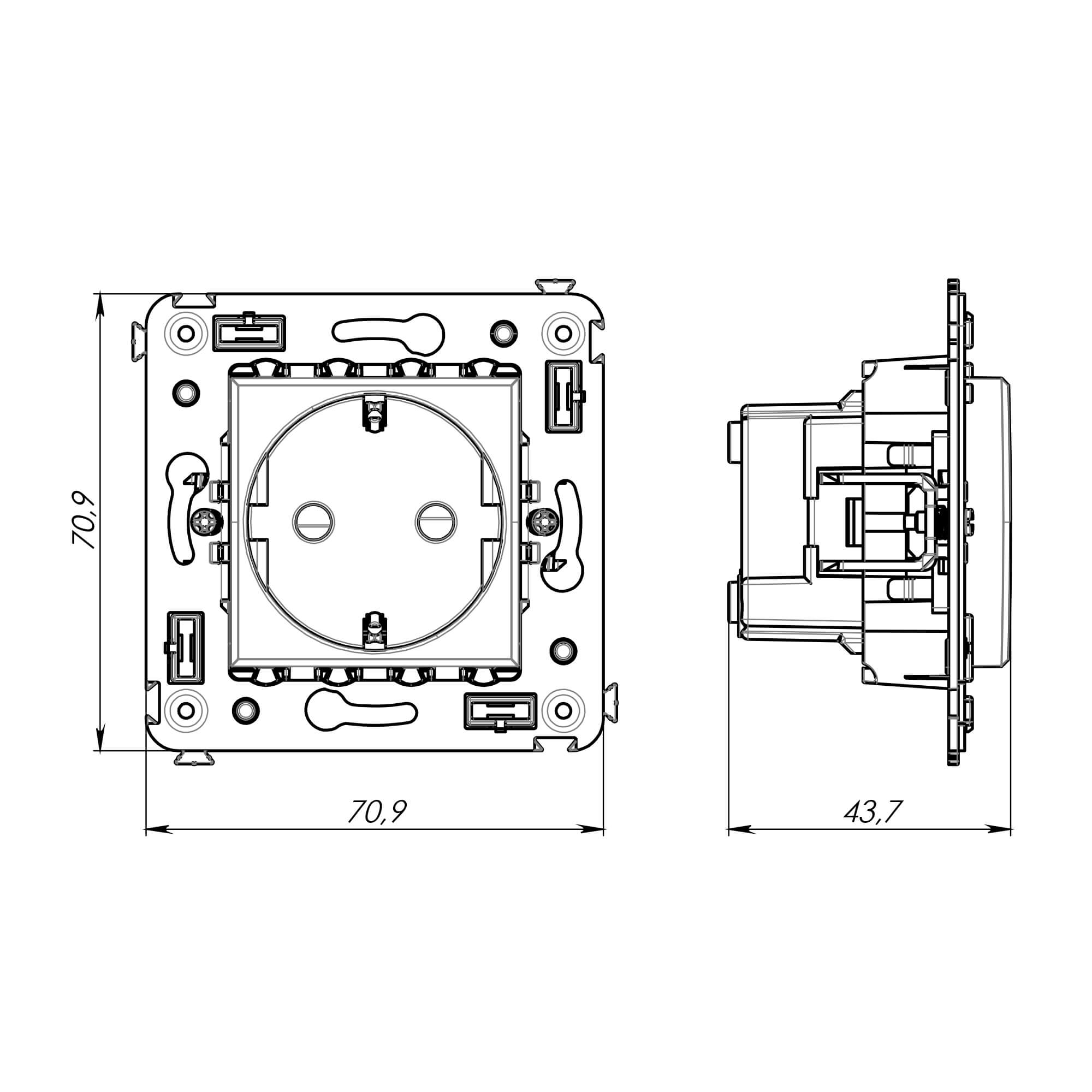

| Width of device, mm | 70.9 |
| Height of device, mm | 70.9 |
| Halogen free | Yes |
| Surface protection | Decor |
| Special power supply | No special power supply |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| With hinged lid | No |
| Antibacterial treatment | Yes |
| With child-protection | Yes |
| With on/off switch | No |
| Label space/information surface | No |
| Over voltage protection | No |
| Fault current protection | No |
| Imprint/indication | Without imprint |
| Suitable for degree of protection (IP) | IP20 |
| With function lighting | No |
| With orientation lighting | Yes |
| Model | Protective contact (SCHUKO) |
| Depth of device, mm | 43.7 |
| Modular version | No |
| Color | black square |
| Number of modules | 2 |
| Material | PVC |
| Product type | Socket |
| Type of installation | concealed installation |
| Disponibility of a lid | No |
