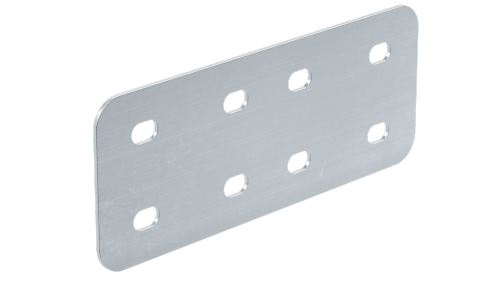

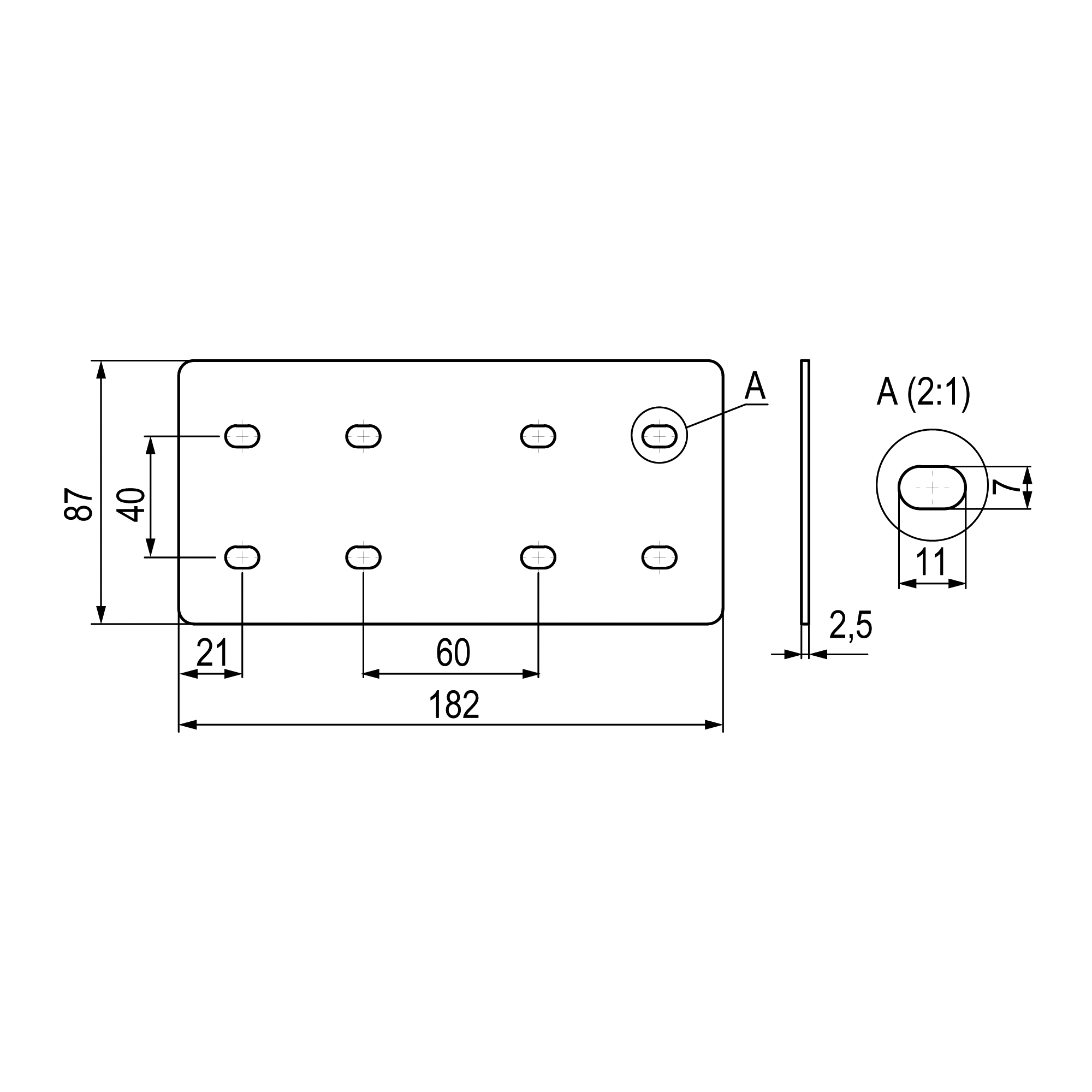

Connecting plate H=100, INOX316L

Surface protection	Other
Material quality	Stainless steel 316 (V4A)
Material	Stainless steel V4A
Suitable for wire mesh tray	No
Fitting for mesh cable tray filament, mm	No
Suitable for cable ladder	Yes
Suitable for cable duct	No

Suitable for cable management system height, mm	100
Hinged joint horizontal	No
Hinged joint vertical	No
Suitable for circuit integrity	No
Suitable for cable management system width, mm	50…600
Model	Longitudinal joint
Type of connection	Screw connector
