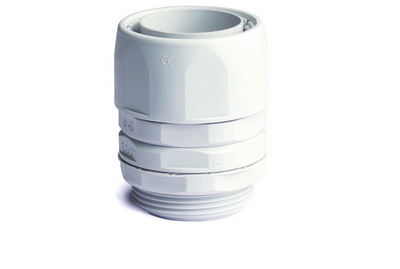

Coupling spiralled sheath-box, IP65, PG36, Ø 35mm
Code:
58121
Code:
58121
| Colour | Light grey |
| Model | Straight |
| Shock resistant | No |
| Type of sealing | Sealing ring |
| Material quality | Other |
| Operational temperature, °C | -25…60 |
| Thread type | PG |
| Material | Plastic |
| Explosion-tested version | No |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | No |
| Separable screw gland | No |
| Suitable for cable diameter, mm | 35 |
| Degree of protection (IP) | IP65 |
| For Ex-zone gas | None |
| Nominal thread size inch/gas pipe thread | 1 1/2 inch |
| For Ex-Zone dust | None |
| Color | gray |
| Material | PVC |
| Temperature of mounting, °C | -5°С ... +60°С |
| Ingress Protection rating, IP | IP65 |
| Temperature of operation, °C | from -25°С to +60°С |
| Diameter (nominal), mm | 35 |
| Threading | PG36 |
