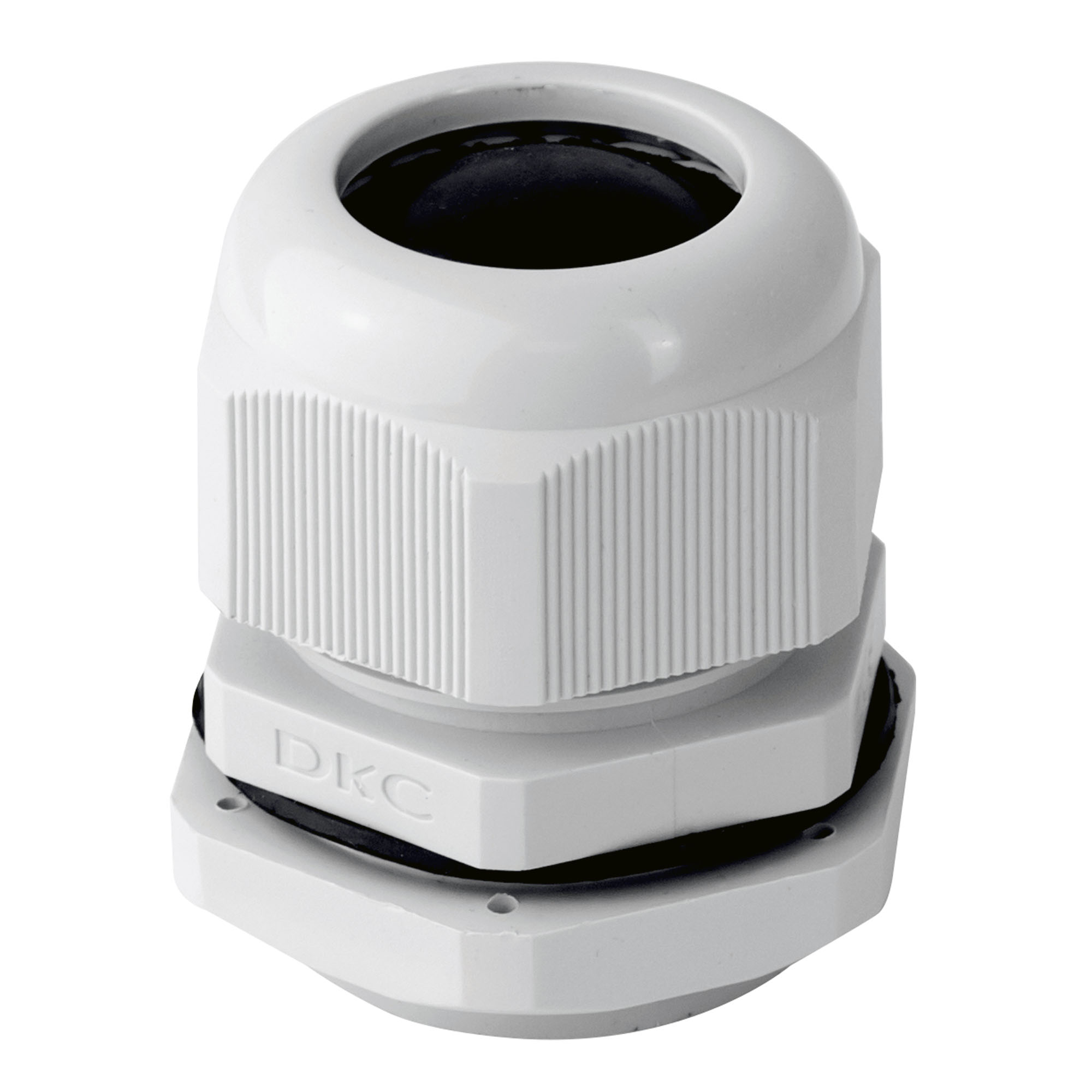

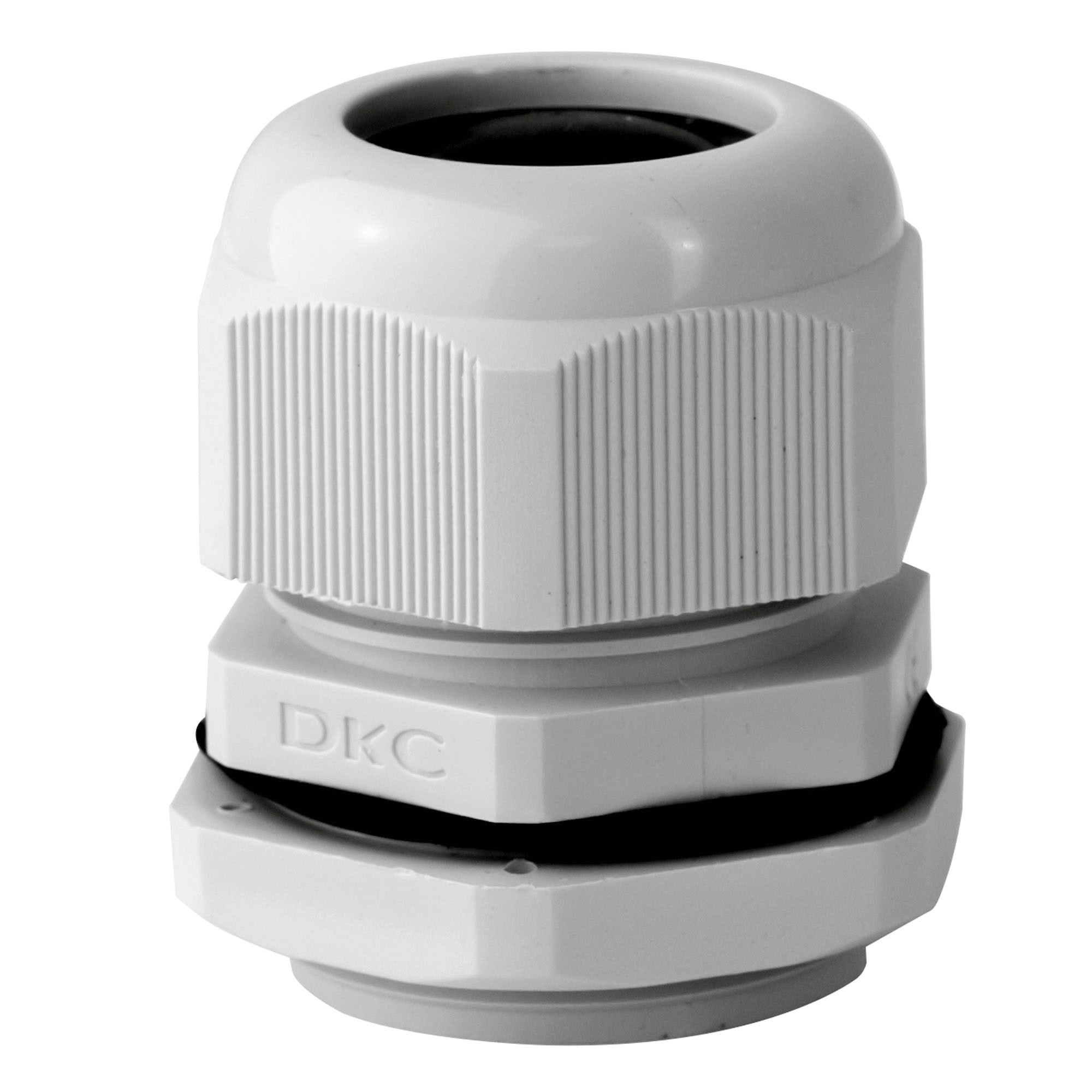

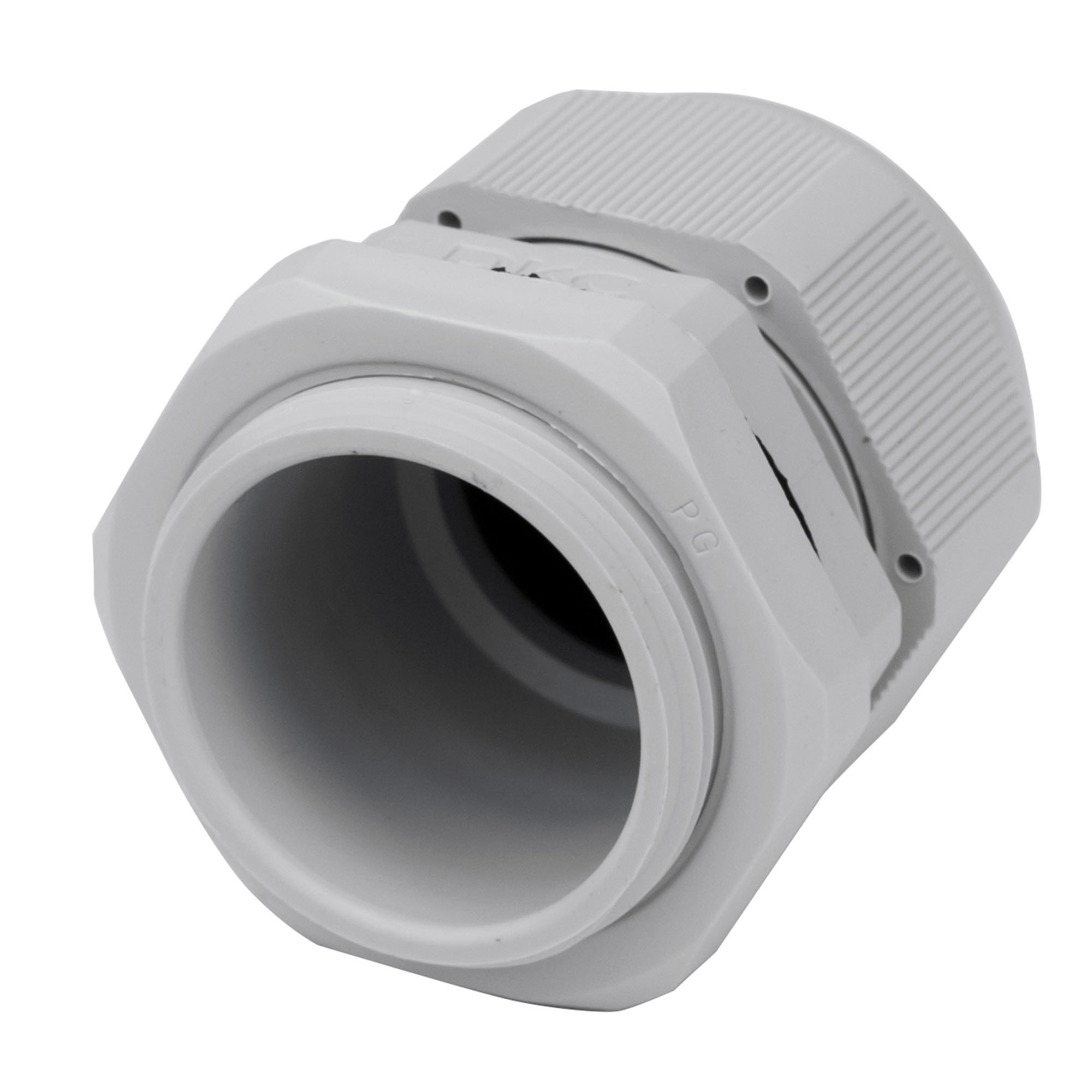

Cable gland with locknut, IP68, PG42, Ø 28 - 38mm
Code: 53300
Cable gland with locknut, IP68, PG42, Ø 28 - 38mm
Code: 53300
Colour | Light grey |
Model | Straight |
Shock resistant | Yes |
Thread length, mm | 14 |
Type of sealing | Sealing ring |
Material quality | Polyamide (PA) |
Operational temperature, °C | -25...60 |
Thread type | PG |
Material | Plastic |
Explosion-tested version | Yes |
Flat cable coupling | Yes |
Multi seal area | Yes |
With locknut | Yes |
Separable screw gland | Yes |
Suitable for cable diameter, mm | 28...38 |
For Ex-Zone dust | None |
Wrench width, mm | 64 |
Halogen free | Yes |
Color | gray |
-5°С ... +60°С | -25°С ... +60°С |
Ingress Protection rating, IP | IP68 |
от -25°С до +60°С | from -25°С to +60°С |
Threading | PG42 |
Product type | Cable gland with locknut |
ТУ 2248-012-47022248-2009 | Technical specifications 2248-012-47022248-2009 |
3 года | 3 years |
15 лет | 15 years |
Certificates
Name | Document |
---|---|
