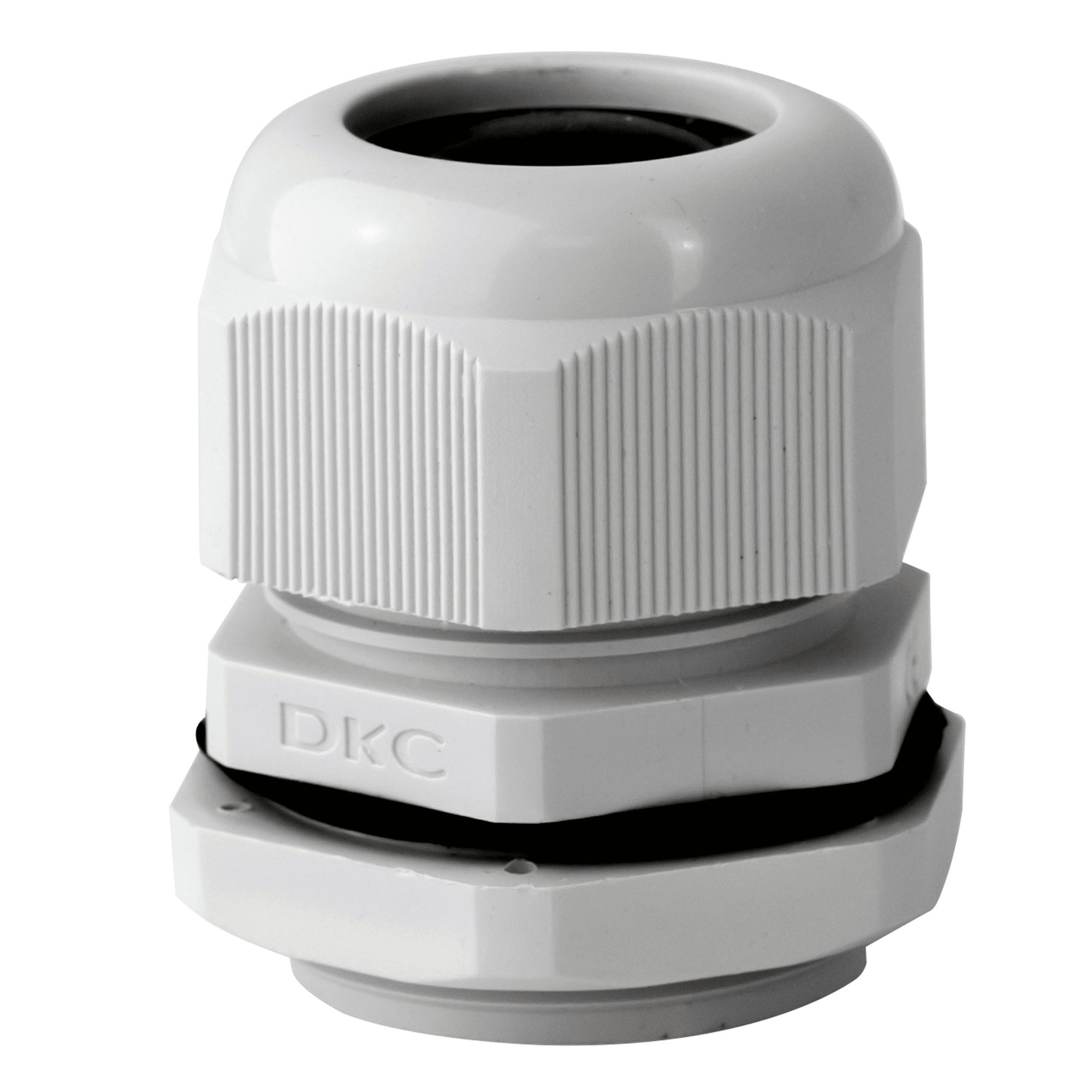

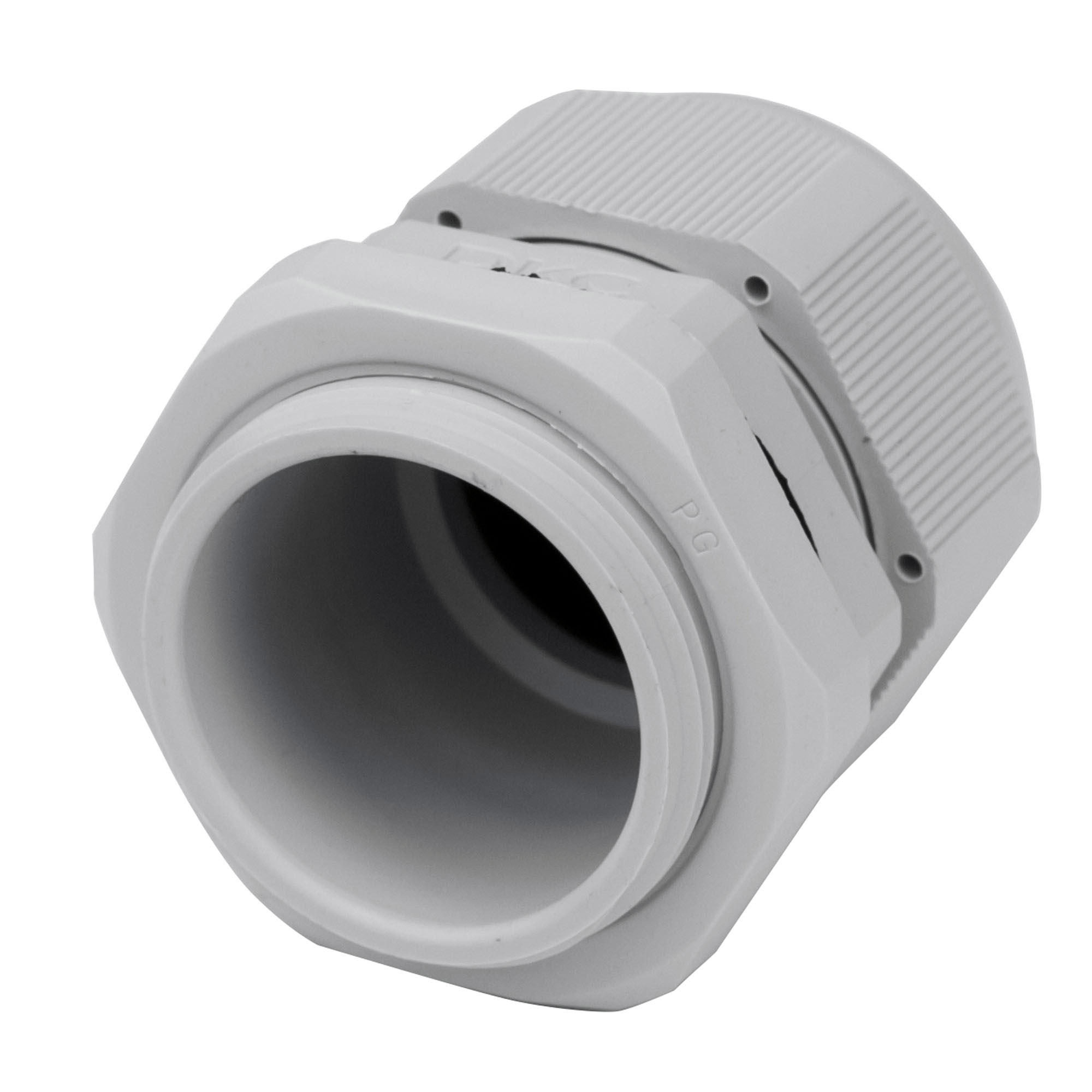

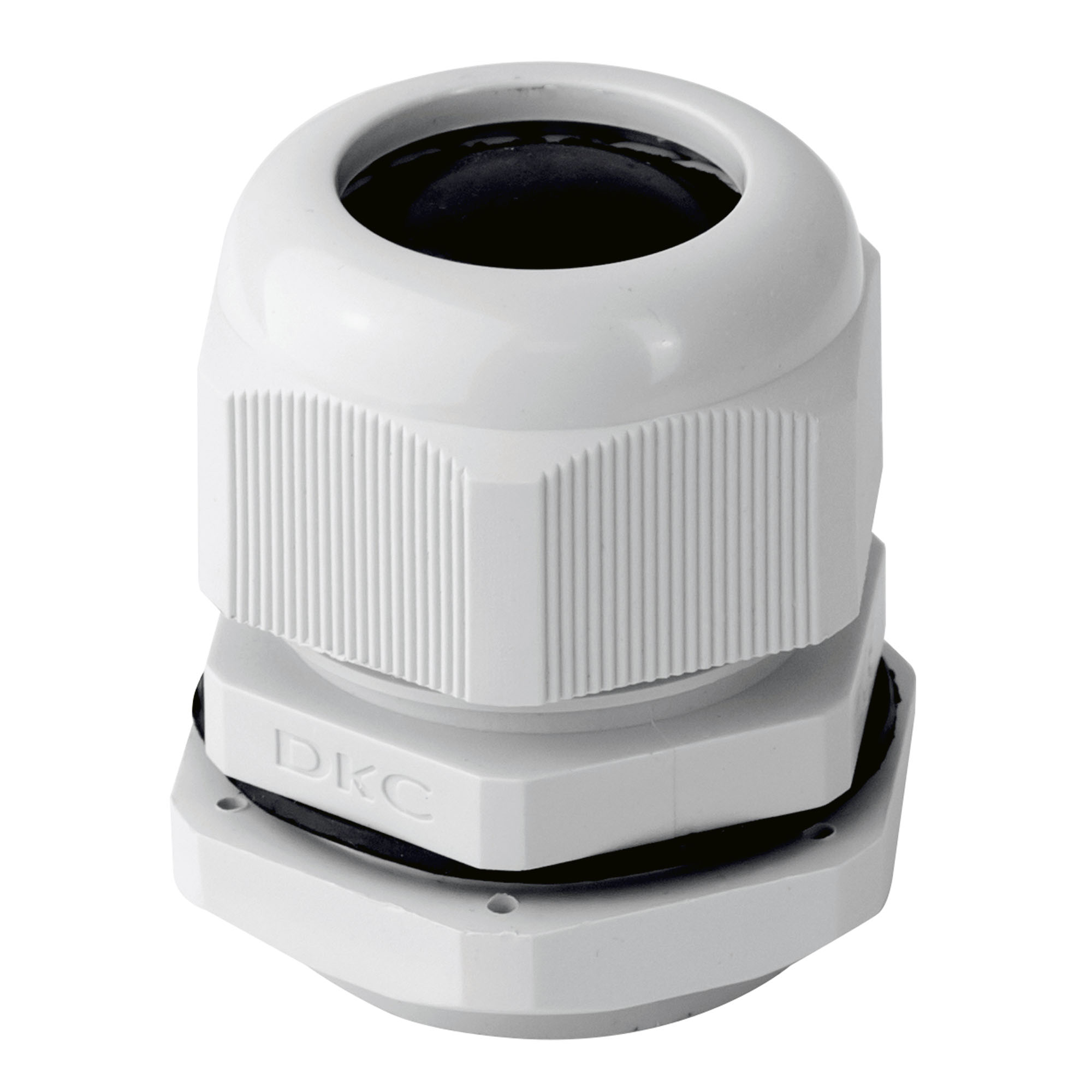

Cable gland with locknut, IP68, PG9, Ø 4 - 8mm (retail packaging)
Code: 52600R
Cable gland with locknut, IP68, PG9, Ø 4 - 8mm (retail packaging)
Code: 52600R
| Colour | Light grey |
| Model | Straight |
| Shock resistant | Yes |
| Thread length, mm | 8 |
| Type of sealing | Sealing ring |
| Material quality | Polyamide (PA) |
| Operational temperature, °C | -25...60 |
| Thread type | PG |
| Material | Plastic |
| Explosion-tested version | Yes |
| Flat cable coupling | Yes |
| Multi seal area | Yes |
| With locknut | Yes |
| Separable screw gland | Yes |
| Suitable for cable diameter, mm | 4...8 |
| For Ex-Zone dust | None |
| Wrench width, mm | 22 |
| Halogen free | Yes |
| Color | gray |
| -5°С ... +60°С | -25°С ... +60°С |
| Ingress Protection rating, IP | IP68 |
| от -25°С до +60°С | from -25°С to +60°С |
| Threading | PG9 |
| Product type | Cable gland with locknut |
| ТУ 2248-012-47022248-2009 | Technical specifications 2248-012-47022248-2009 |
| 3 года | 3 years |
| 15 лет | 15 years |
Certificates
| Name | Document |
|---|---|
