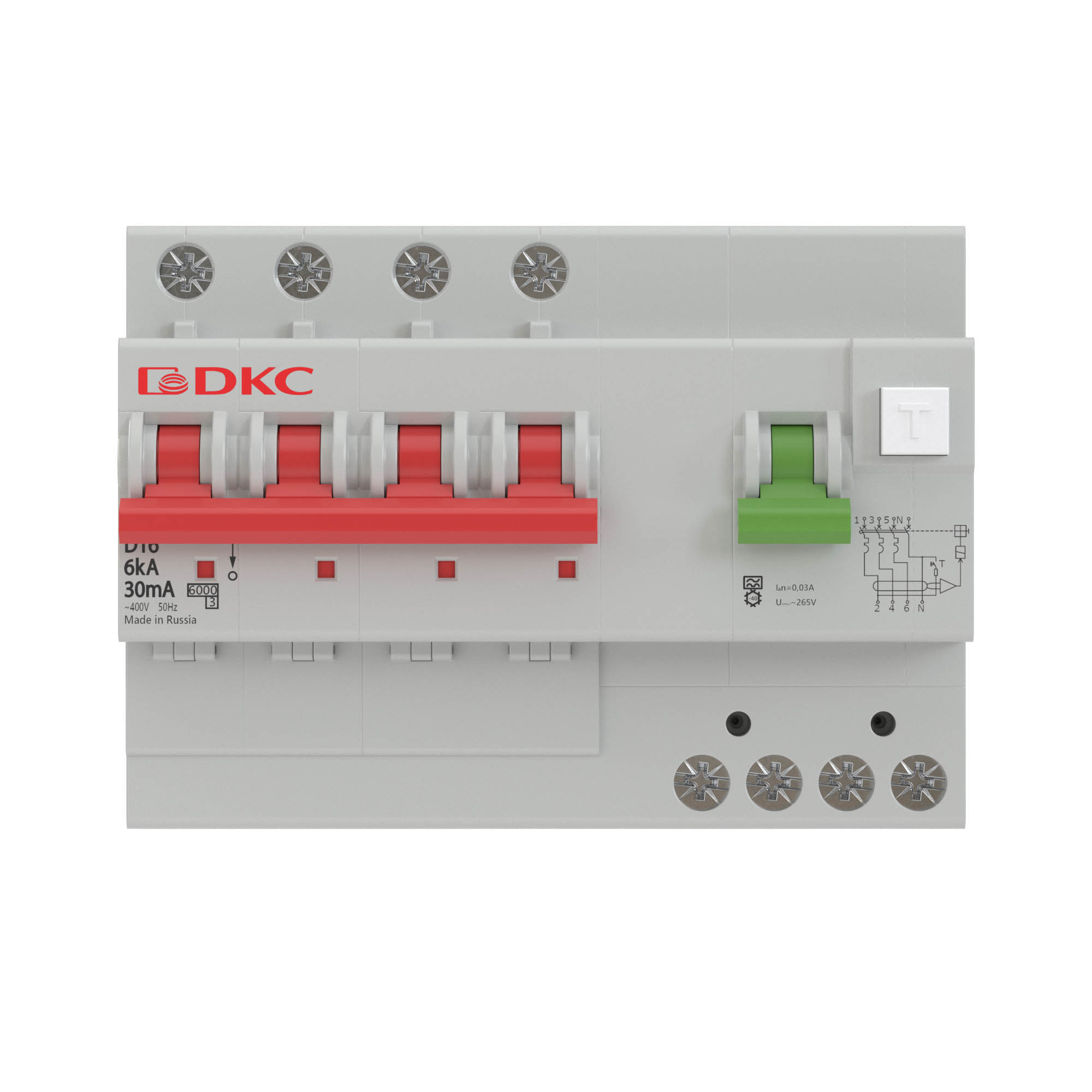

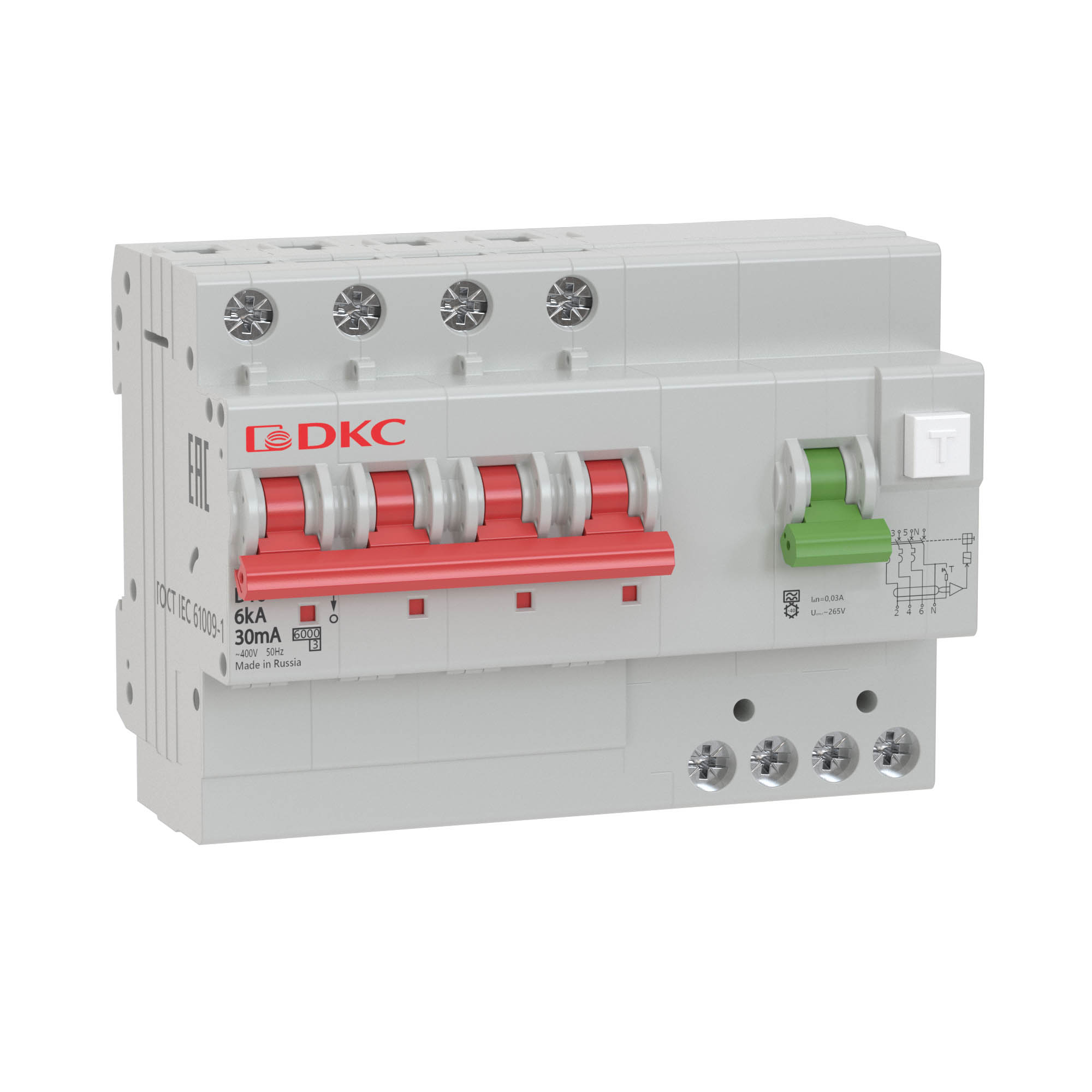

Residual-current circuit breaker (RCCB) with overcurrent protection YON MDV63-41C16-A (4p, 10mA)
Code:
MDV63-41C16-A
Code:
MDV63-41C16-A
| Rated current, A | 16 |
| Rated voltage, V | 400 |
| Release characteristic | C |
| Rated fault current, A | 10 |
| Leakage current type | A |
| Width in number of modular spacings | 7 |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 3 |
| Concurrently switching N-neutral | Yes |
| Rated short-circuit breaking capacity IEC 60947-2, kA | 6 |
| Number of poles (total) | 4 |
