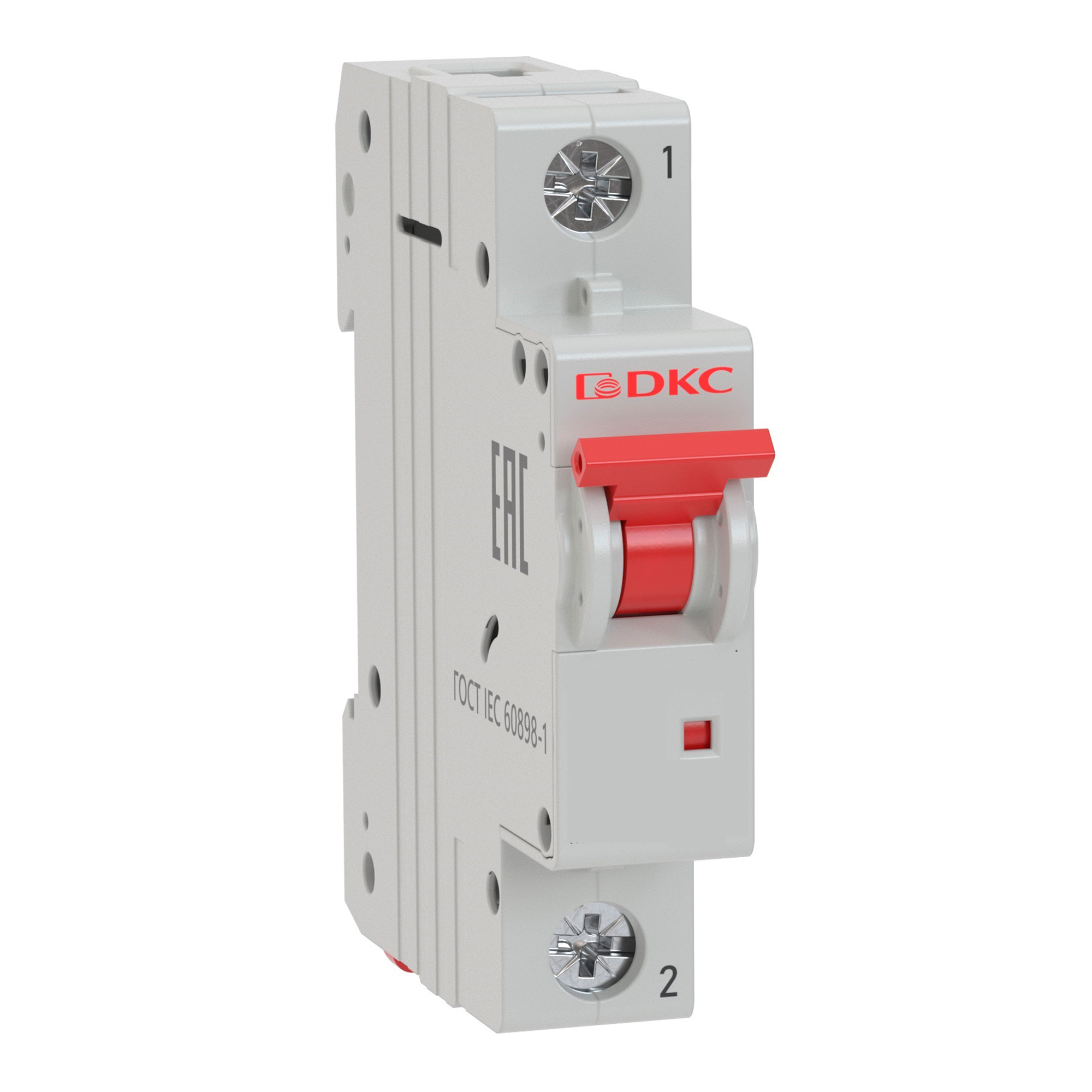

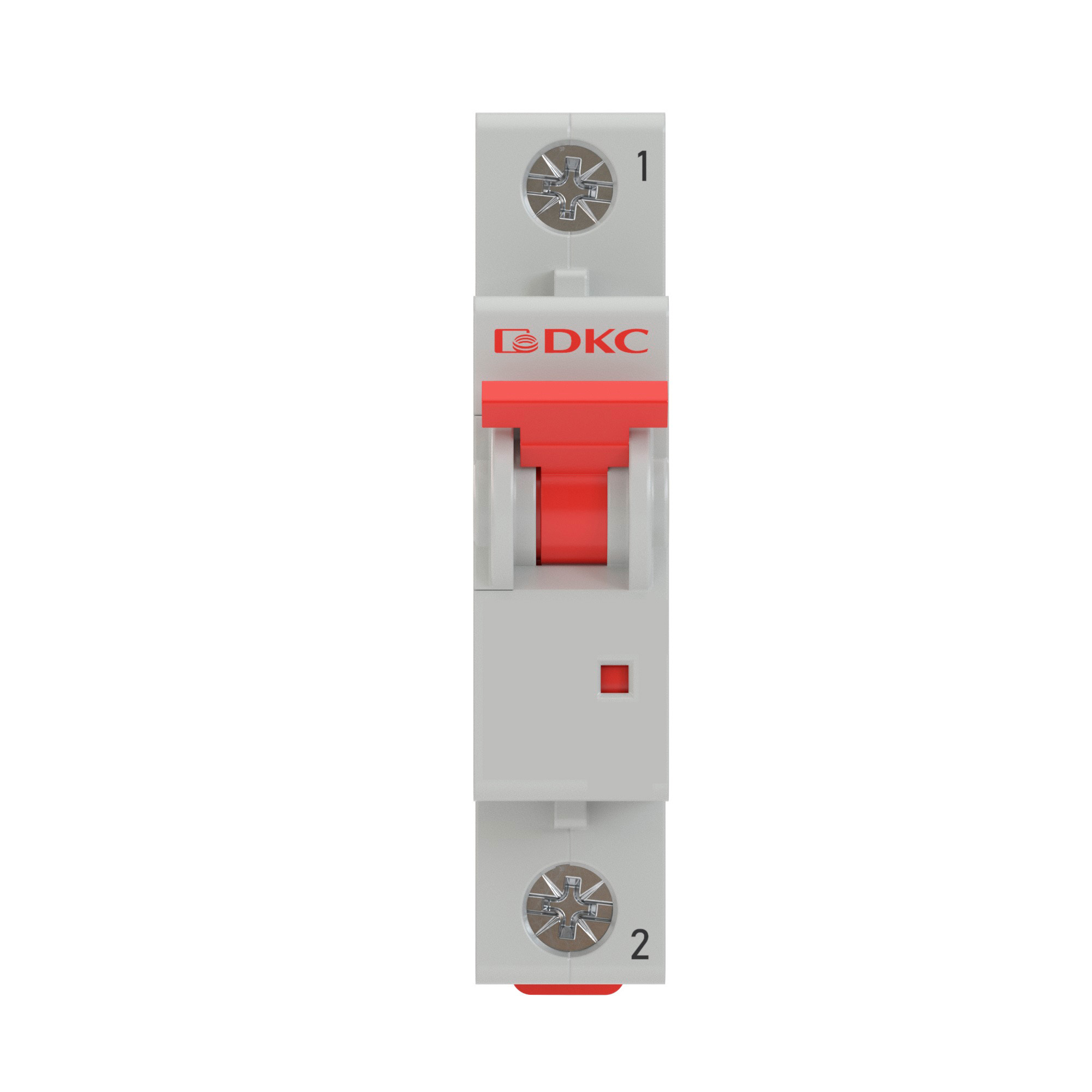

Modular circuit breaker YON MD63-1C5-10 10kA

Code: MD63-1C5-10

Modular circuit breaker YON MD63-1C5-10 10kA

Code: MD63-1C5-10
Removed from the product range
Built-in depth, mm 75
Rated current, A 5
Rated voltage, V 230
Release characteristic C
Current limiting class 3
Width in number of modular spacings 1
Degree of protection (IP) IP20
Concurrently switching N-neutral Yes
Additional equipment possible Yes
Number of poles (total) 1
Voltage type AC
Number of protected poles 1
Connectable conductor cross section multi-wired, mm² 25...25
Ambient temperature during operating, °C -60...40
Rated insulation voltage Ui, V 230
Over voltage category 4
Pollution degree 3
Connectable conductor cross section solid-core, mm² 25...25
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA 10
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA 10
Rated impulse withstand voltage Uimp, kV 4
