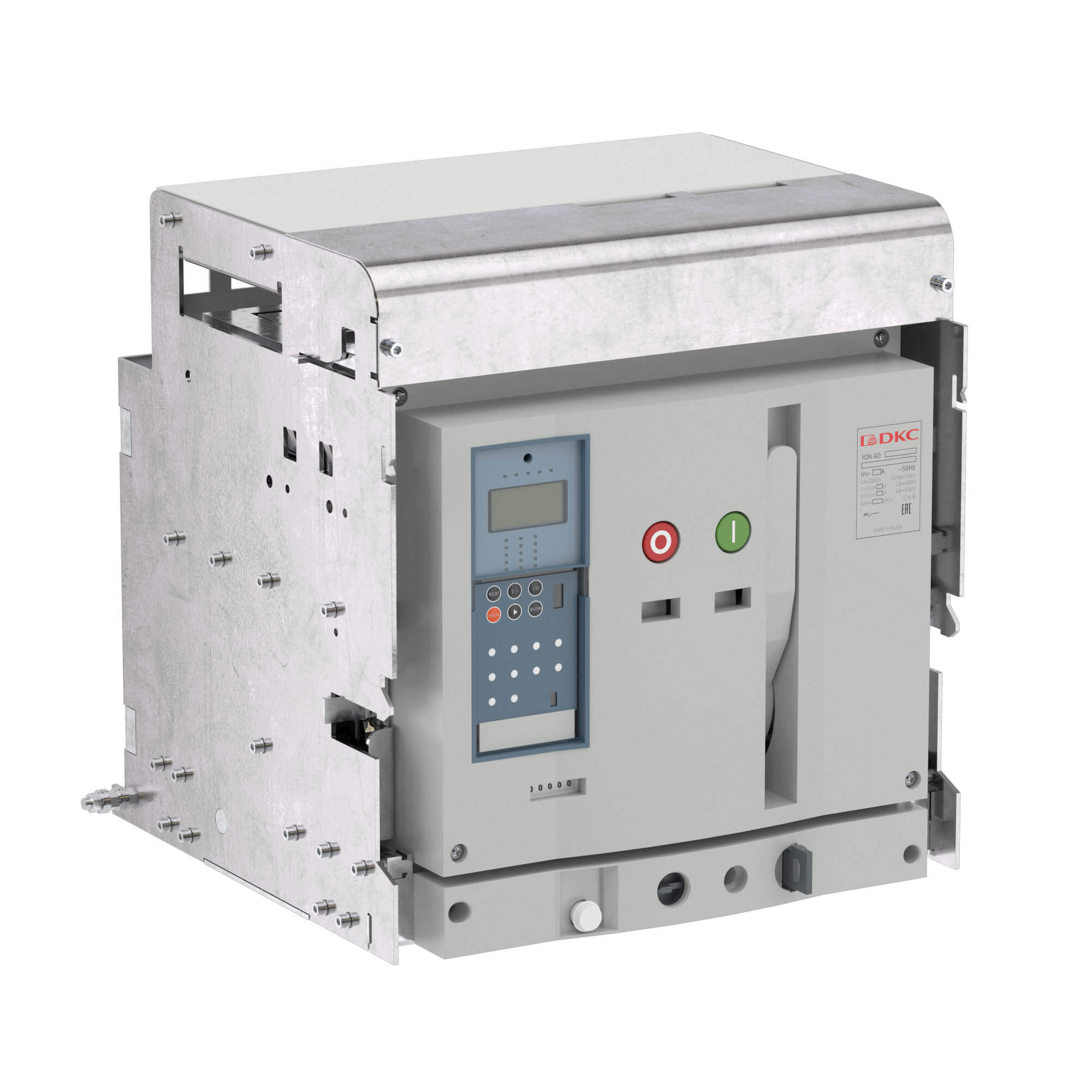

Air Circuit Breaker YON AD-4000-S4-3P-100-D-MR8.0-B-C2200-M2-P01-S1-09 withdrawable, 4000А, 100kA, LSIG, Openning/Closing Coil, Motor Operator 220V AC/DC add.continuation 6a+6b, protective frame
Code:
4043100D8B22200119
Code:
4043100D8B22200119
| Rated permanent current Iu, A | 4000 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 100 |
| Overload release current setting, A | 0.4...1 |
| Type of electrical connection of main circuit | Rail connection |
| Device construction | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting | No |
| Number of auxiliary contacts as normally closed contact | 6 |
| Number of auxiliary contacts as normally open contact | 6 |
| With under voltage release | No |
| Number of poles | 3 |
| Type of control element | Push button |
| Motor drive optional | Yes |
| Motor drive integrated | Yes |
| Degree of protection (IP) | IP20 |
| Rated current In | 4000 A |
| Mounting design | draw-out |
| Breaking Capacity Limit Icu | 100 kA |
| Type release | MR8.0 |
| Accessories for remote control | Yes |
| Possibility of setting the contact position of the switch in the basket | Yes |
| The presence of a microprocessor release | Electronic |
