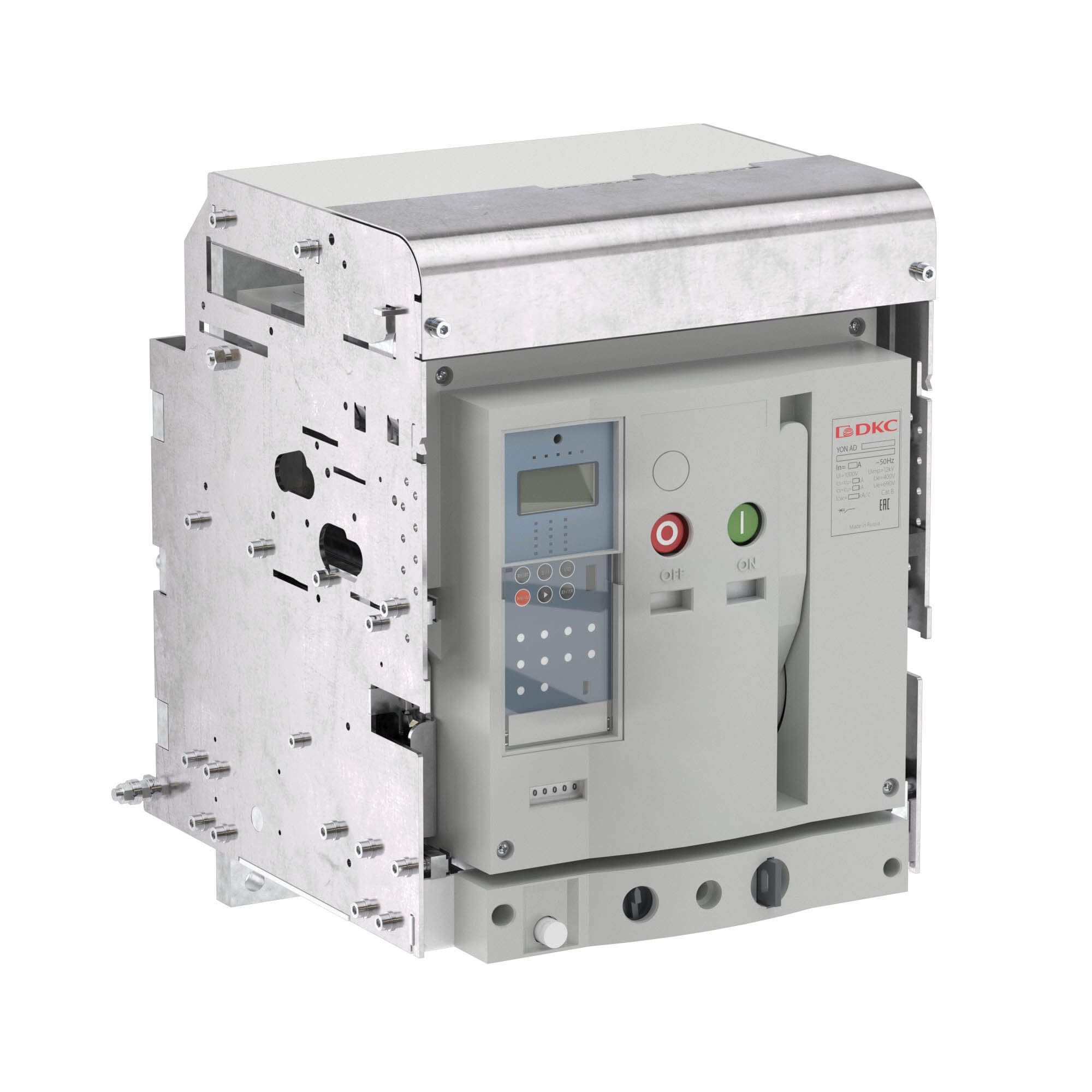

Air Circuit Breaker YON AD-1600-S2-3P-85-F-MR8.0-B-C2200-M2-P00-S1-09
Code:
162385F8B22200019
Code:
162385F8B22200019
| Rated permanent current Iu, A | 1600 |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 100 |
| Overload release current setting, A | 0.4...1 |
| Type of electrical connection of main circuit | Rail connection |
| Device construction | Built-in device slide-in technique (withdrawable) |
| Suitable for DIN rail (top hat rail) mounting | No |
| Number of auxiliary contacts as normally closed contact | 6 |
| Number of auxiliary contacts as normally open contact | 6 |
| With under voltage release | No |
| Number of poles | 3 |
| Type of control element | Push button |
| Motor drive optional | Yes |
| Motor drive integrated | Yes |
| Degree of protection (IP) | IP20 |
| Rated current In | 1600 A |
| Mounting design | Fixed |
| Breaking Capacity Limit Icu | 85 kA |
| Type release | MR8.0 |
| Accessories for remote control | Yes |
| Possibility of setting the contact position of the switch in the basket | Yes |
| The presence of a microprocessor release | Electronic |
