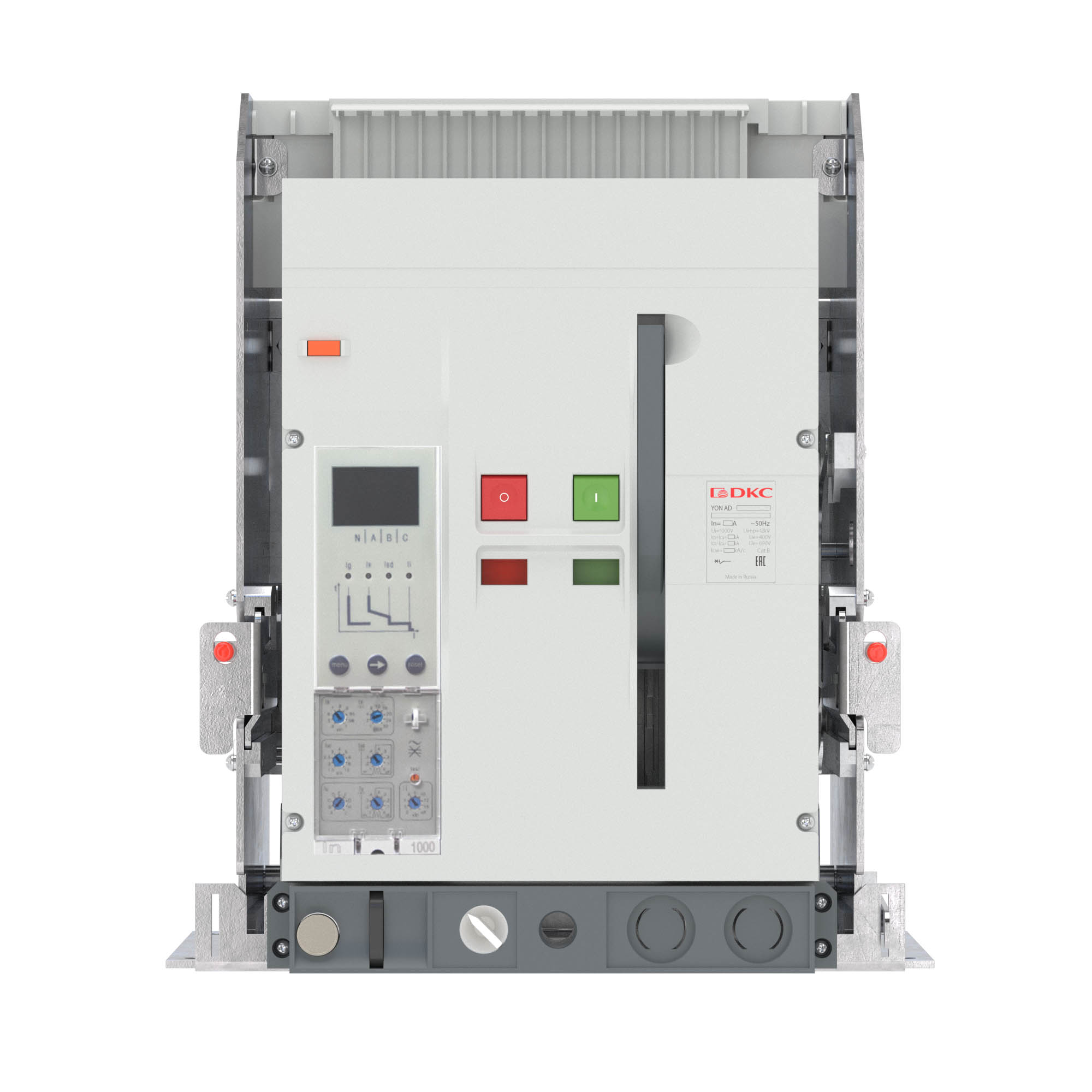

Air circuit breaker OptiMat A-1600-S1-3P-50-F-MR5.0-B-M2-C2200-P00-S2-03
Code:
161350F5B22200023
Code:
161350F5B22200023
| Number of auxiliary contacts as normally open contact | 6 |
| Number of auxiliary contacts as normally closed contact | 6 |
| Rated permanent current Iu, A | 1600 |
| Number of poles | 3 |
| Overload release current setting, A | 0.4…1 |
| Degree of protection (IP) | IP20 |
| Motor drive integrated | Yes |
| Type of electrical connection of main circuit | Rail connection |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz, kA | 50 |
| Suitable for DIN rail (top hat rail) mounting | No |
| Motor drive optional | Yes |
| With under voltage release | No |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Push button |
| Rated current In | 1600 A |
| Mounting design | Fixed |
| Breaking Capacity Limit Icu | 50 kA |
| Type release | MR5.0 |
| Accessories for remote control | Yes |
| Possibility of setting the contact position of the switch in the basket | No |
| The presence of a microprocessor release | Electronic |
