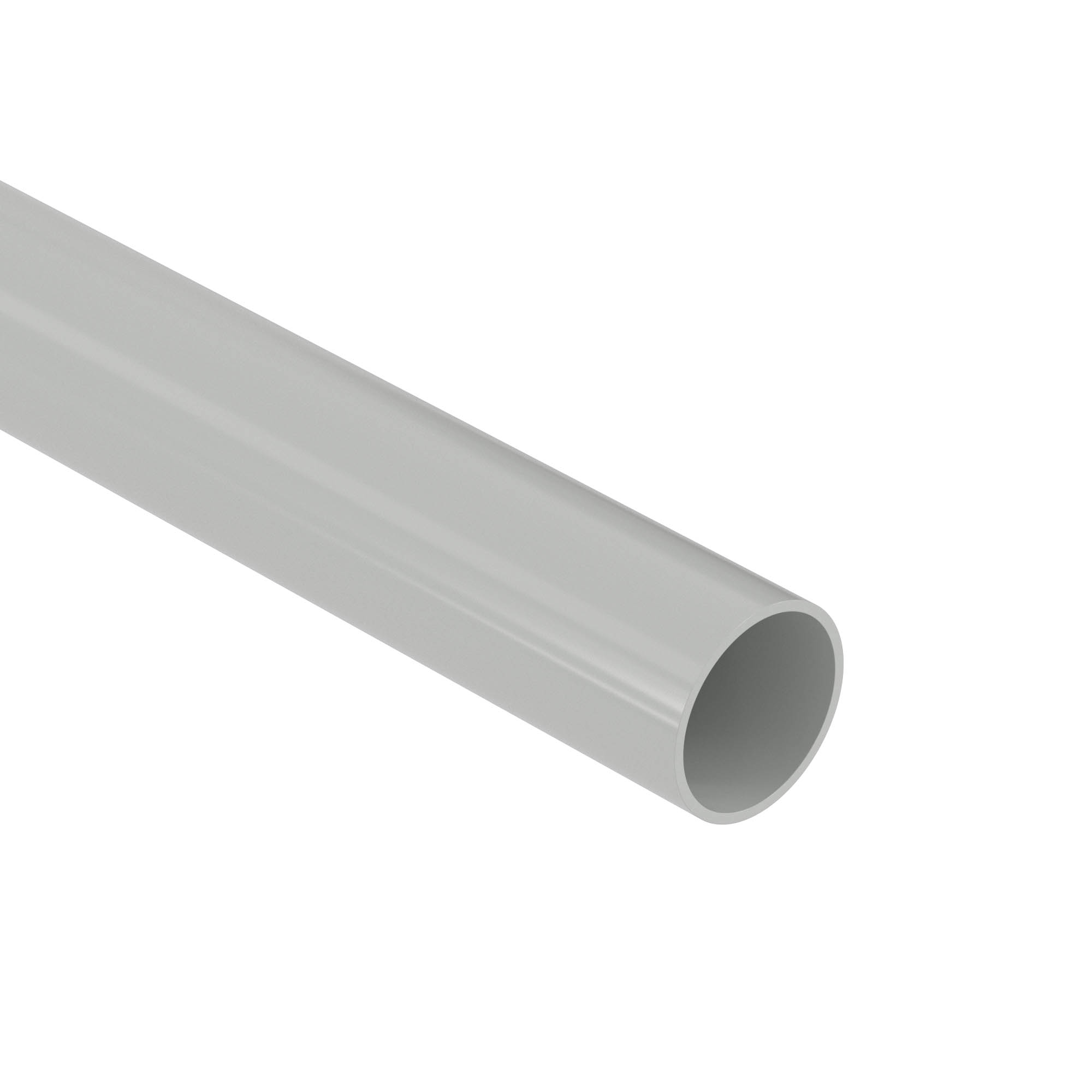

Tube PVC rigid, ? 32 mm, light version, 3 m, grey color

Code: 63932
Tube PVC rigid, ? 32 mm, light version, 3 m, grey color
  • To ask a question
Colour Grey
Outer diameter, mm 32
Halogen free НЕТ
Inner diameter, mm 29.2
Material Polyvinyl chloride (PVC)
EF002397 -25…60
Flush mounted (plaster) ДА
Surface mounted ДА
Suitable for concrete installation ДА
Machine and systems installation НЕТ
Suitable for subsurface installation (screed) ДА
Outdoor installation ДА
Suitable for installation on wood НЕТ
Suitable for hollow wall installation ДА
Suitable for underground installation Нет
Impact strength Heavy (class 4)
Compressive strength class Heavy (class 4)
Bending strength Rigid
With sleeve НЕТ
High conducting inner coating ДА
Length 3000 mm
Diameter (nominal) 32 mm
Color gray
-5°С ... +60°С -5°С ... +60°С
Ingress Protection rating, IP IP67
от -25°С до +60°С from -25°С to +60°С
Shock resistance, J >1 at -25°С; >2 at -5°С
Fire protection It is not spread combustion (GOST R 53313-2009)
Product type Tube PVC rigid
ТУ 2248-012-47022248-2009 Technical specifications 2248-012-47022248-2009
3 года 3 years
15 лет 15 years
