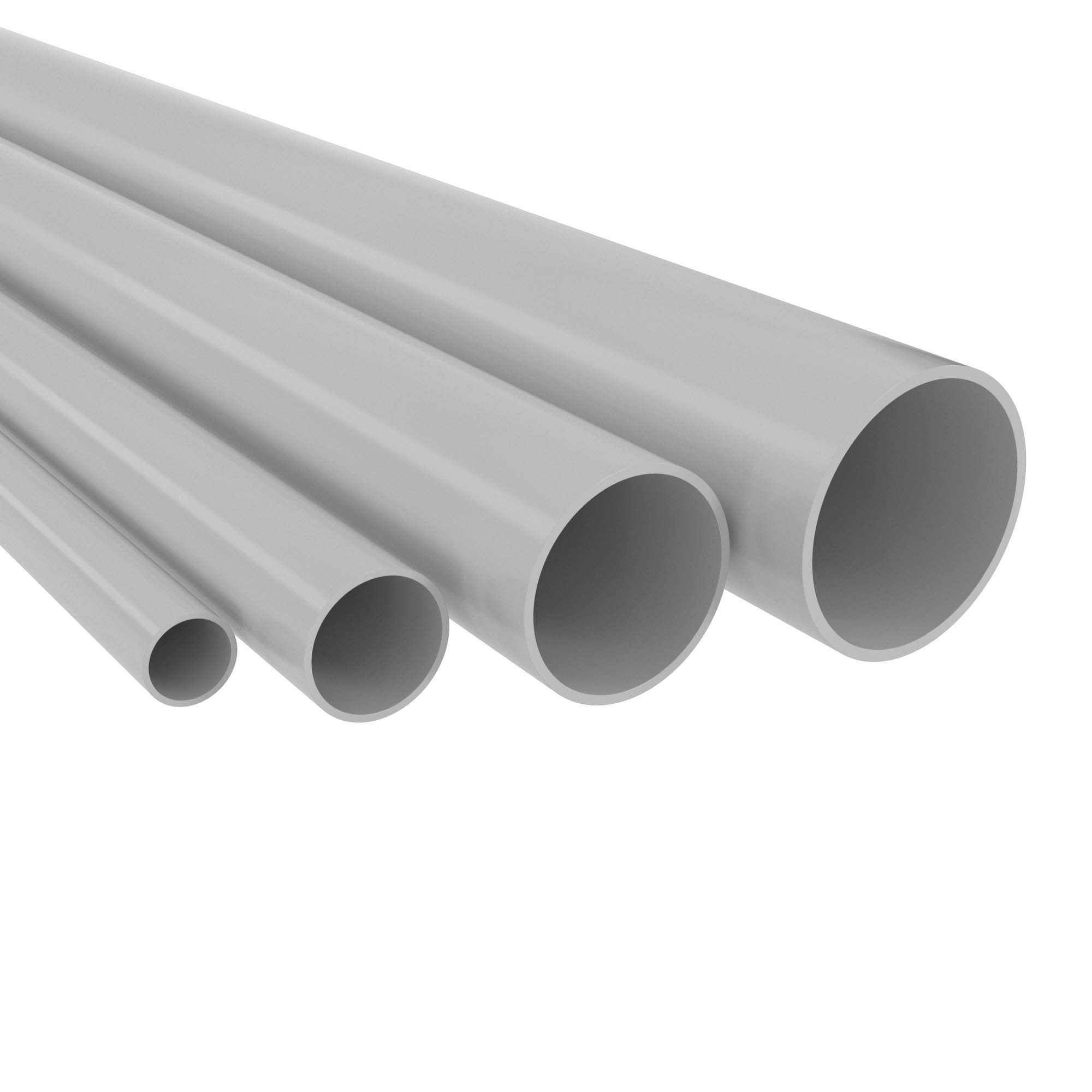

Tube PVC rigid, ? 25 mm, light version, 3 m, grey color

Code: 63925
Tube PVC rigid, ? 25 mm, light version, 3 m, grey color
  • To ask a question
Colour Grey

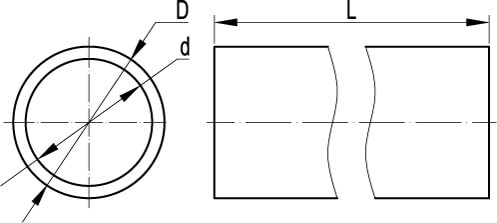

Outer diameter, mm 25
Halogen free No
Inner diameter, mm 22.7
Material PVC
Operating temperature, °C -25…60
Flush mounted (plaster) Yes
Surface mounted Yes
Suitable for concrete installation Yes
Machine and systems installation No
Suitable for subsurface installation (screed)) Yes
Outdoor installation Yes
Suitable for installation on wood No
Hollow wall Yes
Underground No
Impact strength Heavy (class 4)
Compressive strength class Heavy (class 4)
Bending strength Rigid
With sleeve No
High conducting inner coating Yes
Length 3000 mm
Diameter (nominal) 25 mm
Color gray
-5°С ... +60°С -5°С ... +60°С
Ingress Protection rating, IP IP67
от -25°С до +60°С from -25°С to +60°С
Shock resistance, J >1 at -25°С; >2 at -5°С
Fire protection It is not spread combustion (GOST R 53313-2009)
Product type Tube PVC rigid
ТУ 2248-012-47022248-2009 Technical specifications 2248-012-47022248-2009
3 года 3 years
15 лет 15 years
