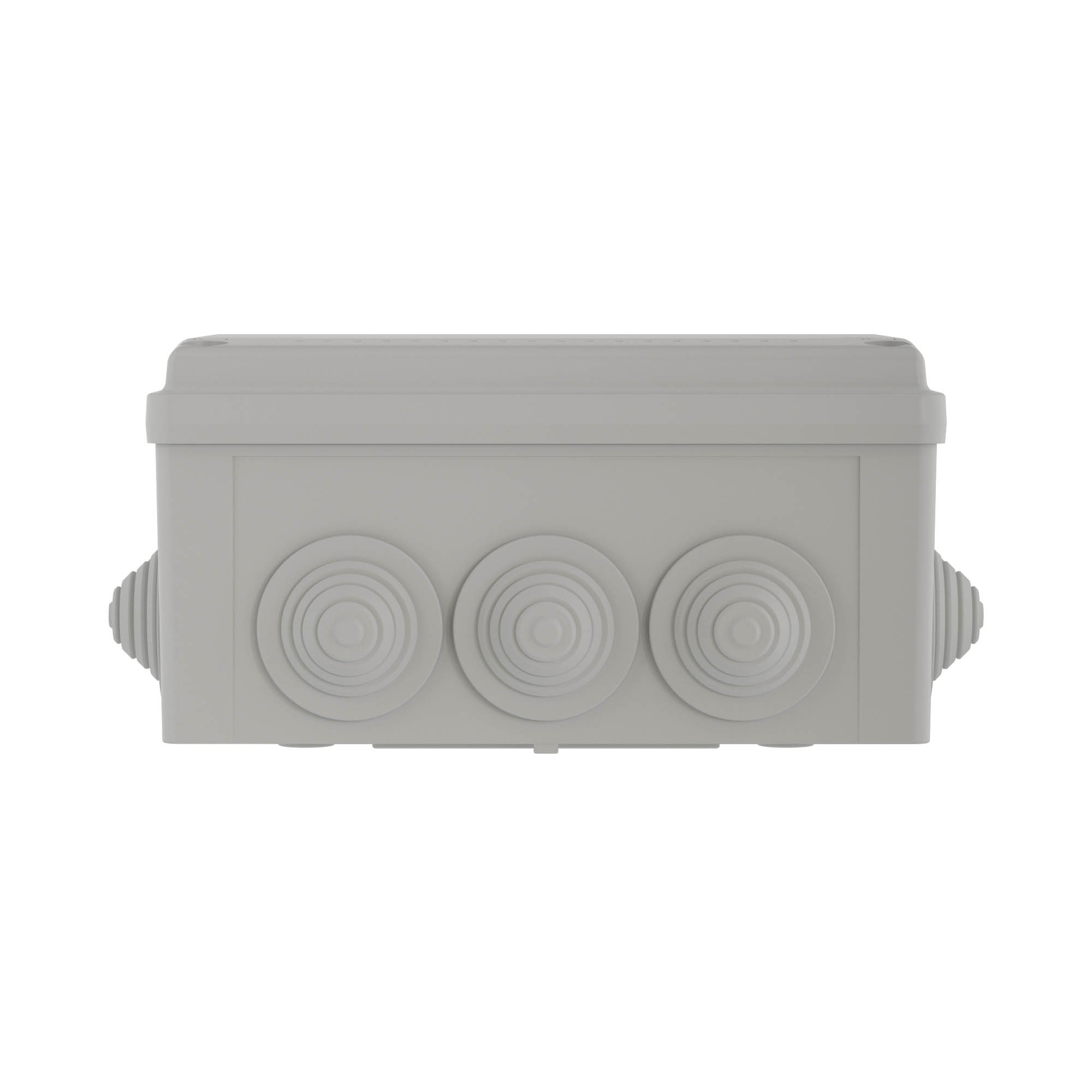

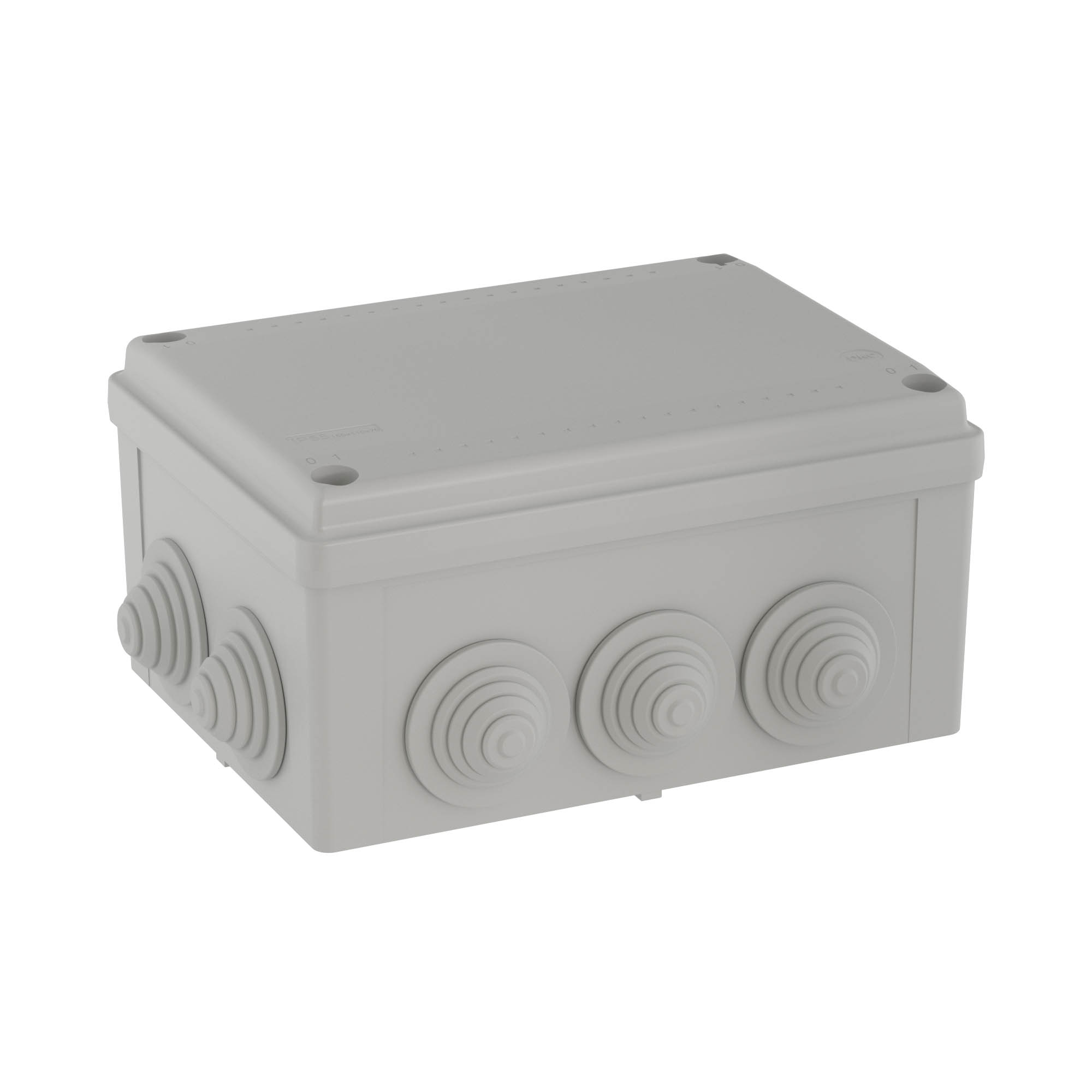

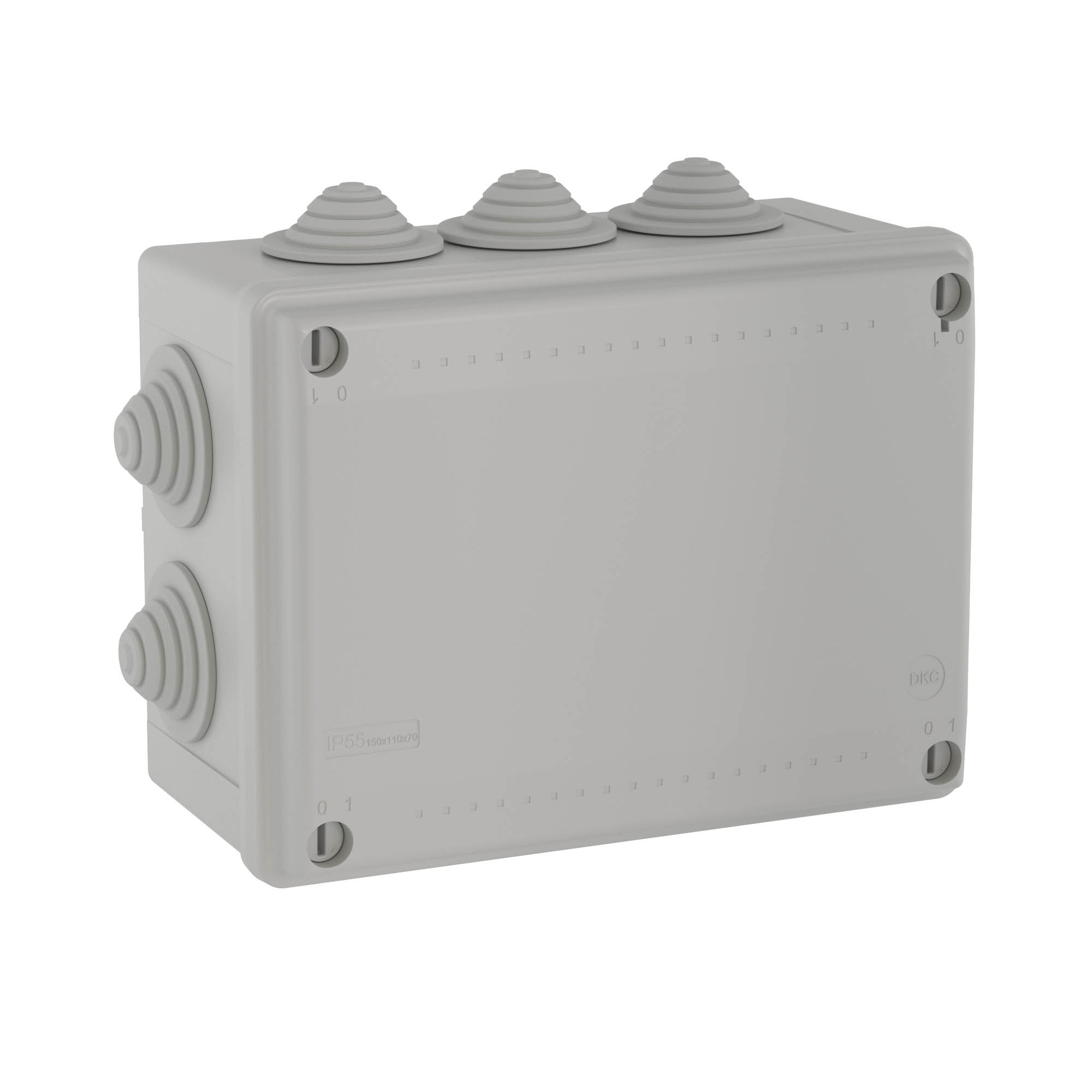

Junction box with 10 cable inputs Ø 25 mm, IP55, 150х110х70 mm

Code: 54000
Junction box with 10 cable inputs Ø 25 mm, IP55, 150х110х70 mm
  • To ask a question
Colour Grey
Width, mm 165
Depth, mm 84
Surface protection Untreated
Length, mm 124
Sealable No
Circuit integrity None
Material Plastic
Operating temperature, °C -25...60
Number of inlets 10
Explosion-tested version No
Cover attachment Screwed
With screening No
Degree of protection (IP) IP55
Inlet from the rear No
For Ex-zone gas None
Tackable No
For Ex-Zone dust None
Shape Rectangular
For tubediameter 25 mm
Type of housing feed-through Other
Cover Not transparent
Equipped with None
Color gray
-5°С ... +60°С -5°С ... +60°С
Ingress Protection rating, IP IP55
от -25°С до +60°С from -25°С to +60°С
Product type Junction box with cable inputs
ТУ 2248-012-47022248-2009 Technical specifications 3464-028-47022248-2011
3 года 3 years
