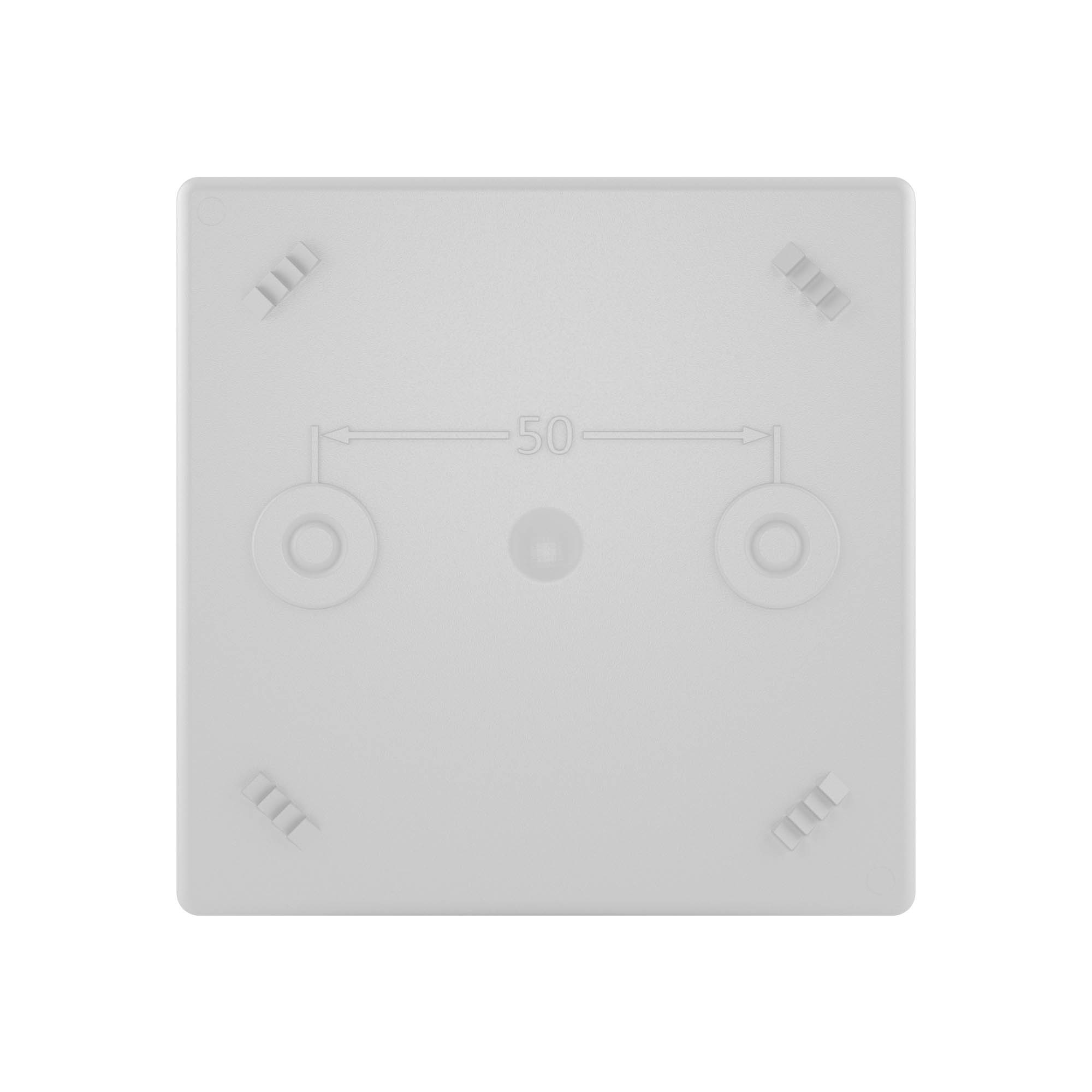

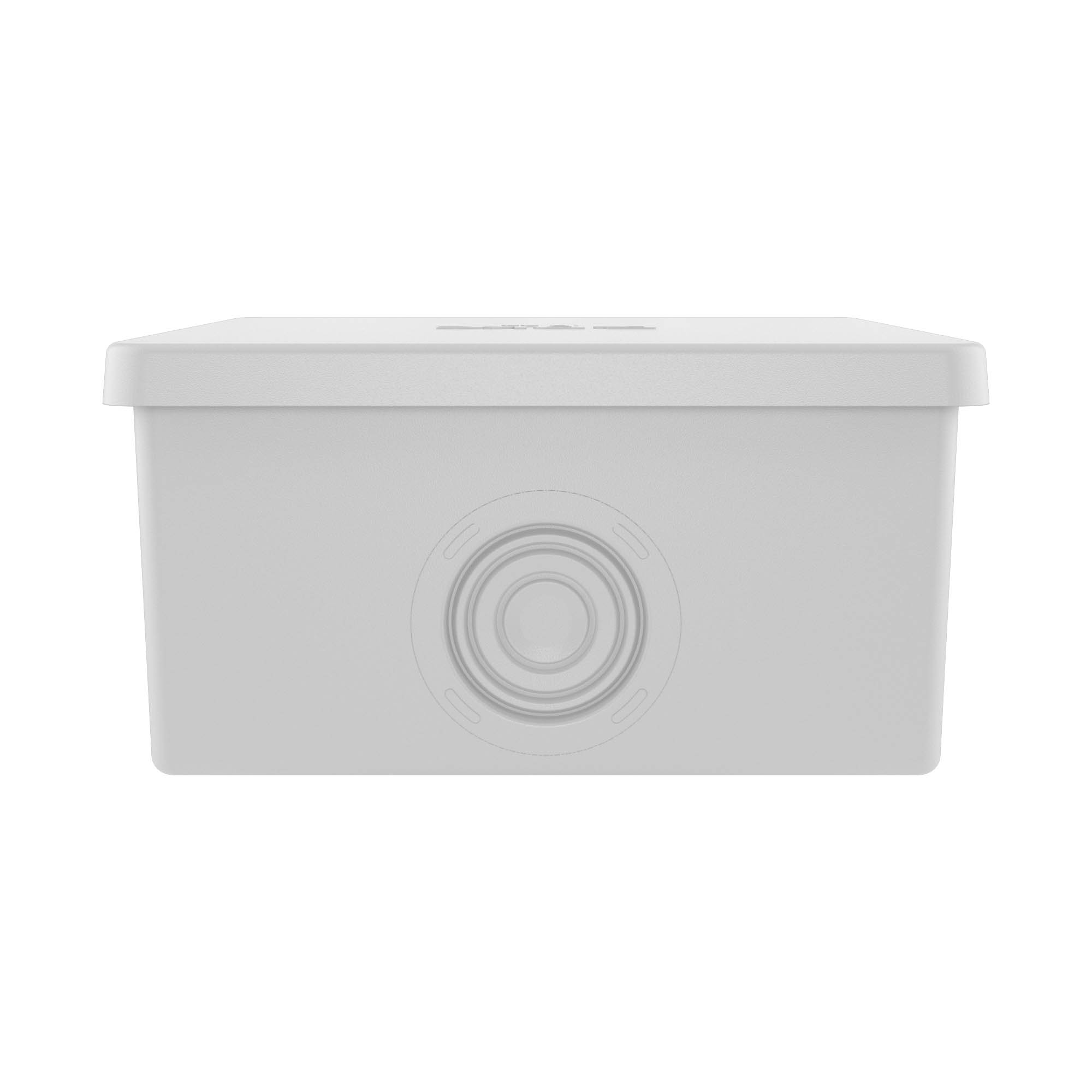

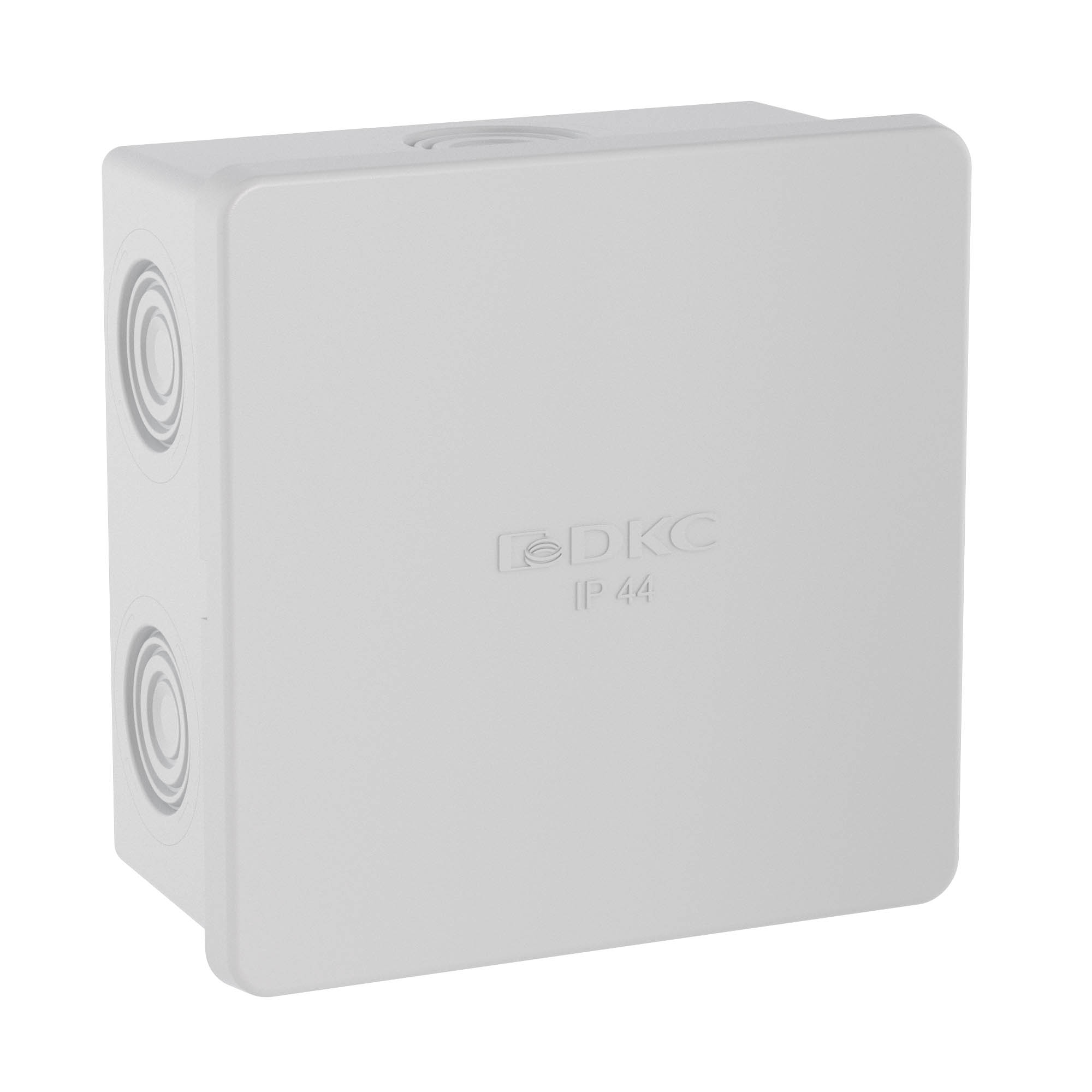

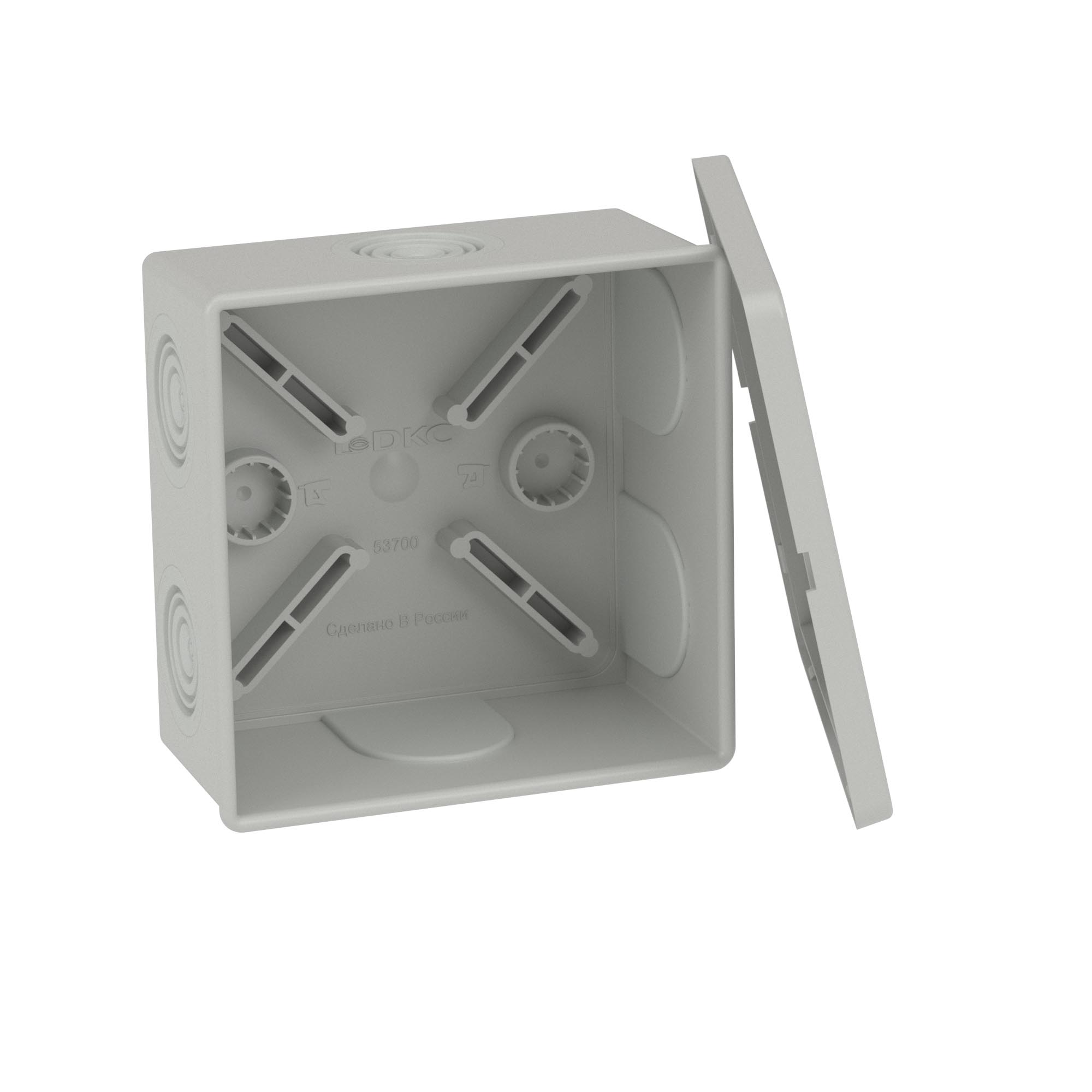

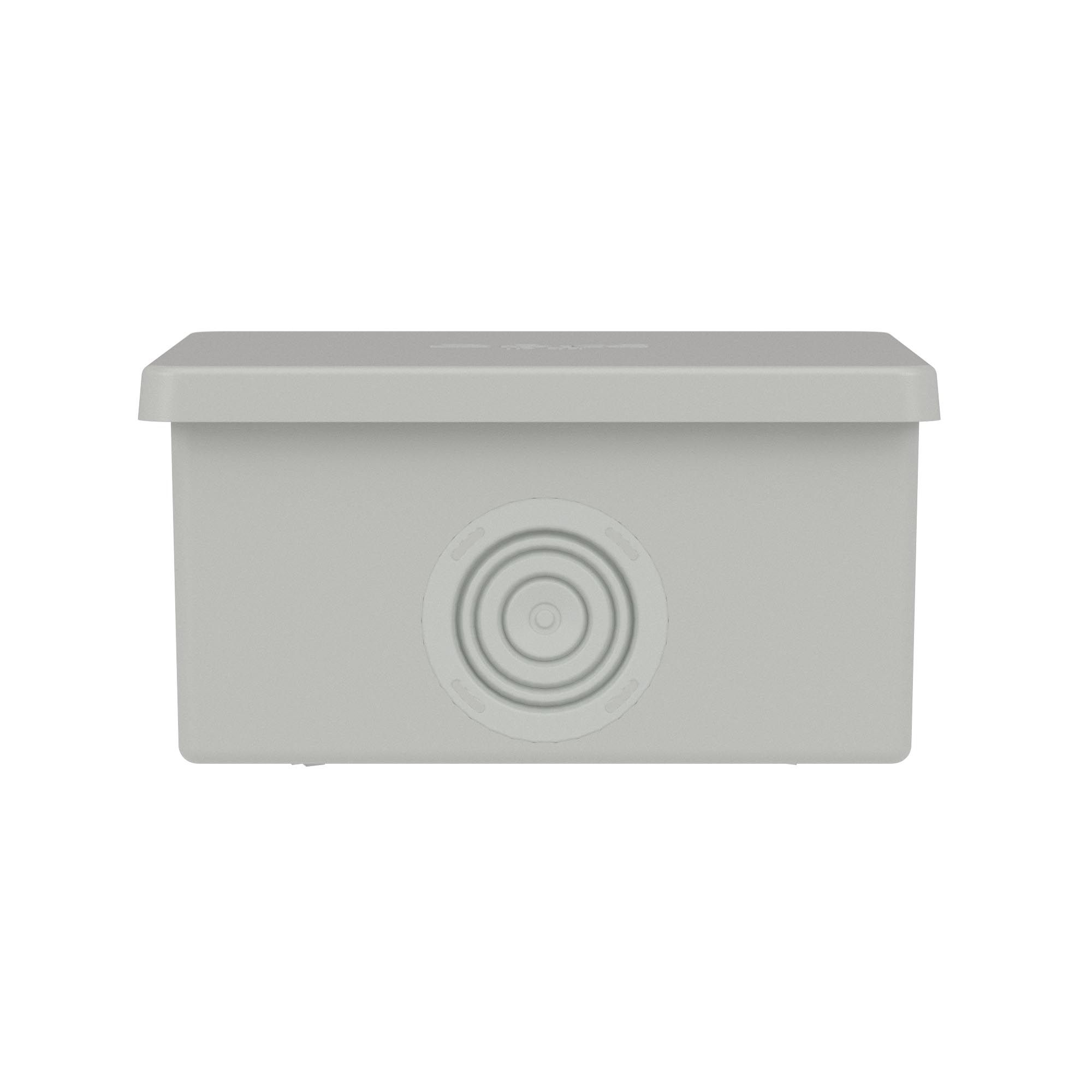

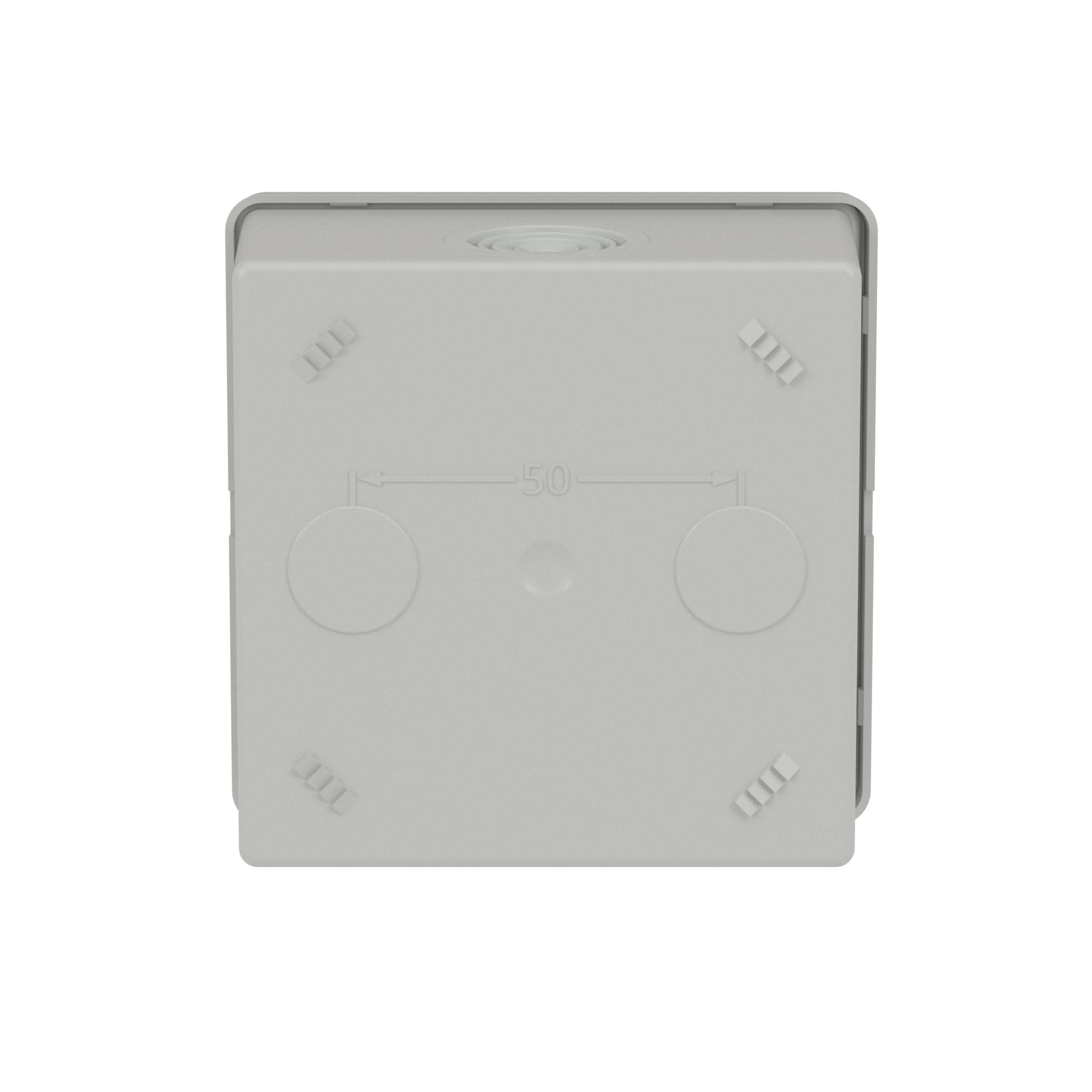

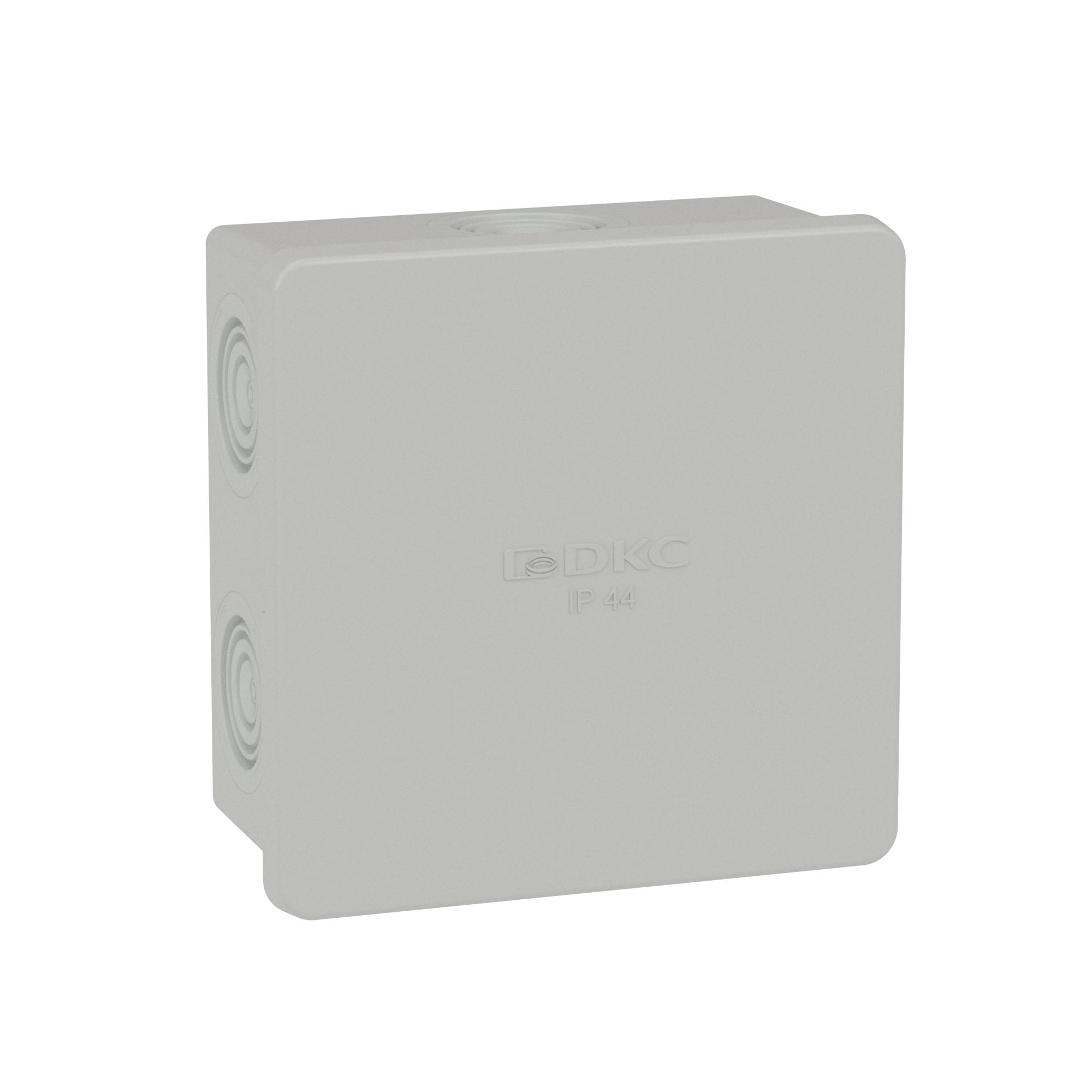

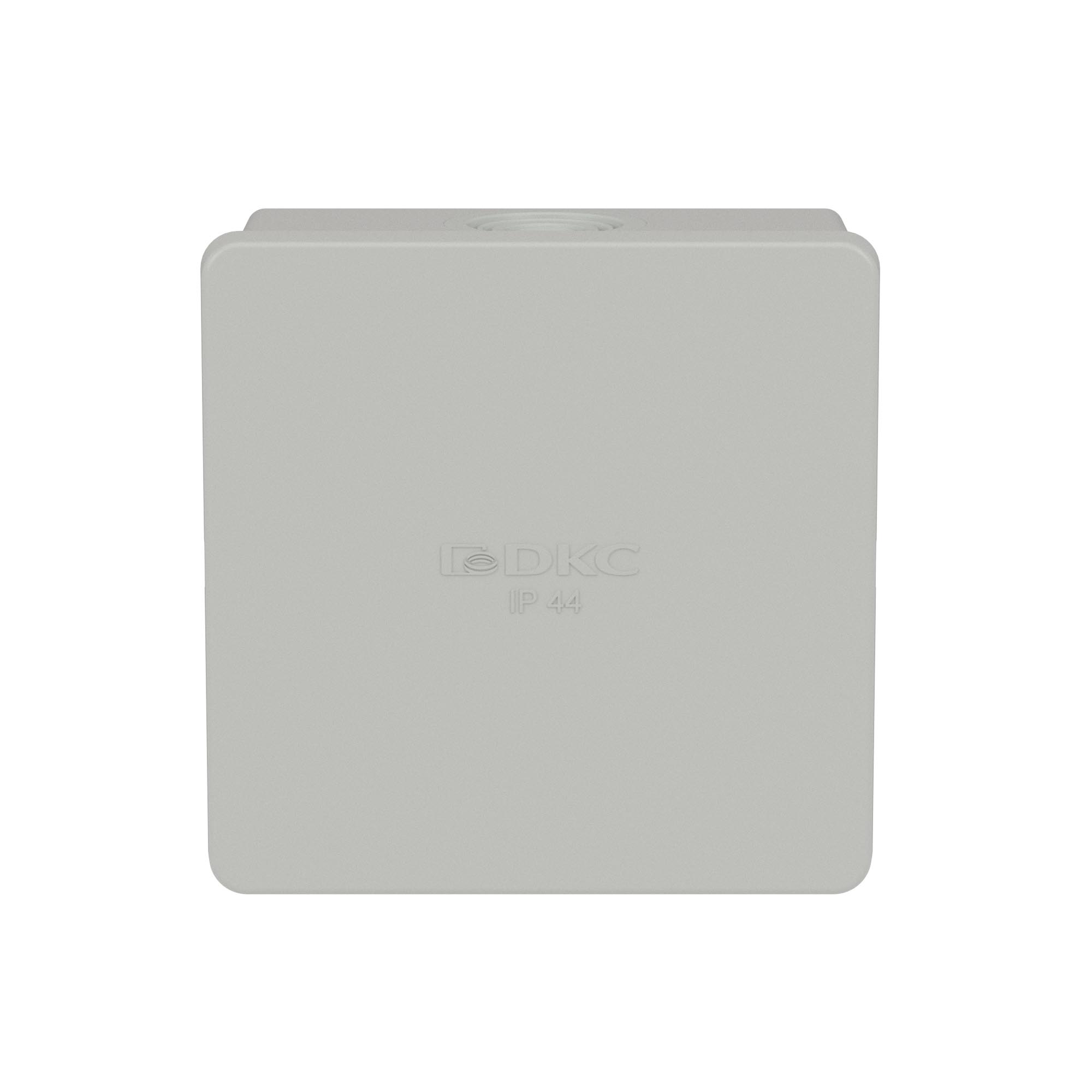

Junction box with 6 cable inputs Ø 20 mm, IP44, 80х80х40 mm
Code: 53700
Junction box with 6 cable inputs Ø 20 mm, IP44, 80х80х40 mm
Code: 53700
Colour | Grey |
Width, mm | 84 |
Depth, mm | 45 |
Surface protection | Untreated |
Length, mm | 84 |
Sealable | Yes |
Circuit integrity | None |
Material | Plastic |
Number of inlets | 6 |
Explosion-tested version | Yes |
Cover attachment | Snapped on |
With screening | Yes |
Degree of protection (IP) | IP44 |
Inlet from the rear | Yes |
For Ex-zone gas | None |
Tackable | Yes |
For Ex-Zone dust | None |
Shape | Square |
For tube diameter | 20 mm |
Type of housing feed-through | Seal membrane |
Equipped with | None |
Color | gray |
Height | 84 mm |
Width | 84 mm |
-5°С ... +60°С | -5°С …+60°С |
72 мм | 80 mm |
Degree of protection | IP44 |
от -25°С до +60°С | -25°С …+60°С |
72 мм | 80mm |
10 мм | 40 mm |
Depth | 45 mm |
Product type | Junction box with cable inputs |
ТУ 2248-012-47022248-2009 | Technical specifications 3464-028-47022248-2011 |
3 года | 3 years |
Climate version | У2 |
Certificates
Name | Document |
---|---|
