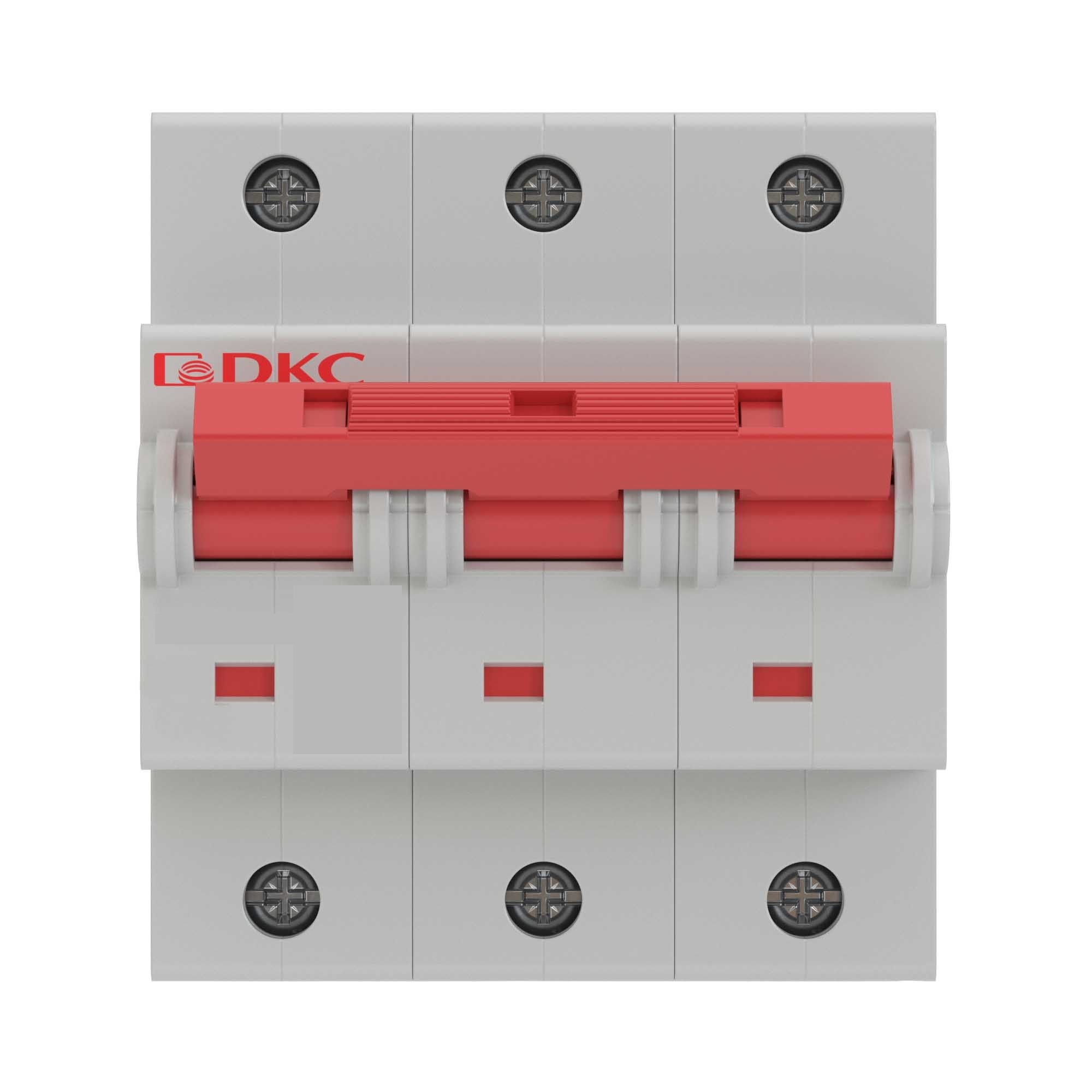

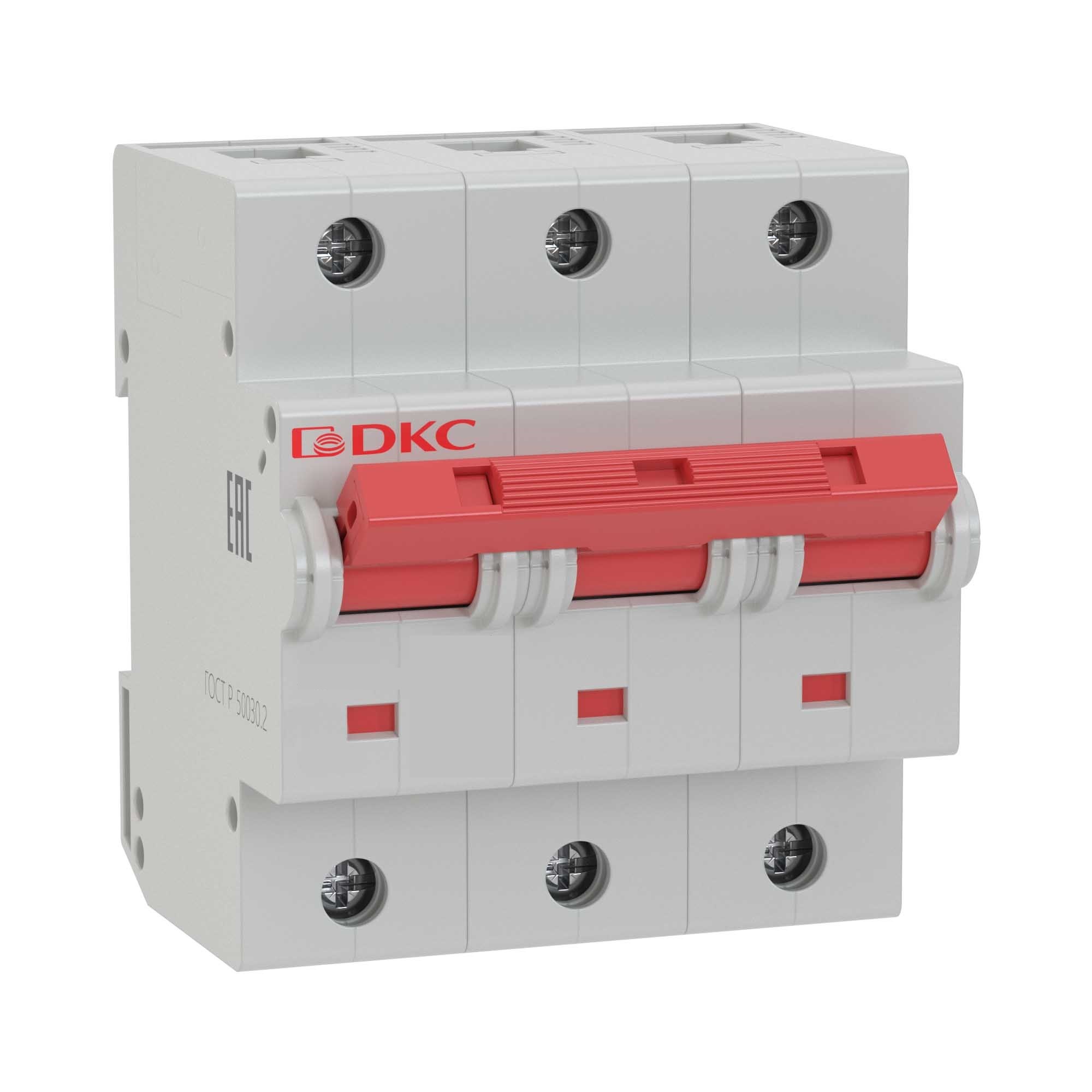

Modular circuit breaker YON MD125-3D100-14ln

Code: MD125-3D100
Modular circuit breaker YON MD125-3D100-14ln
Modular circuit breaker YON MD125-3D100-14ln
Code: MD125-3D100
  • To ask a question
  • Characteristics
  • Certificates
  • Promo
  • Viewed items
  • News
Rated current, A 100
Rated voltage, V 400
Release characteristic D
Degree of protection (IP) IP20
Concurrently switching N-neutral Yes
Additional equipment possible Yes
Number of poles (total) 3
Voltage type AC
Number of protected poles 3
Connectable conductor cross section multi-wired, mm² 25...25
Ambient temperature during operating, °C -60...40
Rated insulation voltage Ui, V 400
Over voltage category 4
Pollution degree 3
Connectable conductor cross section solid-core, mm² 25...25
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA 15
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA 15
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V, kA 15
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V, kA 15
Rated impulse withstand voltage Uimp, kV 4
Frequency, Hz 50...50
Width in number of modular spacings 4.5
Rated short-circuit breaking capacity 15
