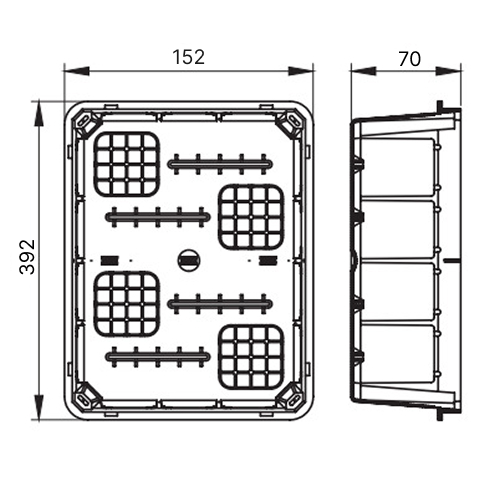

Junction box for solid walls, IP40, 392х152х70 mm
Code: 59368
Junction box for solid walls, IP40, 392х152х70 mm
Code: 59368
| Mounting method | Facing brickwork |
| Colour | Orange |
| Width, mm | 392 |
| Model | Single |
| Halogen free | No |
| Depth | 70 |
| Construction type | Cable junction box |
| Internal depth, mm | 68.9 |
| Length, mm | 152 |
| Sealable | No |
| Material | Plastic |
| Number of inlets | 20 |
| With screws | No |
| Degree of protection (IP) | IP40 |
| Inlet from the rear | No |
| Clamp position fixed | No |
| Shape | Rectangular |
| Cover attachment | Screwed |
| Number of modules | 1 |
| Temperature of mounting, °C | -5°С ... +60°С |
| Ingress Protection rating, IP | IP40 |
| Temperature of operation, °C | from -25°С to +60°С |
