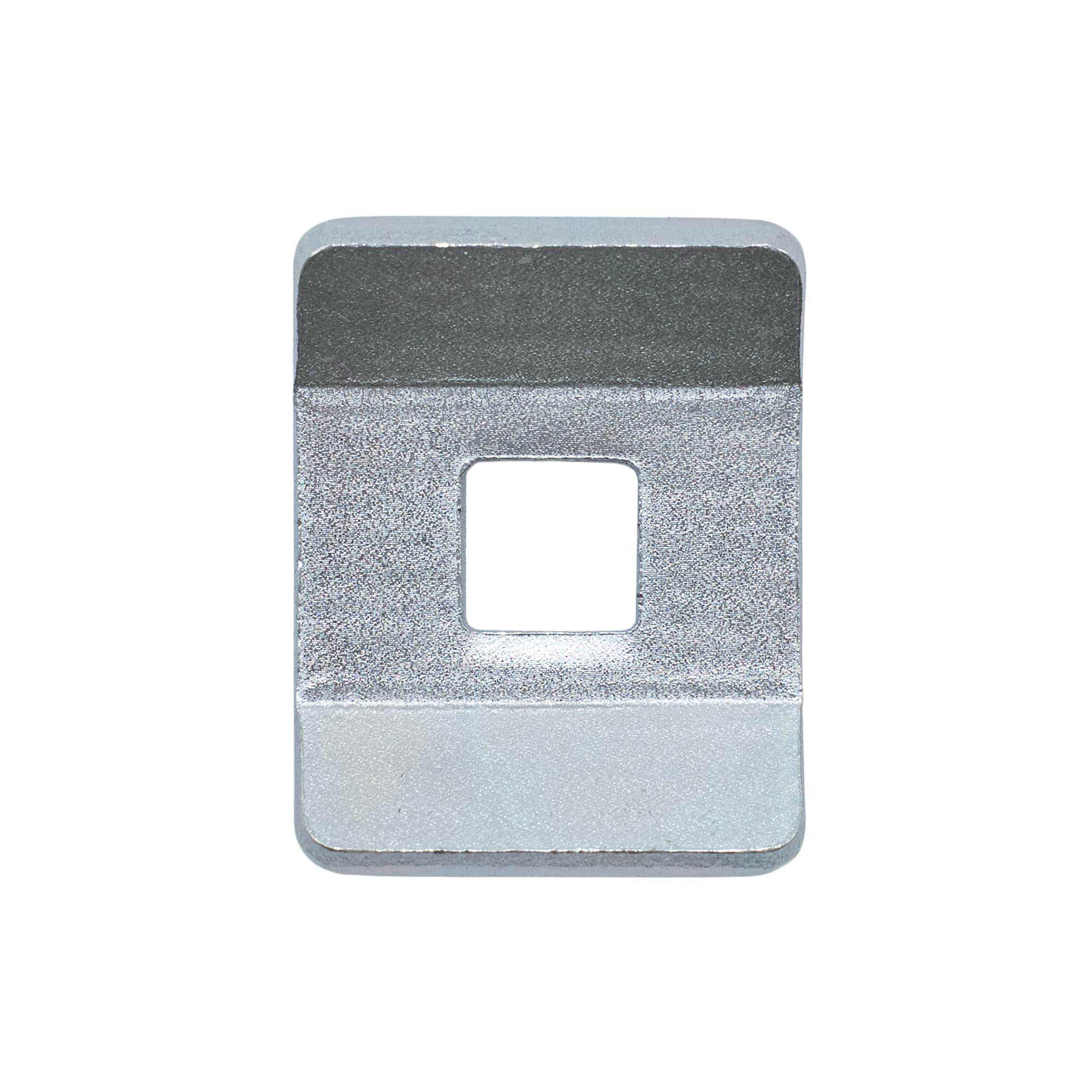

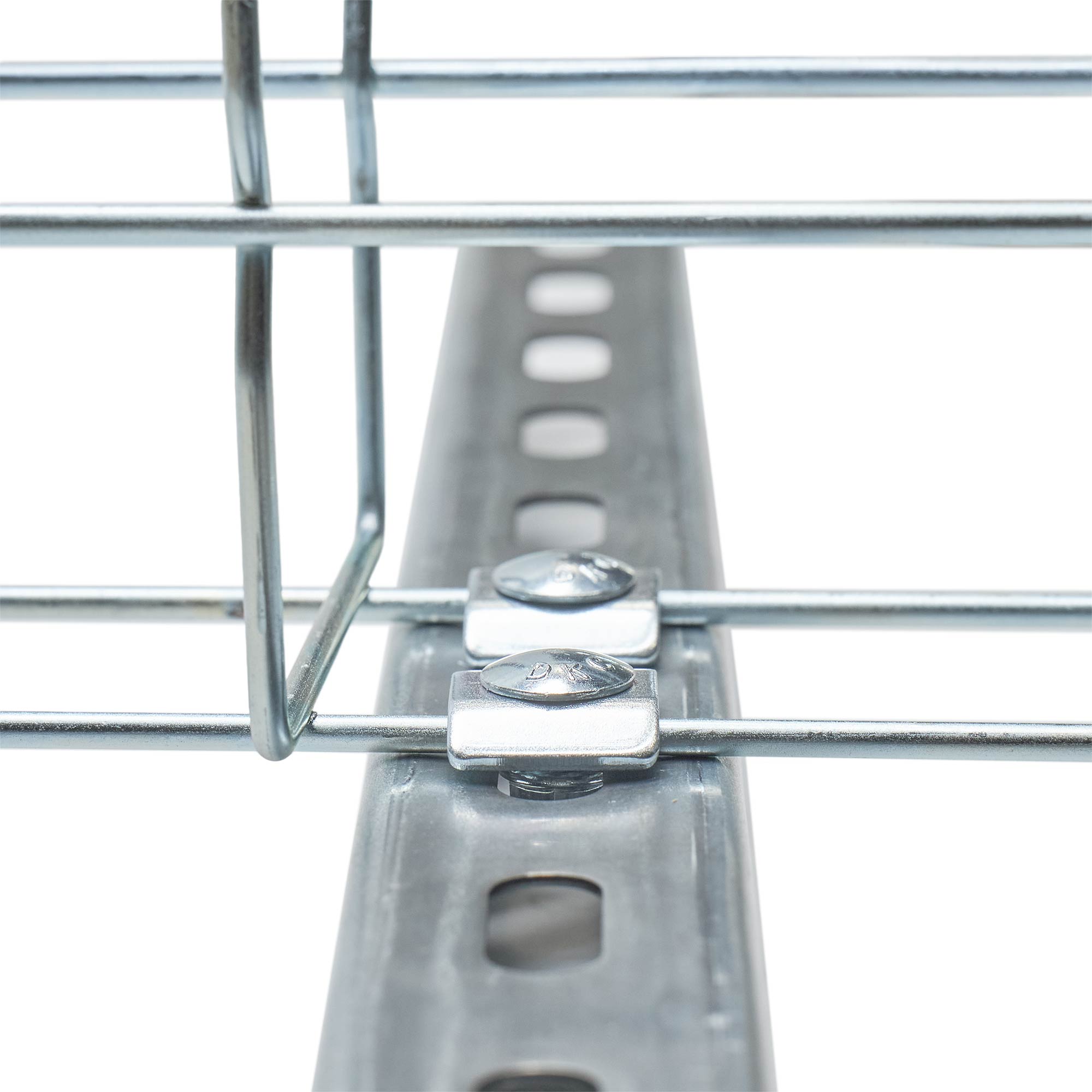

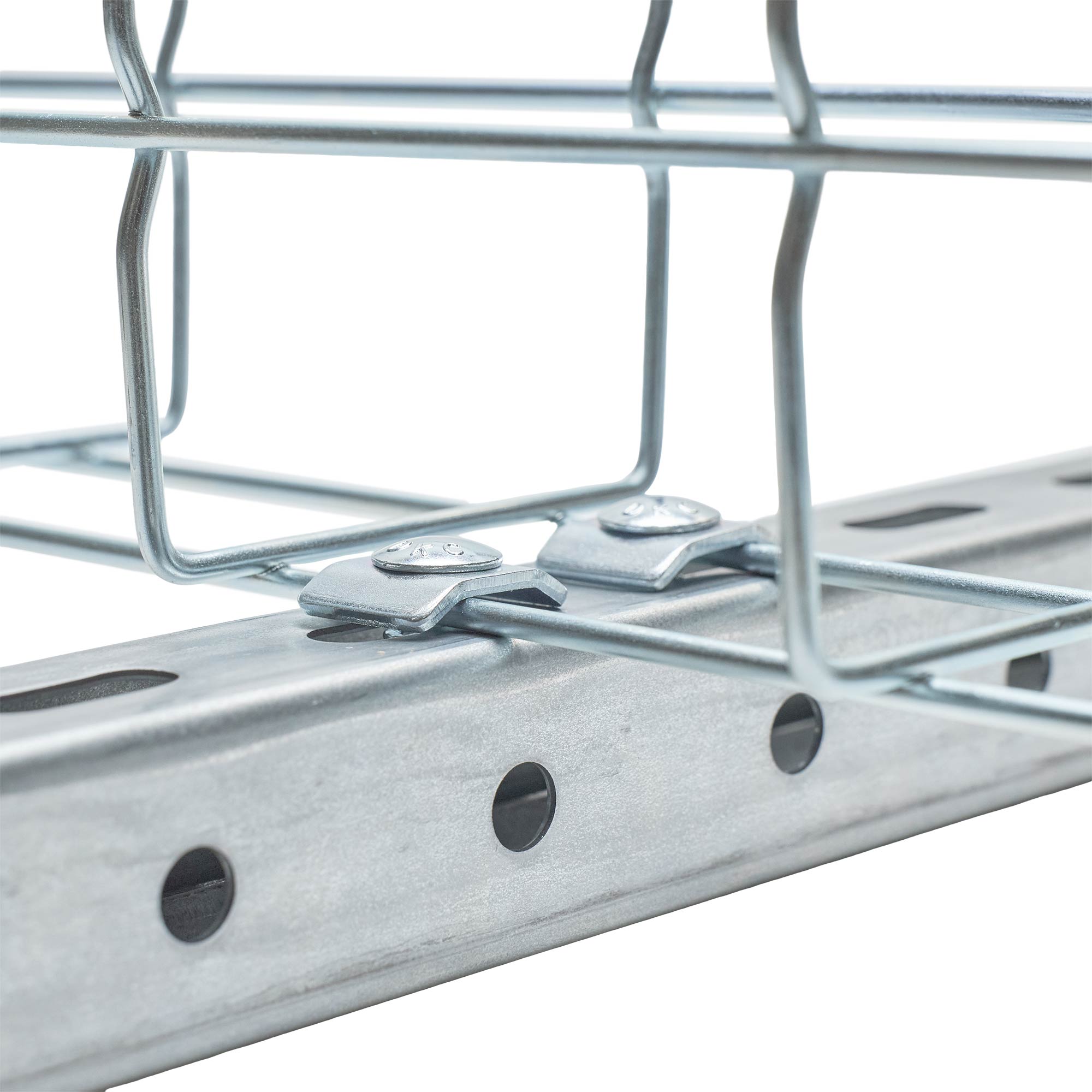

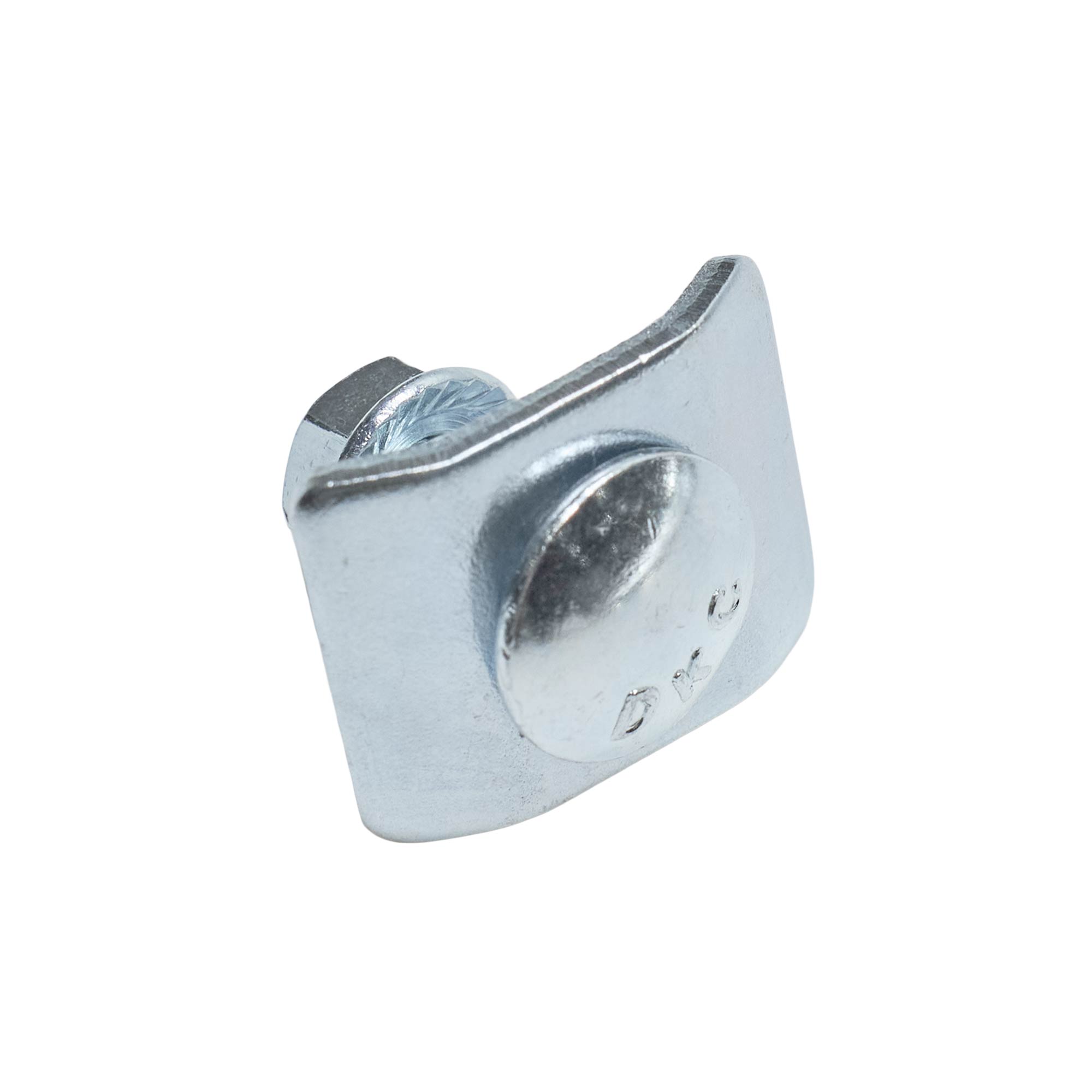

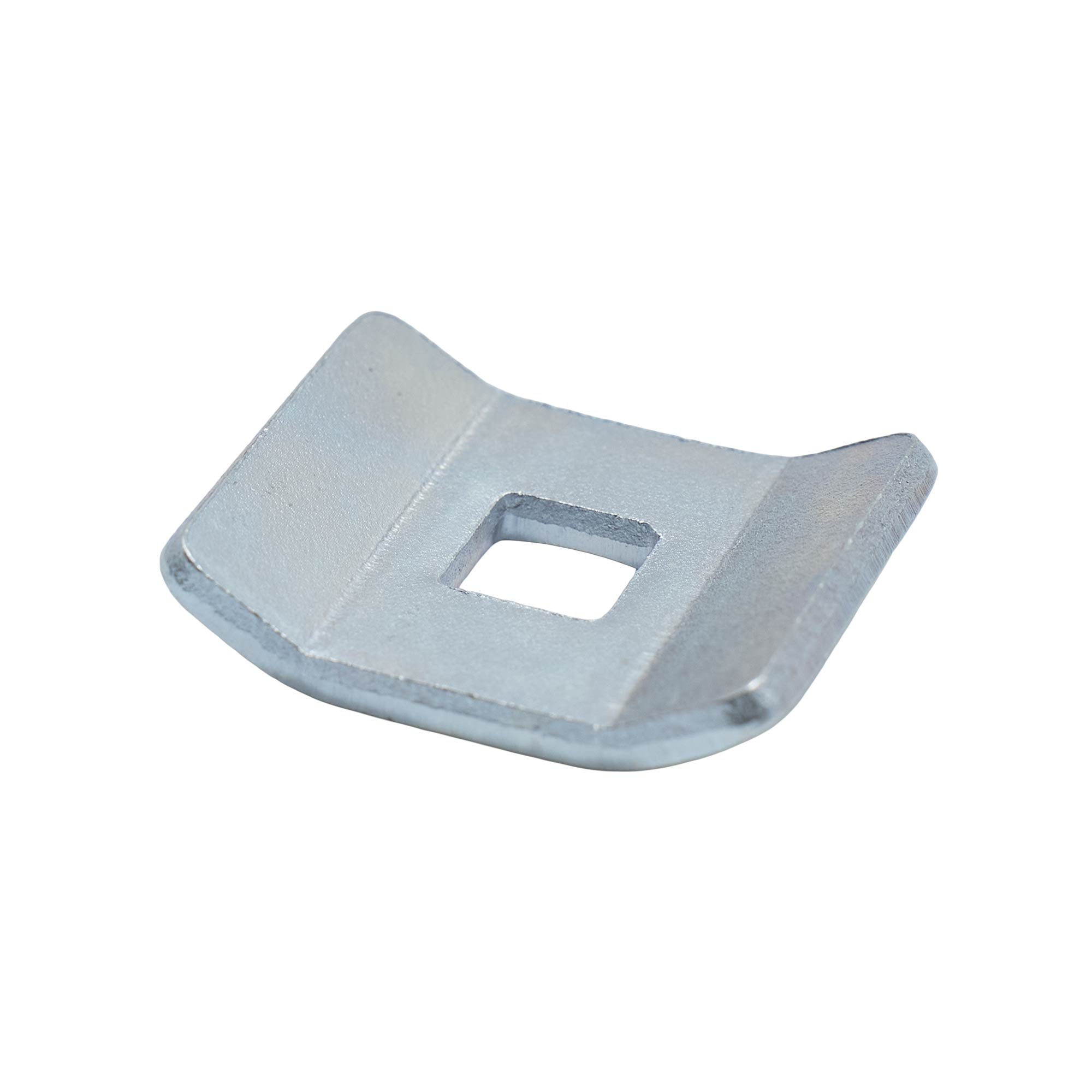

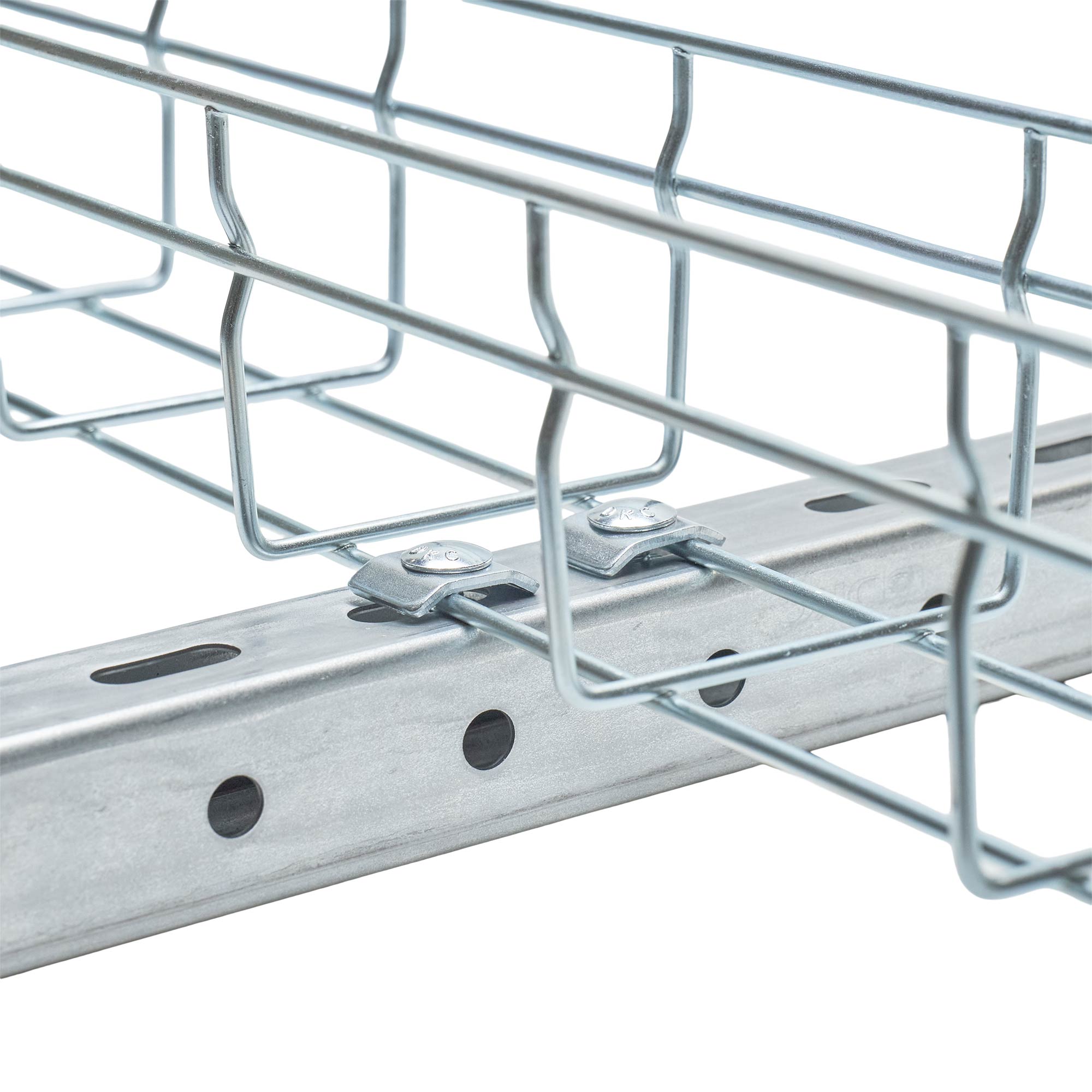

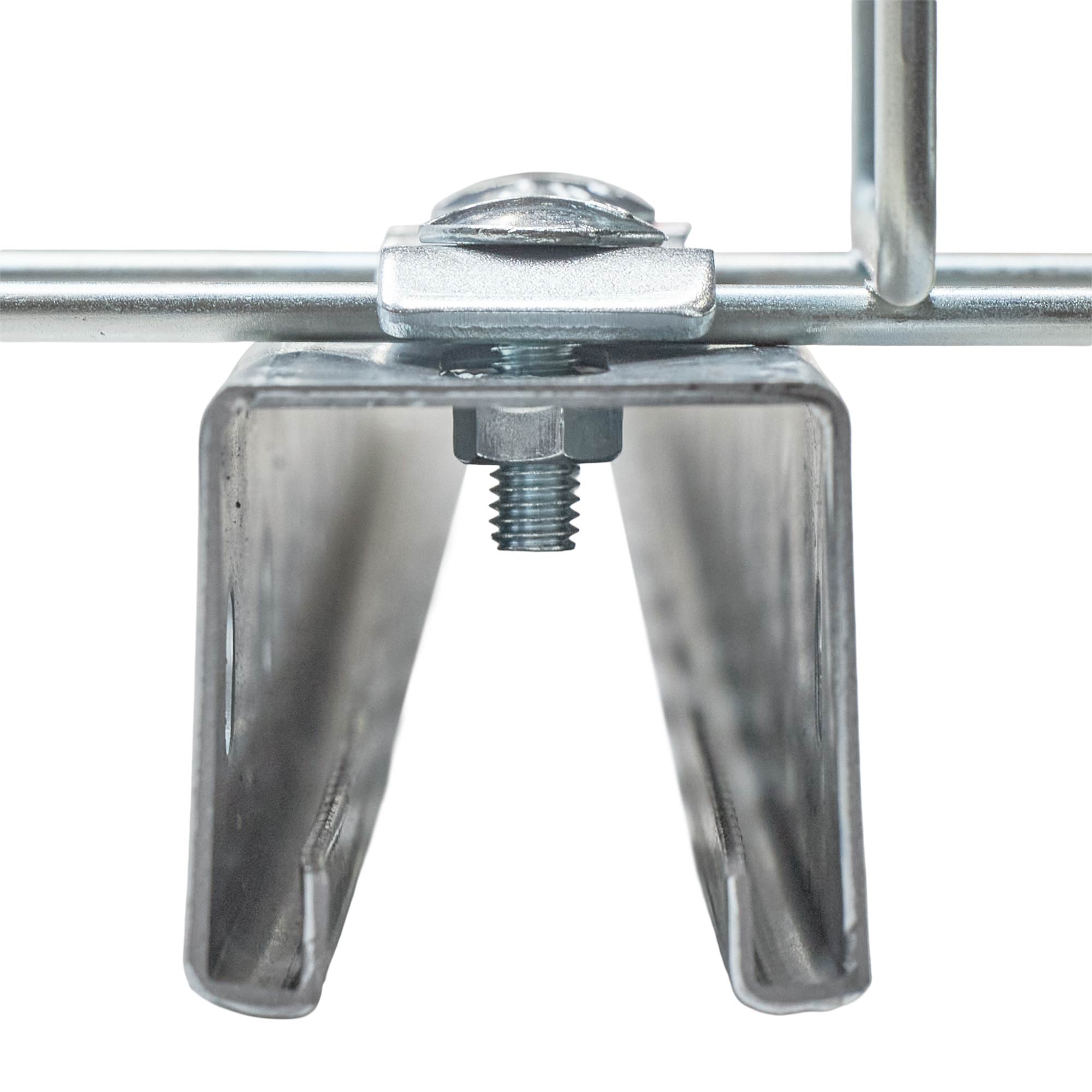

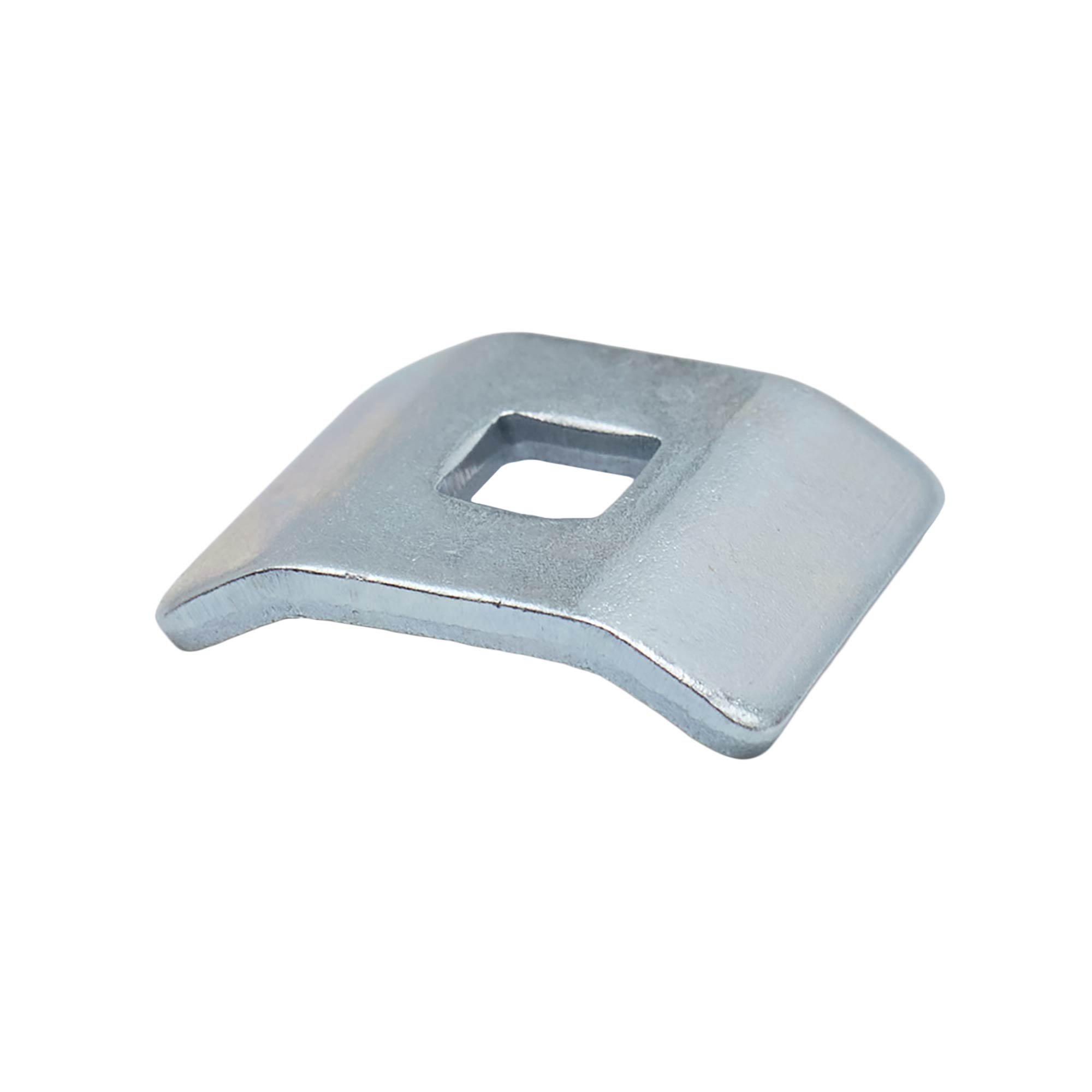

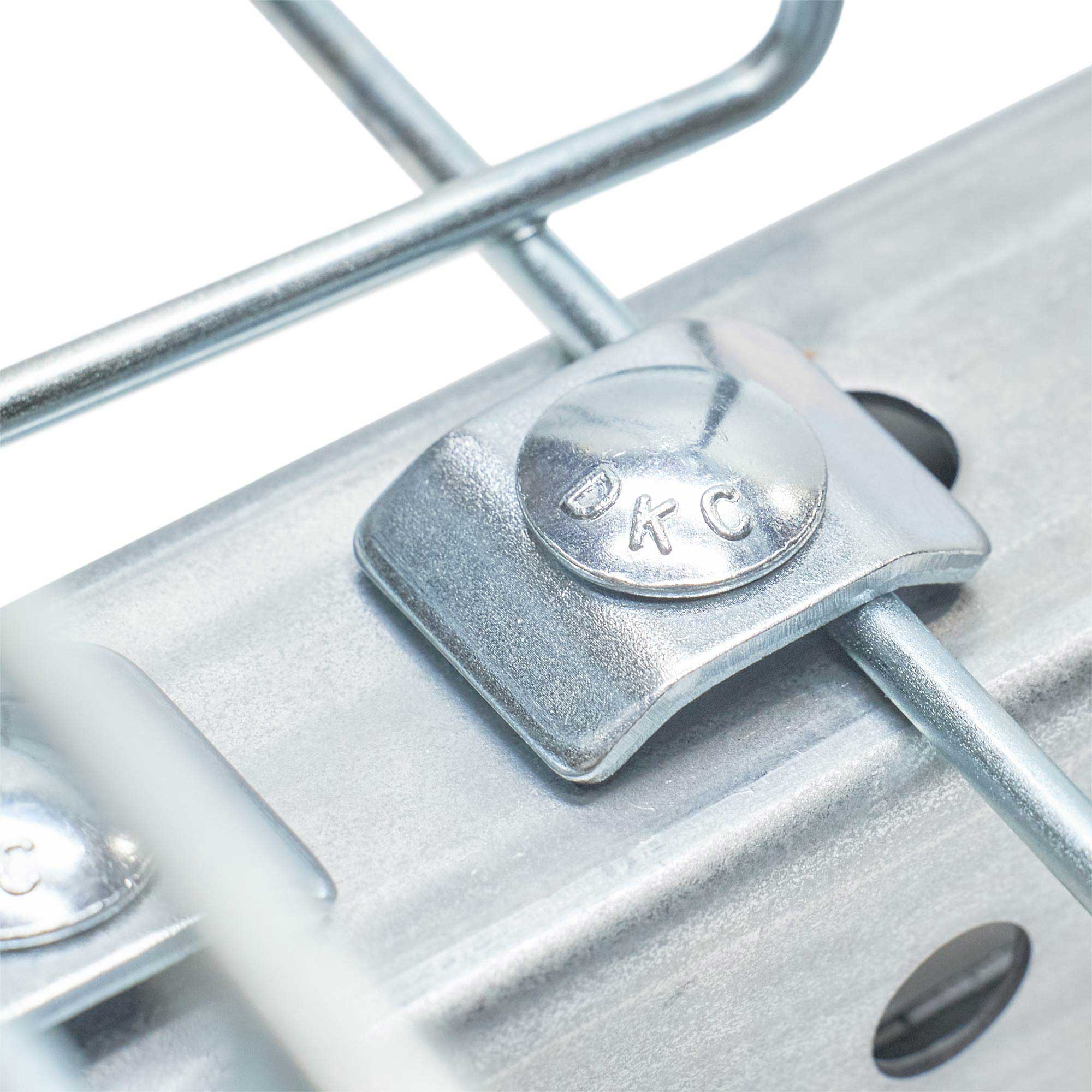

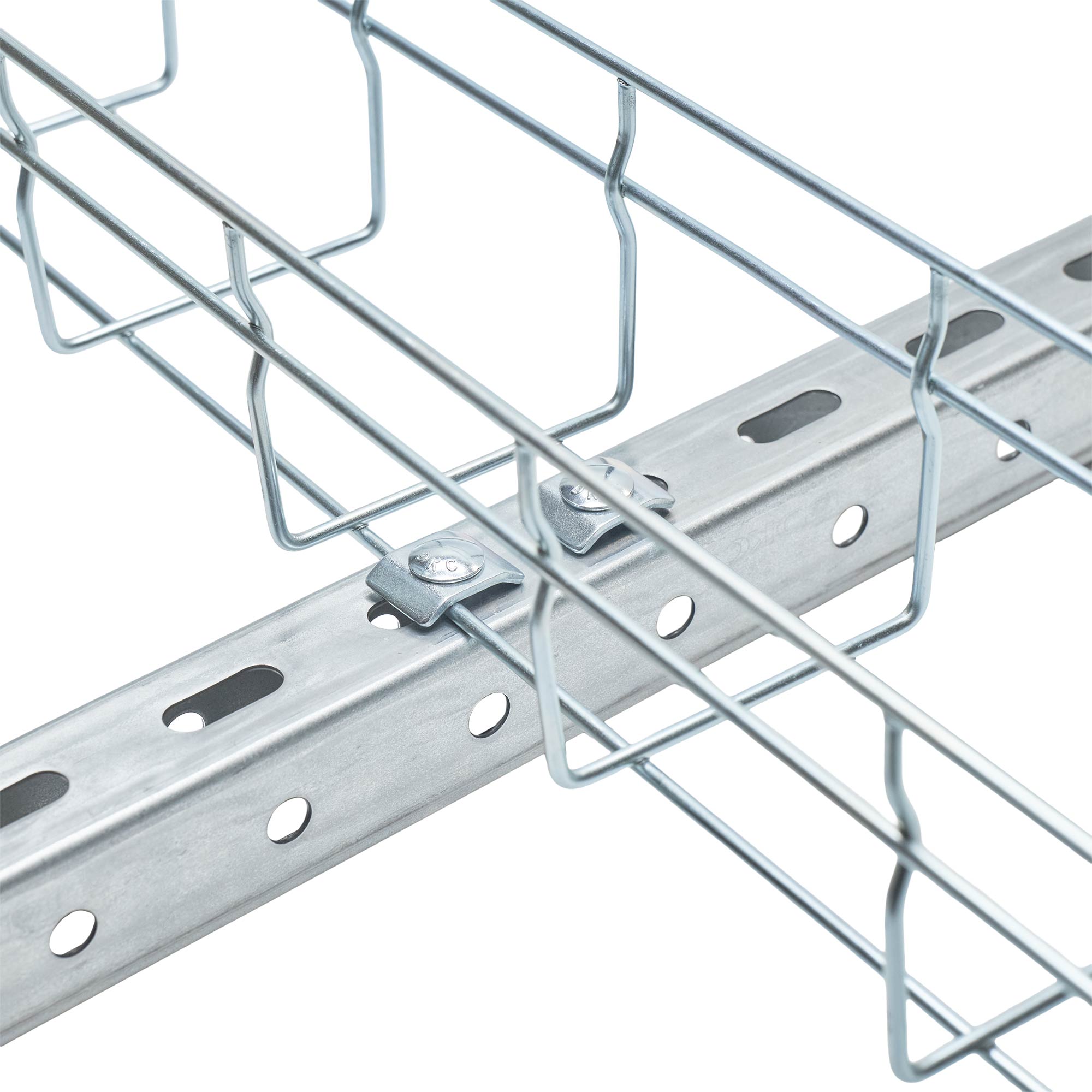

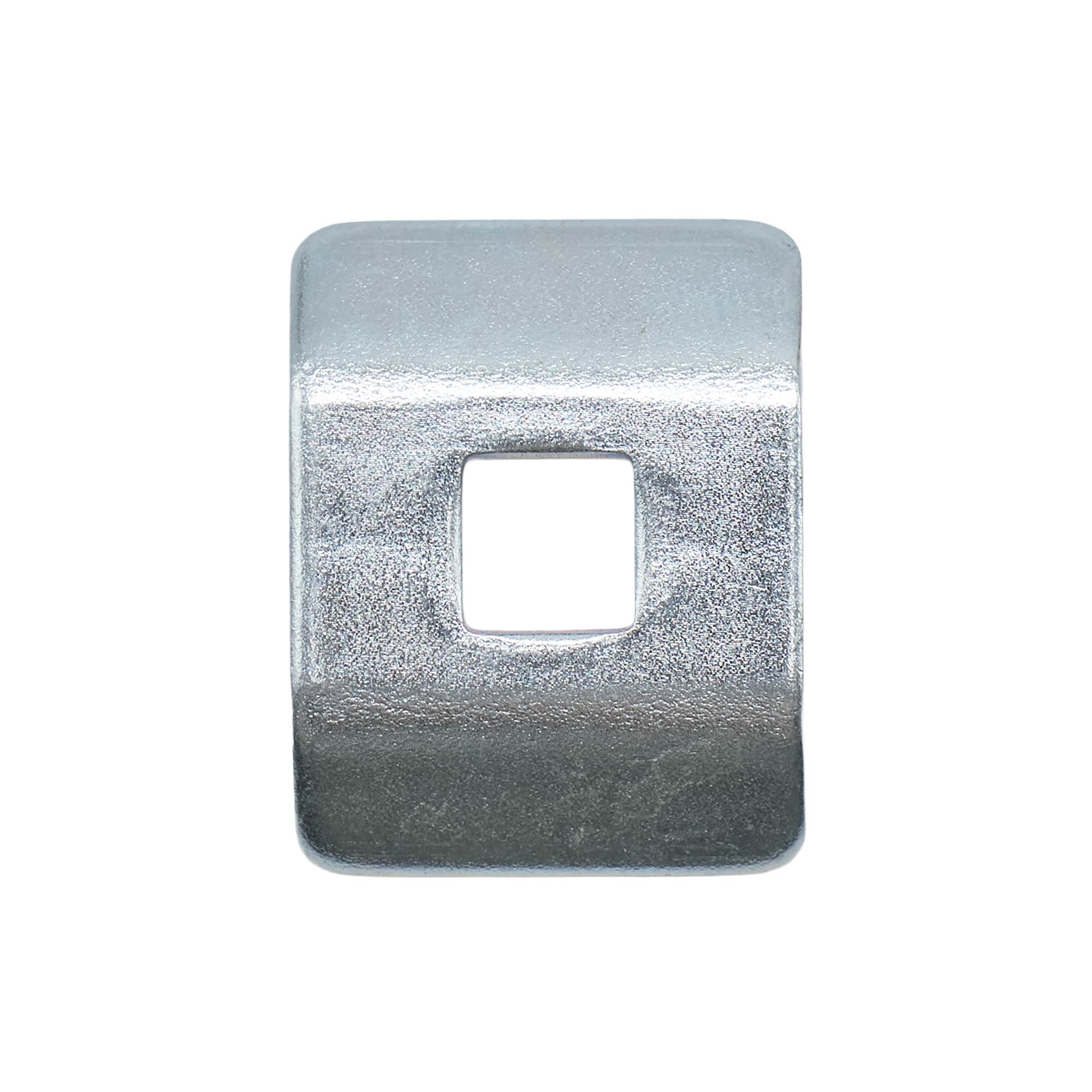

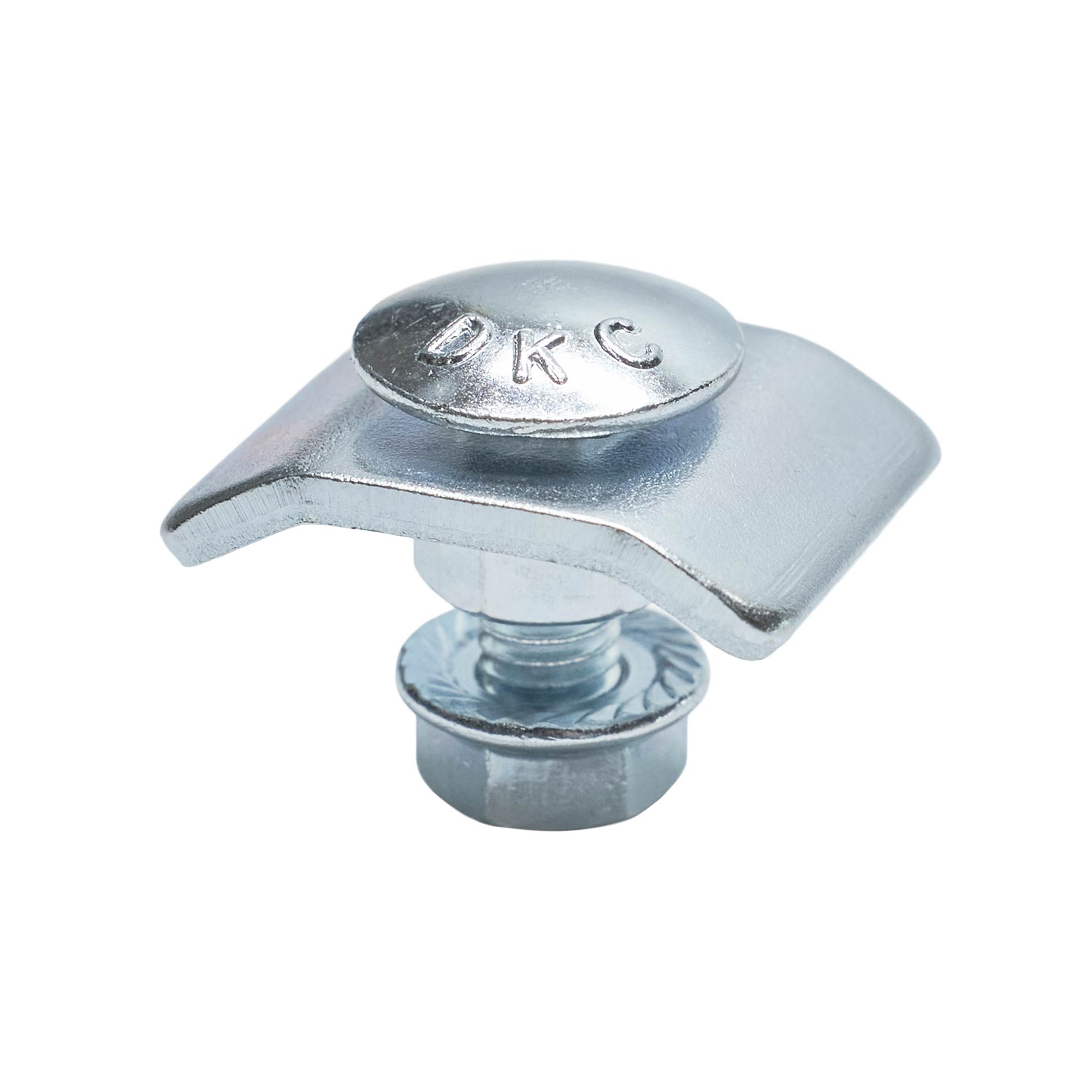

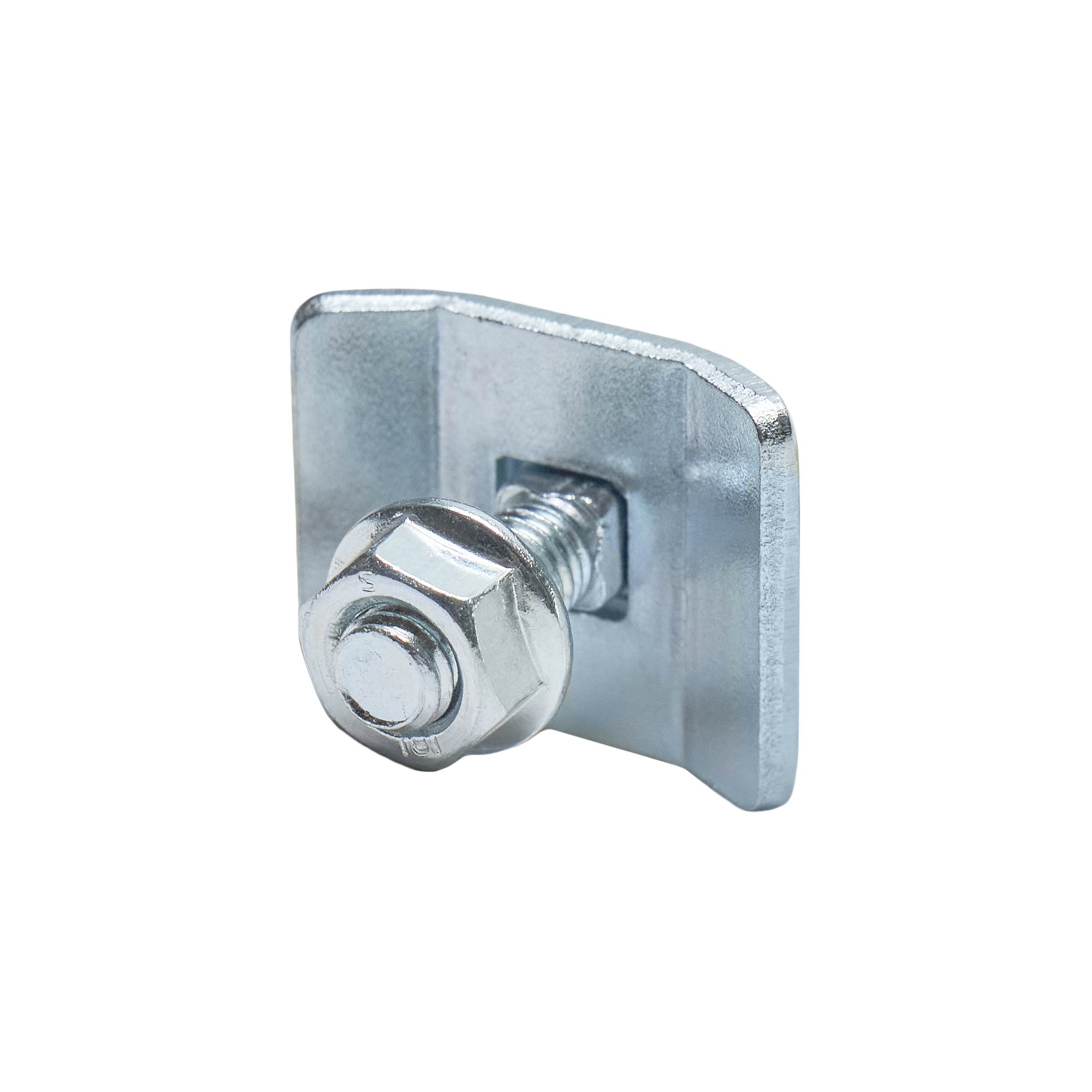

Nut for joining mesh cable trays (with bolt M6x20)

Code: CM170600
Width, mm 21
Length, mm 27,5
Outer diameter, mm 24.25
Inner diameter, mm 7
Thickness, mm 5.7
Surface protection Galvanic/electrolytic zinc plated
Material quality C45 (steel)
Facet No
Material Steel
Suitable for bolt size metric (M..) 6
Hardened No
Drawings
Seria Name Autodesk Revit Intergraph DWG (dynamic blocks)
F5 Combitech - metal wire mesh trays
F5 Combitech - metal wire mesh trays
F5 Combitech - metal wire mesh trays
Certificates
Name Document
