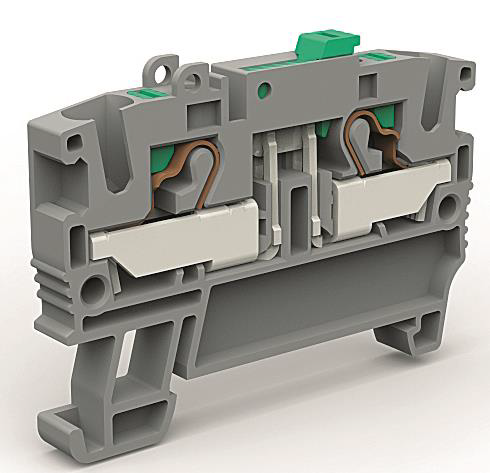

DISCONNECT TERMINAL BLOCK
Code: ZEFS400BL
DISCONNECT TERMINAL BLOCK
Code: ZEFS400BL
| Rated voltage, V | 630 |
| Length, mm | 55.2 |
| Operating temperature, °C | -60 … 130 |
| Rated current In, A | 20 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Product type | Terminal block |
| Clamp type | Push-in |
| Cross-section | 4 mm² |
| Width | 6,2 mm |
| Q'ty of poles | 2 |
| Number of levels | 1 |
