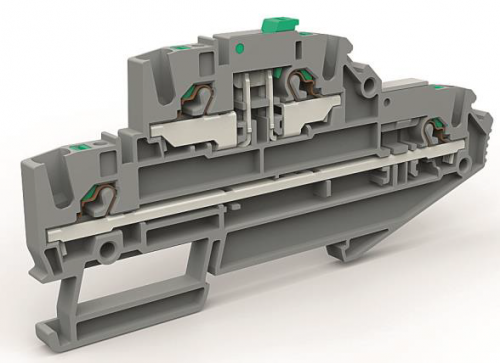

TWO LAYER DISCONNECT TERMINAL

TWO LAYER DISCONNECT TERMINAL

Code: ZEFDS210GR

To ask a question

ETIM

Nominal rated voltage, V	630
Length, mm	110
Operation temperature, °C	-60 … 130

Rated current In, A	20
Inflammability class of insulation material acc. with UL94	V0

Drawings

Seria	Name	STEP
Quadro - DIN- rail mounting terminal blocks	TWO LAYER DISCONNECT TERMINAL	ZIP 128.68 kB
