| Mounting method | DIN rail (top hat rail) 35 mm |
| Colour | Grey |
| Length, mm | 81.7 |
| Operating temperature, °C | -60...130 |
| Width/grid dimension, mm | 6.2 |
| Height at lowest possible mounting height, mm | 57.7 |
| Number of levels | 2 |
| Number of clamp positions per level | 2 |
| Internally connected stages | Yes |
| Connectable conductor cross section solid-core, mm² | 0.2 ... 6 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 4...4 |
| Rated current In, A | 29 |
| Explosion-tested version 'Ex e' | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Rated voltage, V | 800 |
| Closing plate required | Yes |
| Number of poles | 4 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2 ... 4 |
| Connectable conductor cross section multi-wired, mm² | 0.2 ... 4 |

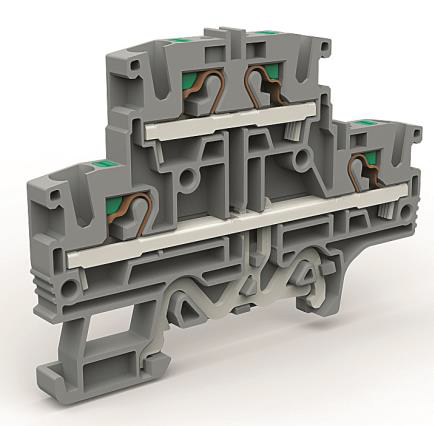

| Product type | Terminal block |
| Clamp type | Push-in |
| Cross-section | 4 mm² |
| Width | 6,2 mm |
| Q'ty of poles | 4 |
| Number of levels | 2 |
| PE | PE |
