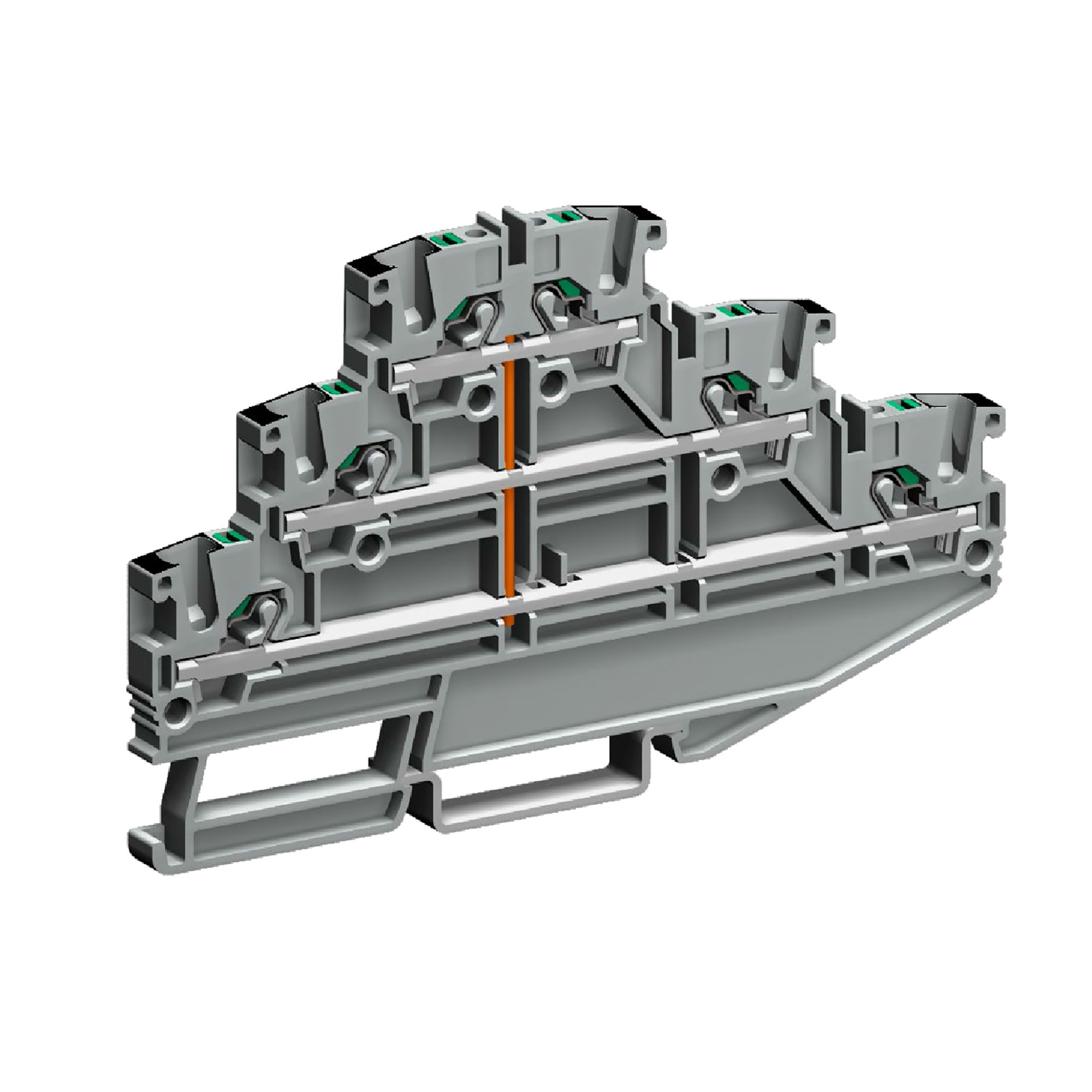

3 levels terminal block with internal connection

Code: ZEFT210GR

3 levels terminal block with internal connection

Code: ZEFT210GR
Mounting method DIN rail (top hat rail) 35 mm
Colour Grey
Rated voltage, V 800
Length, mm 106.2
Operating temperature, °C -60...130
Inflammability class of insulation material according to with UL94 V0
Width/grid dimension, mm 5.2
Height at lowest possible mounting height, mm 68.4
Closing plate required Yes
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Number of levels 3
Number of clamp positions per level 2
Internally connected stages Yes
Connectable conductor cross section solid-core, mm² 4...4
Connectable conductor cross section fine-strand with cable end sleeve, mm² 2.5...2.5
Material insulation body Thermoplastic
Connection position Above
Rated current In, A 20
Explosion-tested version 'Ex e' Yes
