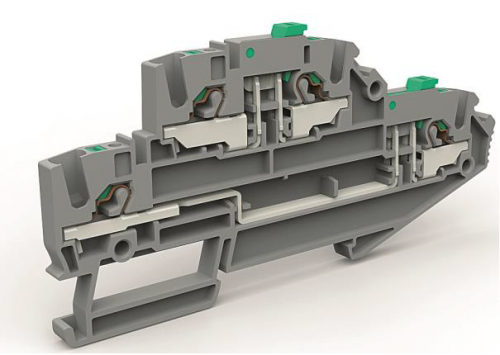

TWO LAYER DISCONNECT TERMINAL
Code:
ZEFDS200GR
TWO LAYER DISCONNECT TERMINAL
Code:
ZEFDS200GR
Rated voltage, V | 630 |
Length, mm | 110 |
Operating temperature, °C | -60 ... 130 |
Rated current In, A | 20 |
Inflammability class of insulation material according to with UL94 | V0 |
Mounting method | DIN rail (top hat rail) 35 mm |
Colour | Grey |
Product type | Terminal block |
Clamp type | Push-in |
Cross-section | 2,5 mm² |
Width | 5,2 mm |
Q'ty of poles | 4 |
Number of levels | 2 |
Knife disconnect | Disconnector |
Drawings
Seria | Name | STEP |
---|---|---|
DIN- rail mounting terminal blo -"Quadro"
|
