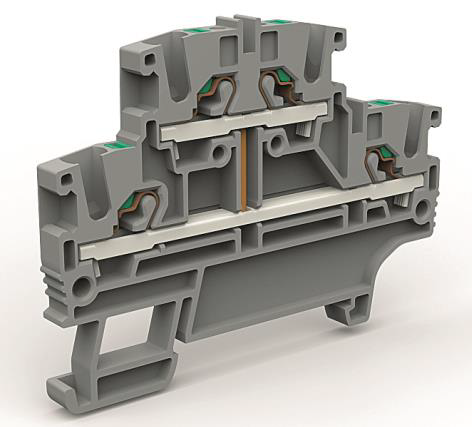

TWO LAYER TERMINAL BLOCK
Code:
ZEFD210GR
TWO LAYER TERMINAL BLOCK
Code:
ZEFD210GR
Mounting method | DIN rail (top hat rail) 35 mm |
Colour | Grey |
Length, mm | 71.6 |
Operating temperature, °C | -60...130 |
Width/grid dimension, mm | 5.2 |
Height at lowest possible mounting height, mm | 53.8 |
Number of levels | 2 |
Number of clamp positions per level | 2 |
Internally connected stages | Yes |
Connectable conductor cross section solid-core, mm² | 4...4 |
Connectable conductor cross section fine-strand with cable end sleeve, mm² | 2.5...2.5 |
Rated current In, A | 22 |
Explosion-tested version 'Ex e' | Yes |
Inflammability class of insulation material according to with UL94 | V0 |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Material insulation body | Thermoplastic |
Connection position | Above |
Rated voltage, V | 800 |
Closing plate required | Yes |
Product type | Terminal block |
Clamp type | Push-in |
Cross-section | 2,5 mm² |
Width | 5,2 mm |
Q'ty of poles | 4 |
Number of levels | 2 |
