Mounting method DIN rail (top hat rail) 35 mm
Colour Blue
Number of poles 4
Length, mm 88.4
Operating temperature, °C -60...130
Width/grid dimension, mm 6.2
Height at lowest possible mounting height, mm 39.2
PEN function possible No
With integrated test socket Yes
Number of levels 1
Number of clamp positions per level 4
Internally connected stages Yes
Connectable conductor cross section solid-core, mm² 6...6
Connectable conductor cross section fine-strand with cable end sleeve, mm² 4...4
With shock protection Yes
Rated current In, A 32
Explosion-tested version 'Ex e' Yes
Inflammability class of insulation material according to with UL94 V0
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Material insulation body Thermoplastic
Connection position Above
Rated voltage, V 800
Closing plate required Yes

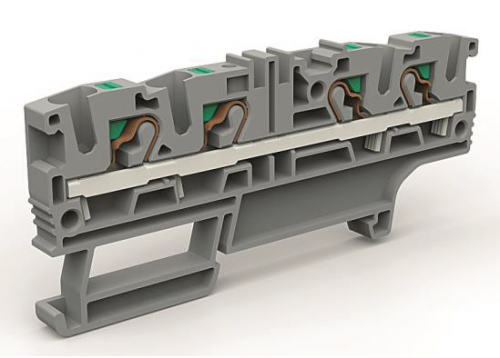

Product type Terminal block
Clamp type Push-in
Cross-section 4 mm²
Width 6,2 mm
Q'ty of poles 4
Number of levels 1
