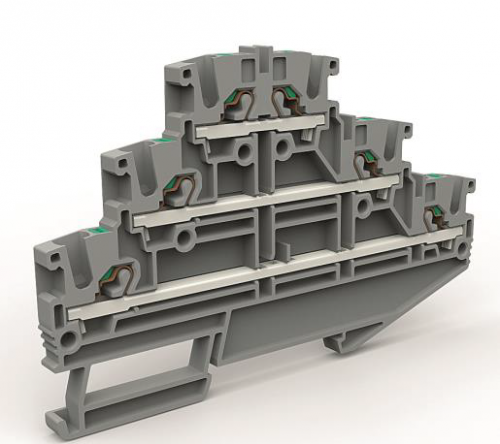

Code: ZEFT200GR
  • To ask a question
Mounting method DIN rail (top hat rail) 35 mm
Colour Grey
Number of poles 6
Length, mm 106.2
Operating temperature, °C -60…130
Width/grid dimension, mm 5.2
Height at lowest possible mounting height, mm 68.4
PEN function possible No
With integrated test socket Yes
Number of levels 3
Number of clamp positions per level 2
Internally connected stages No
Connectable conductor cross section solid-core, mm² 4…4
Connectable conductor cross section fine-strand with cable end sleeve, mm² 2.5…2.5
With shock protection Yes
Rated current In, A 24
Explosion-tested version 'Ex e' No
Inflammability class of insulation material according to with UL94 V0
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Material insulation body Thermoplastic
Connection position Above
Product type Terminal block
Clamp type Push-in
Cross-section 2,5 mm²
Width 5,2 mm
Q'ty of poles 6
Number of levels 3
Seria Name STEP
DIN- rail mounting terminal blo -"Quadro"
