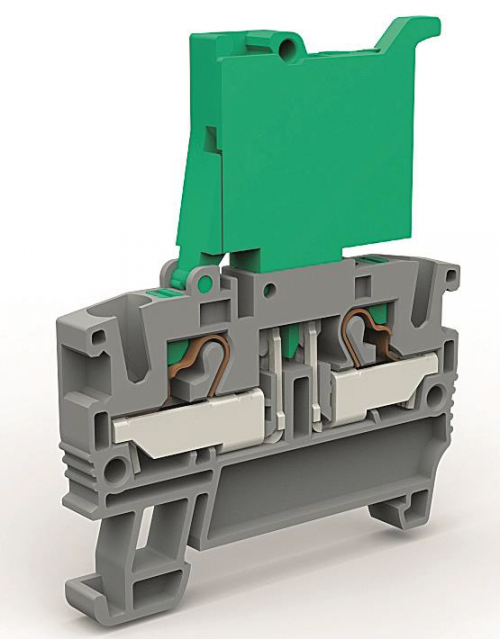

FUSE-HOLDER TERMINAL BLOCK

Code: ZEFF400GR
 FUSE-HOLDER TERMINAL BLOCK
  • To ask a question
Mounting method DIN rail (top hat rail) 35 mm
Colour Grey
Rated voltage, V 630
Length, mm 55.2
Operating temperature, °C -60…130
Width/grid dimension, mm 6.2
Height at lowest possible mounting height, mm 67.1
Closing plate required Yes
Type of fuse insert G-fuse 5x20 mm
Type of fuse holder Swivelling
Type of indication element for defect indication LED
Supply voltage for defect-indication, V 630
Number of levels 1
Voltage type for defect indication AC/DC
Connectable conductor cross section solid-core, mm² 6
Connectable conductor cross section fine-strand with cable end sleeve, mm² 4
Connectable conductor cross section fine-strand without cable end sleeve, mm² 4
Connectable conductor cross section multi-wired, mm² 4
Rated current In, A 6.3
Inflammability class of insulation material according to with UL94 V0
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Material insulation body Thermoplastic
Connection position Above
Product type Terminal block
Clamp type Push-in
Cross-section 4 mm²
Width 6,2 mm
Q'ty of poles 2
Number of levels 1
Knife disconnect Disconnector
Drawings
Seria Name STEP
DIN- rail mounting terminal blo -"Quadro"
