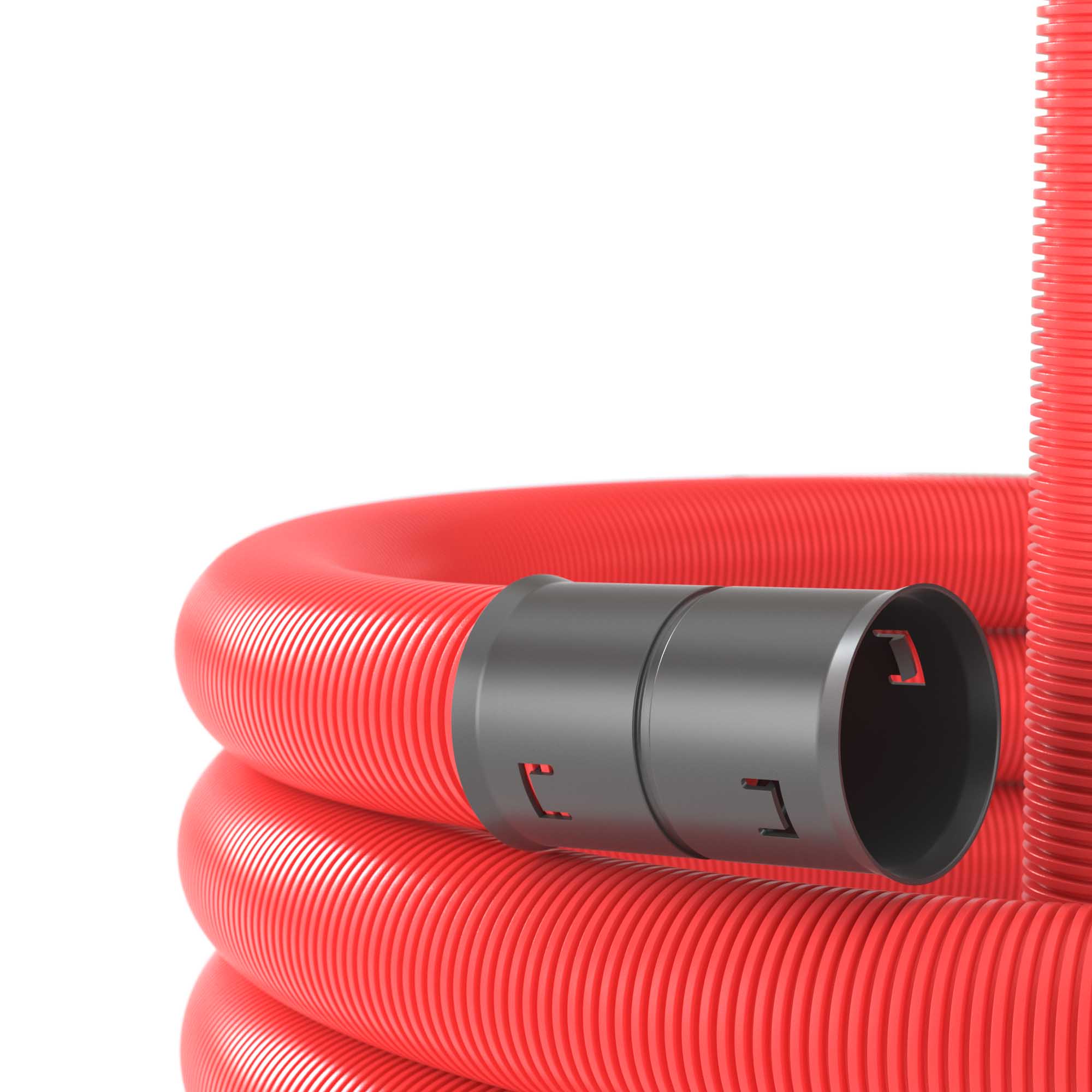

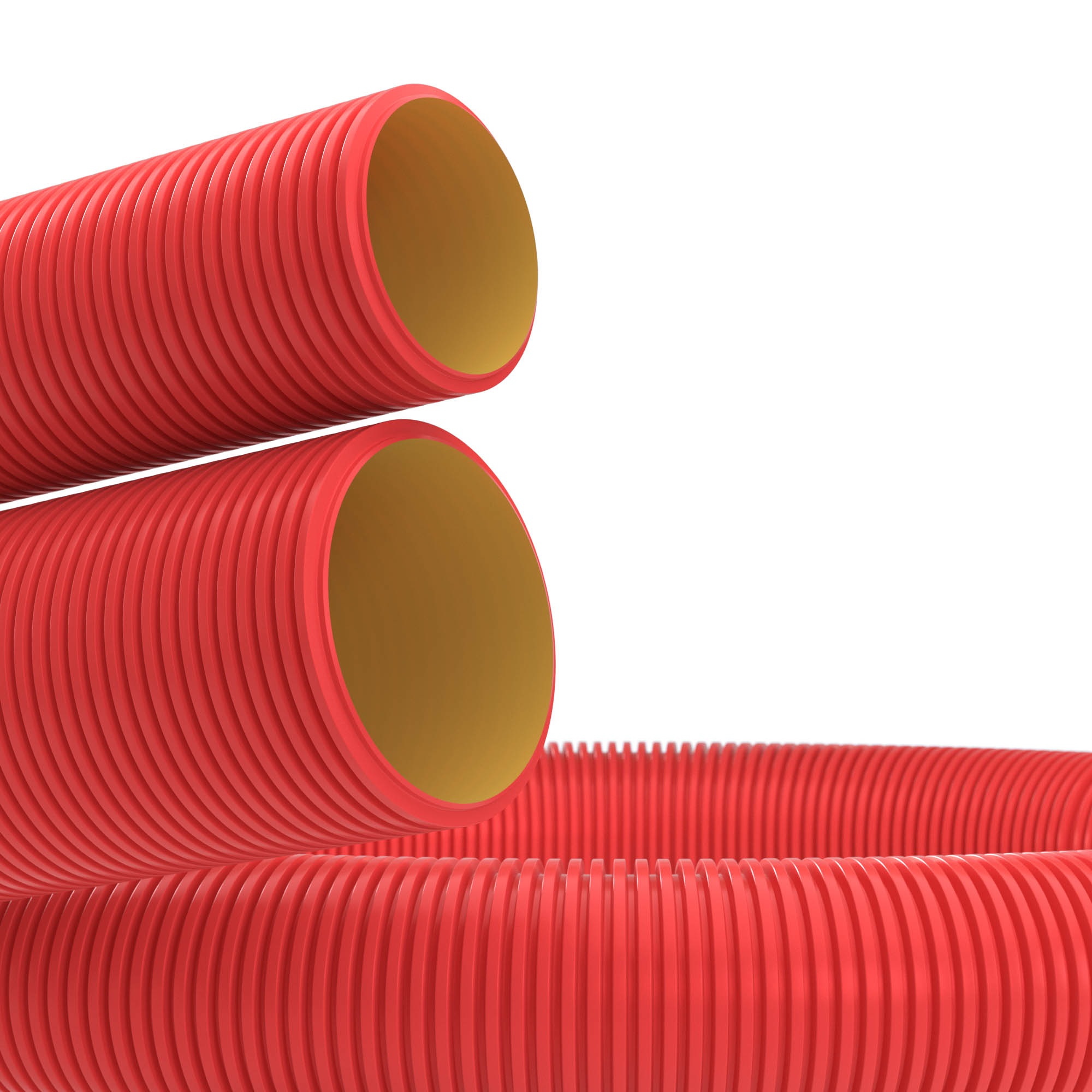

Double-wall tube HDPE flex. for cabling system ? 75 mm, SN 10, 450N, with pull, 72 m in coil, red color
Code: 12197572
Double-wall tube HDPE flex. for cabling system ? 75 mm, SN 10, 450N, with pull, 72 m in coil, red color
Code: 12197572
| Colour | Red |
| Model | Pliable |
| Outer diameter, mm | 75 |
| Inner diameter, mm | 62.5 |
| Surface protection | Untreated |
| Material quality | Polyethylene (PE) |
| Shape | Outer side ribbed, inner side plain |
| Material | Plastic |
| Transparent | Yes |
| Surface polished | No |
| Product type | Double-walled pipes |
| Ingress Protection rating, IP | IP44 (IP55) |
| Ring stiffness | 10 kPa |
| Compression resistance | 500 N |
| Complete set of broaching | Yes |
| Packing type | Coil |
| Packing standards | 72 m |
