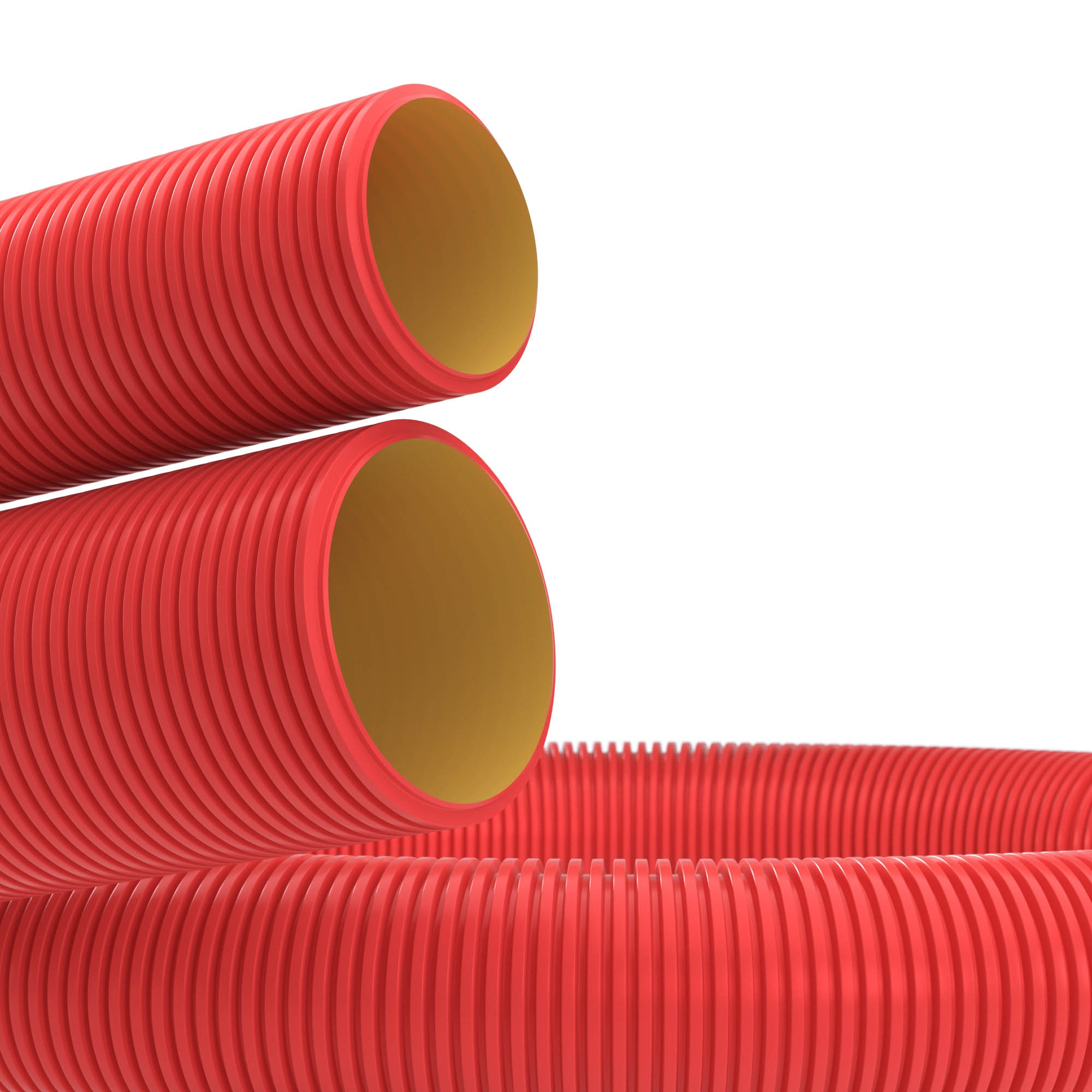

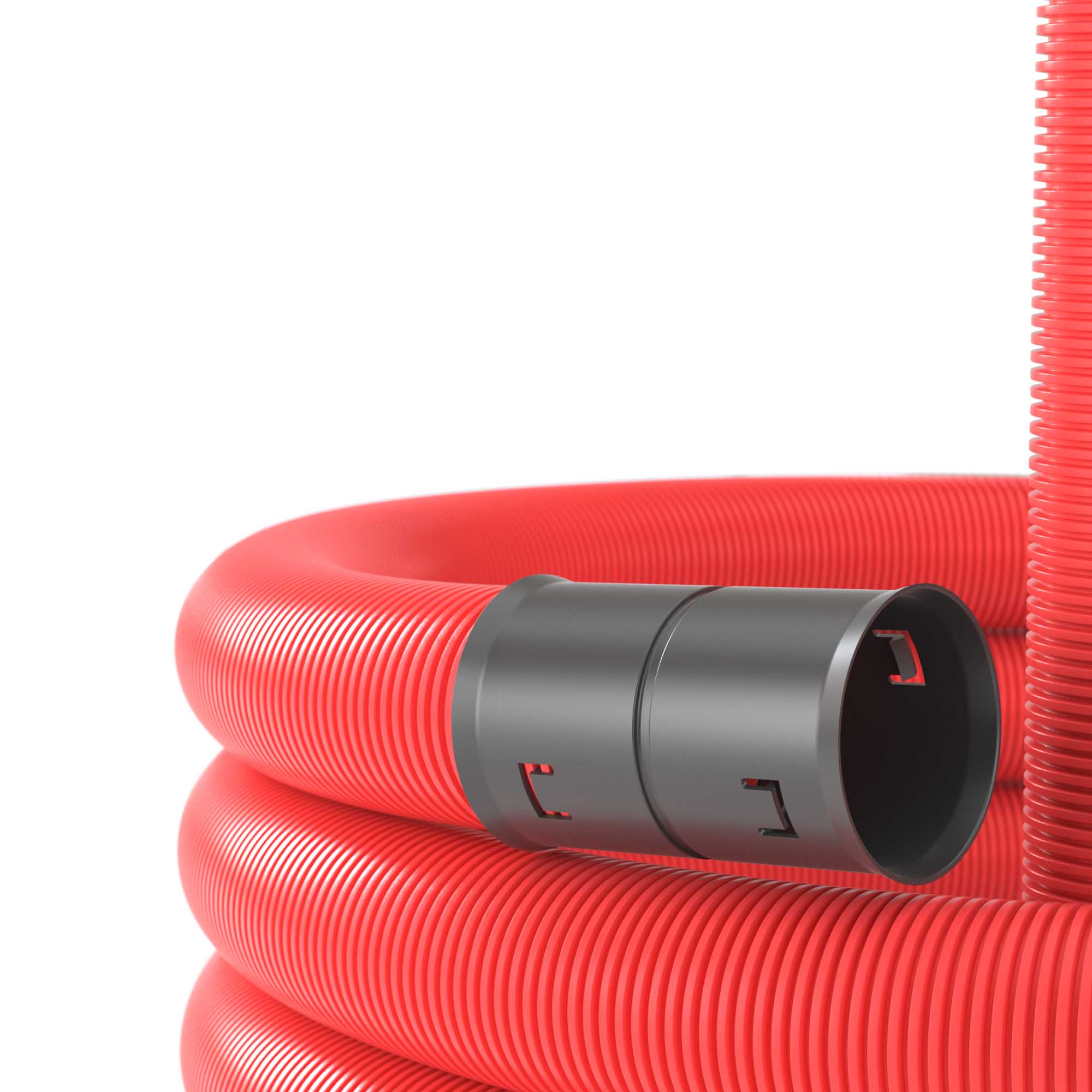

Double-wall tube HDPE flex. for cabling system ? 160 mm, SN 6, 450N, without pull, 50 m in coil, red color

Code: 120916
Colour Red
Model Pliable
Outer diameter, mm 160
Inner diameter, mm 137
Surface protection Untreated
Material quality Polyethylene
-- No
Shape Outer side ribbed, inner side plain
Color gray
Material Polyethylene
Length, mm 50000
Temperature of mounting, °C -25°С ... +90°С
Ingress Protection rating, IP IP44 (IP55, IP67)
Temperature of operation, °C from -55°С to +90°С
Cord for wires No
Radius of bending (min) , mm 1280
