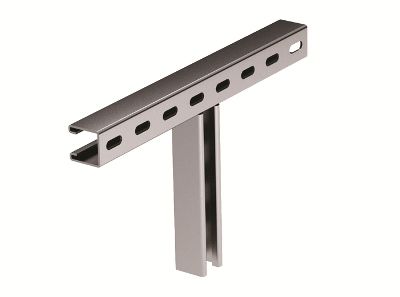

T-shaped attachment to a vertical I-beam, 200 mm, INOX 304
Code: IBMH3020C
T-shaped attachment to a vertical I-beam, 200 mm, INOX 304
Code: IBMH3020C

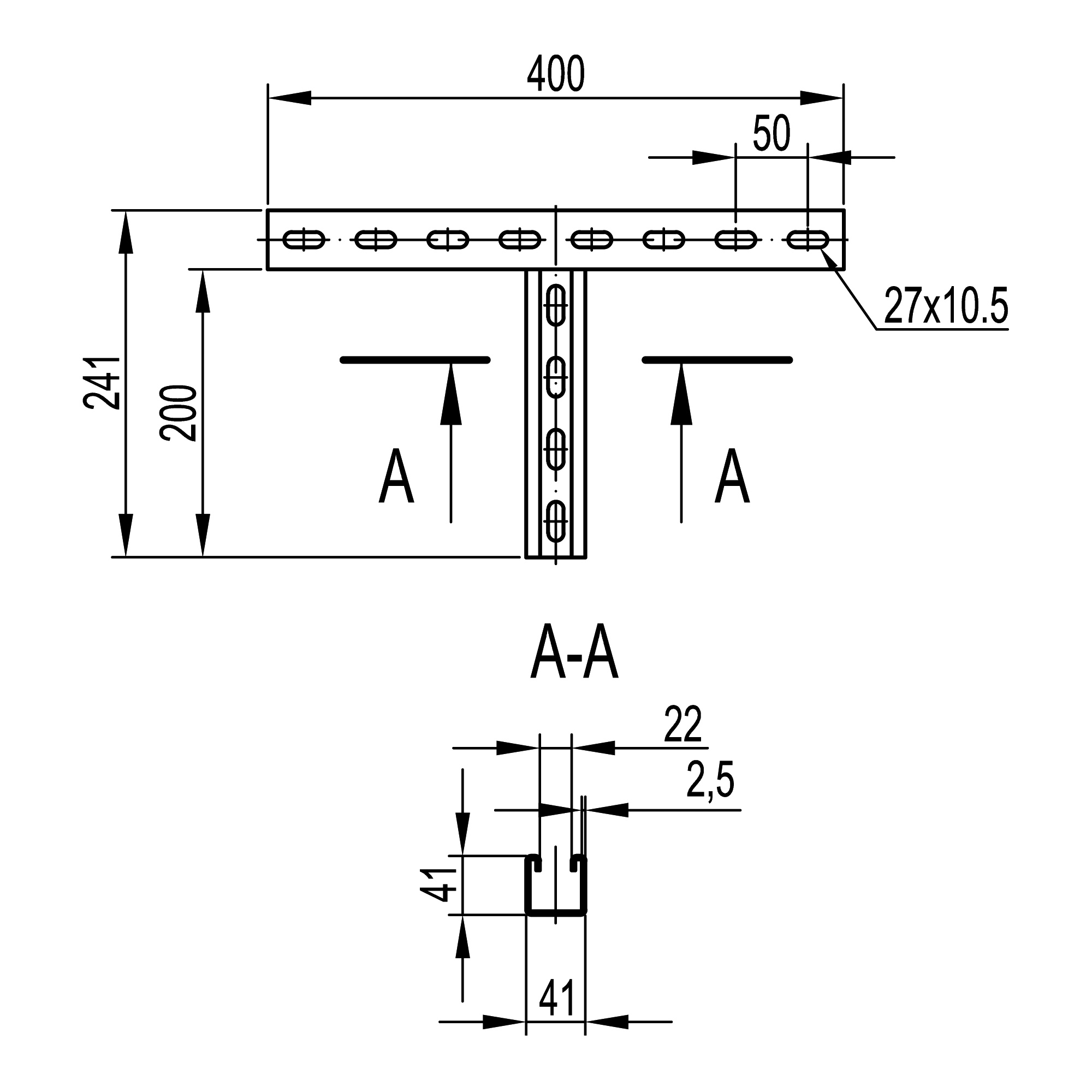

| Model | Singular profile |
| Height, mm | 241 |
| Material thickness, mm | 2.5 |
| Material quality | Stainless steel |
| Length, mm | 400 |
| Material | Steel |
| Load bearing capacity, kN | 2450 |
| Type of perforation | 2 sides punched |
| Profile shape | T-profile |
| Hole width, mm | 10.5 |
| Surface protection | Bare |
| Colour | Light grey |
| Suitable for circuit integrity | Yes |
| Product type | Fittings |
| Material | Stainless steel AISI 304 |
| Load baering capacity | 250 Kg |
| Length | 400 mm |
| Thickness | 2.5 mm |
