Tube PP flexible corrugated, Ø 50 mm, heavy version without pull, 15 m,blue color
Code:
10550
Code:
10550
| Colour | Blue |

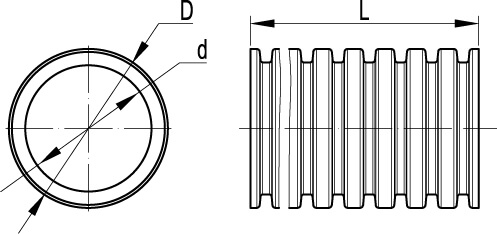

| Outer diameter, mm | 48.9 |
| Inner diameter, mm | 39.5 |
| Compressive strength, N | 320 |
| Operational temperature, °C | -40...105 |
| Bending radius, static, mm | 150 |
| Flame accelerating | No |
| Material | Polypropylene (PP) |
| Tensile strength, N | 200 |
| Nominal diameter, mm | 50 |
| Nominal size in inch | 2 inch |
| Degree of protection (IP) | IP55 |
| Bending strength | Flexible |
| Sheathing material | Not sheathed |
| UV resistant | No |
| With draw wire | No |
| Length | 15 m |
| 8 диаметров мм | 150 mm |
| -5°С ... +60°С | -25°С ... +60°С |
| Ingress Protection rating, IP | IP55 |
| от -25°С до +60°С | from -40°С to +105°С |
| Shock resistance, J | >1 |
| Cord for wires | No |
| Fire protection | It is not spread combustion (GOST R 53313-2009) |
| Series | Heavy |
| ТУ 2248-012-47022248-2009 | Technical specifications 3491-010-47022248-2003 |
| 3 года | 2 years |
| 15 лет | 15 years |
| Product type | Tube PP flexible corrugated |
