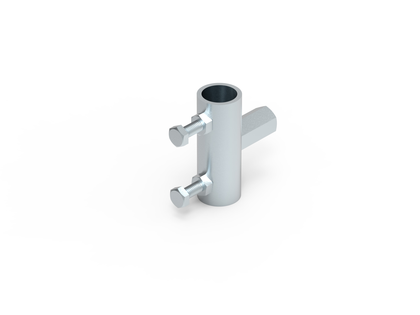

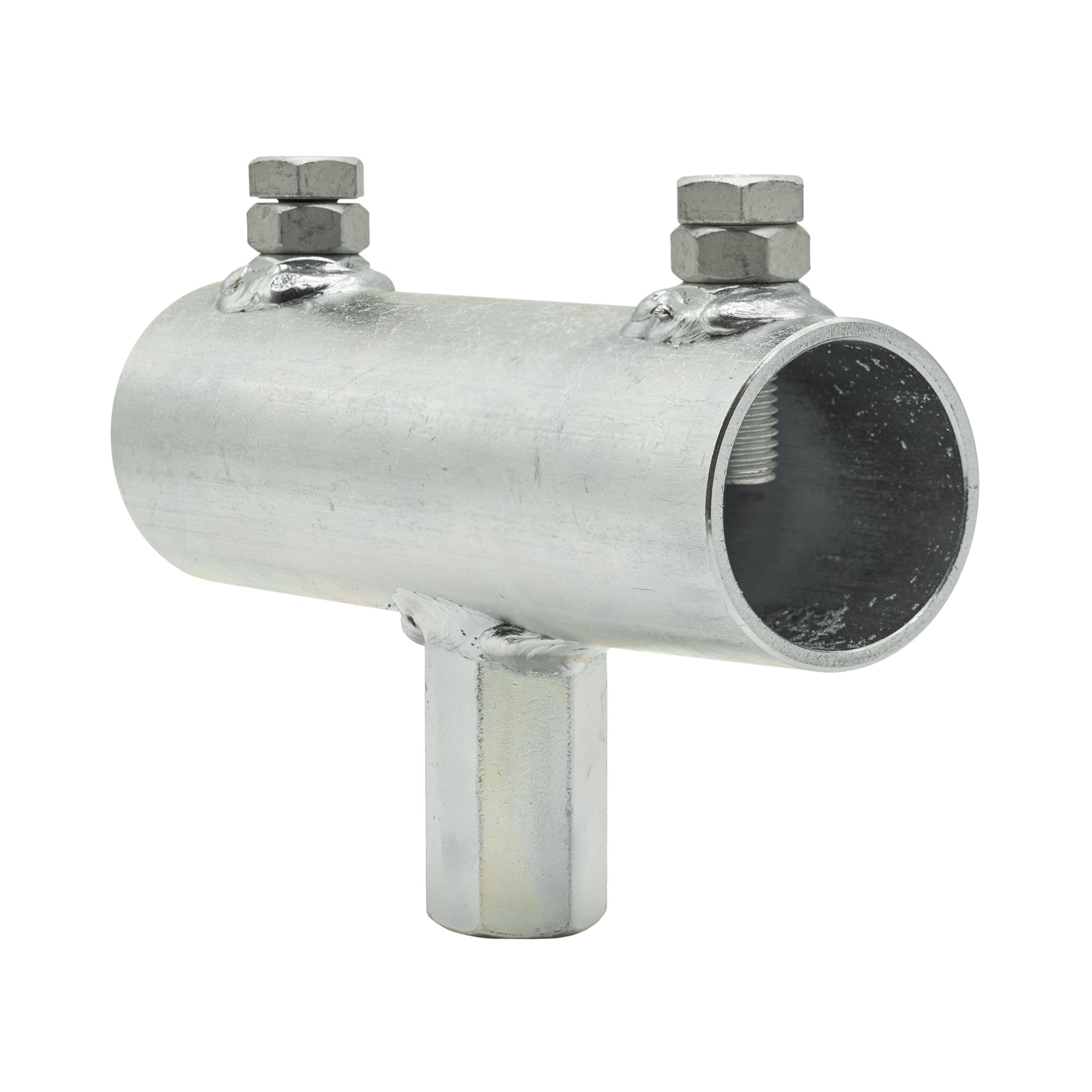

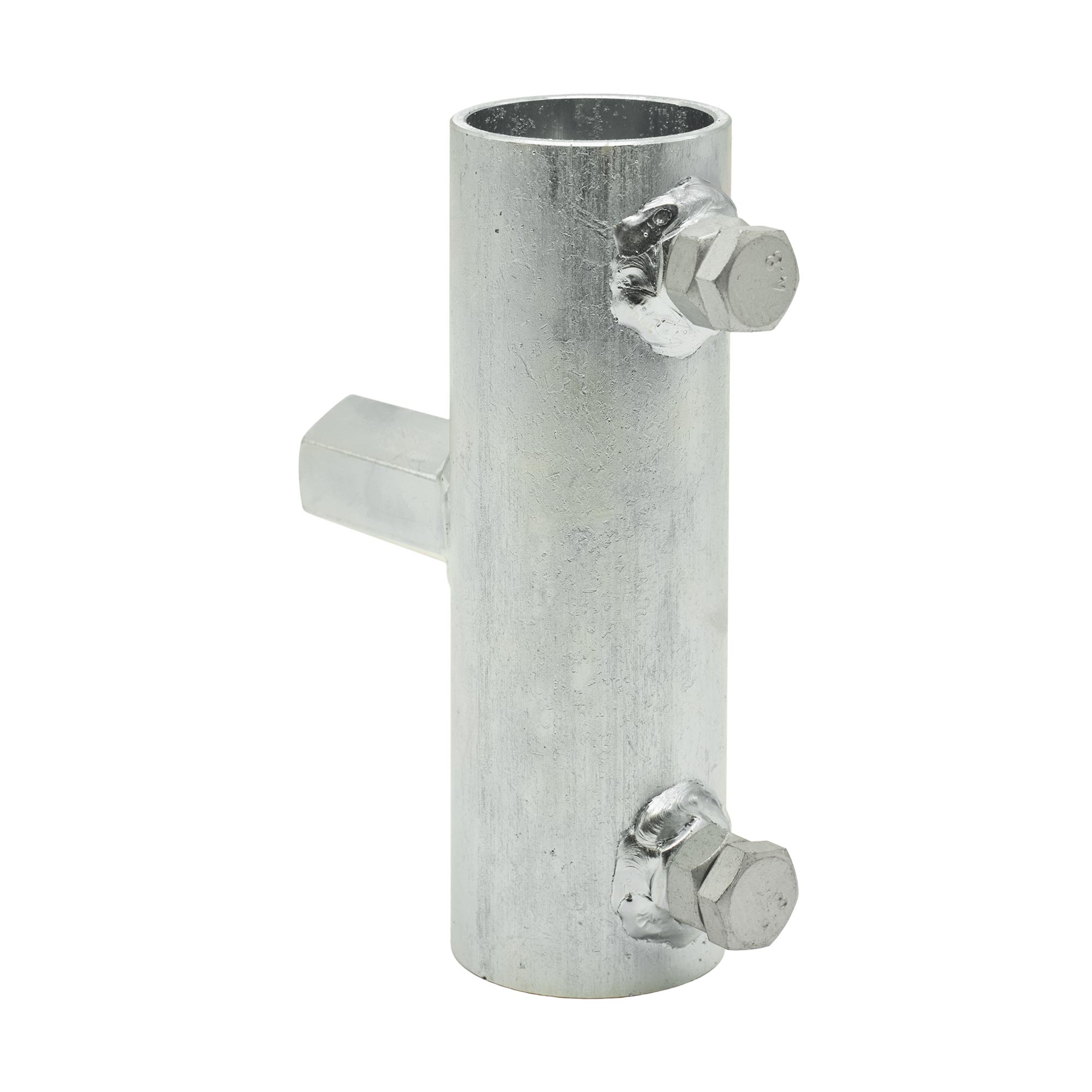

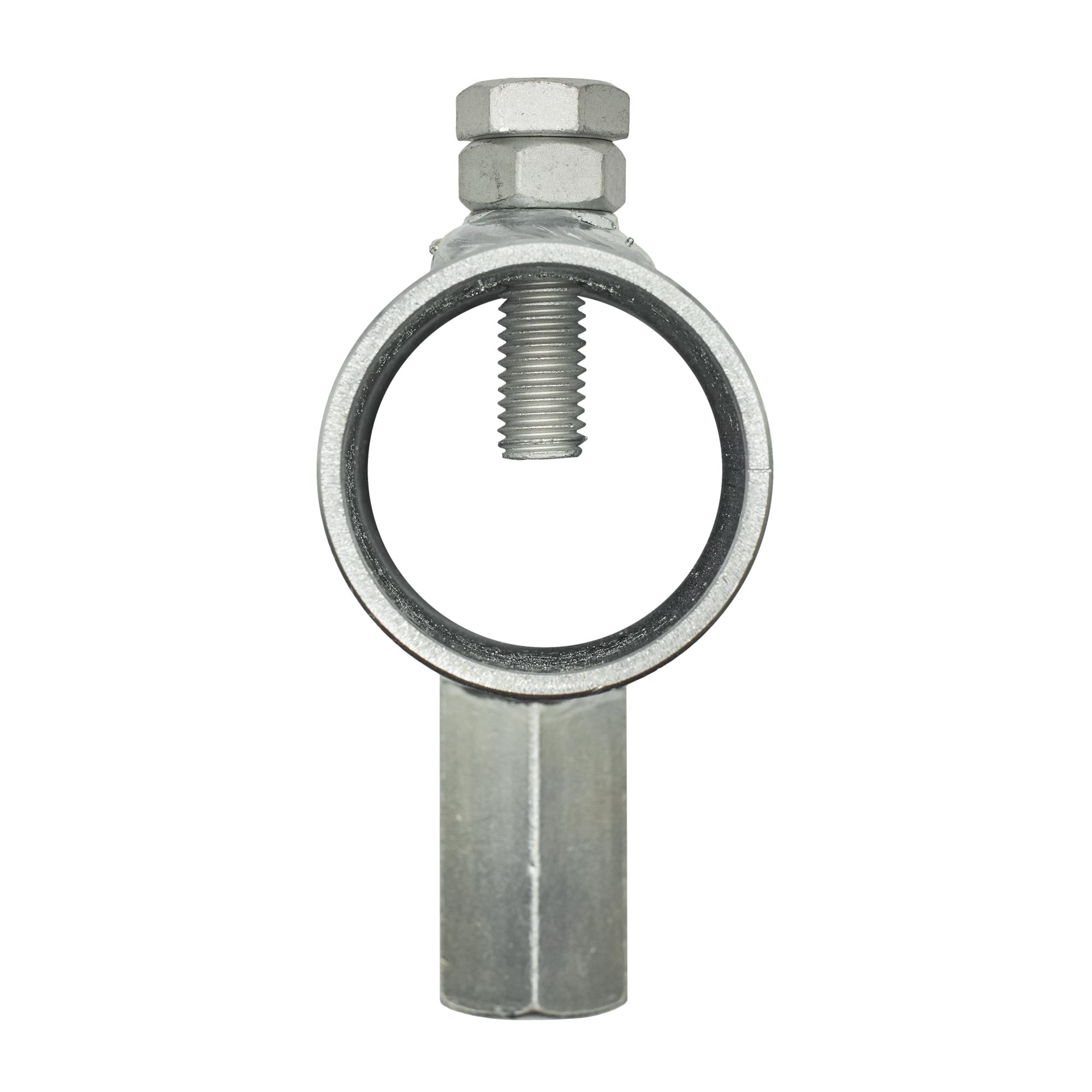

Surface-mounted holder for 3-7 meters insulated interception rods

Code: NK3105
Surface-mounted holder for 3-7 meters insulated interception rods
Surface-mounted holder for 3-7 meters insulated interception rods
Application area insulated interception rod holder
Material hot dip galvanized steel
Diameter, mm 42
Thread size metric (M..) 16
Mounting type bar With screw clamp
Mounting type holder Bore hole with M thread
Rod diameter, mm 42.5
Material of holder Zinc/steel galvanized
Certificates
Name Document
Exemption Letter for the system of Lightning protection and grounding
PDF
3.31 MB
