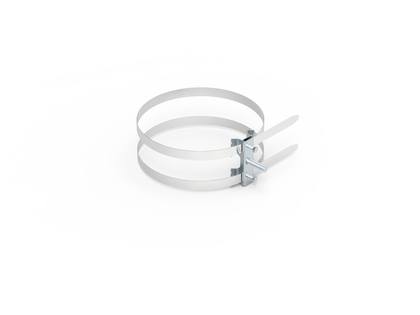

Twisted pipe clamp for insulated interception rod, D0-500 mm

Code: NK3104

Application area	insulated interception rod holder
Material	stainless steel

Clamping range,mm	0-500
Thread, mm	M16×50

Thread size metric (M..)	16
Material of holder	Stainless steel V2A

Mounting type bar	With screw clamp
Rod diameter, mm	50

Name	Document
Exemption Letter for the system of Lightning protection and grounding	PDF 3.31 MB
